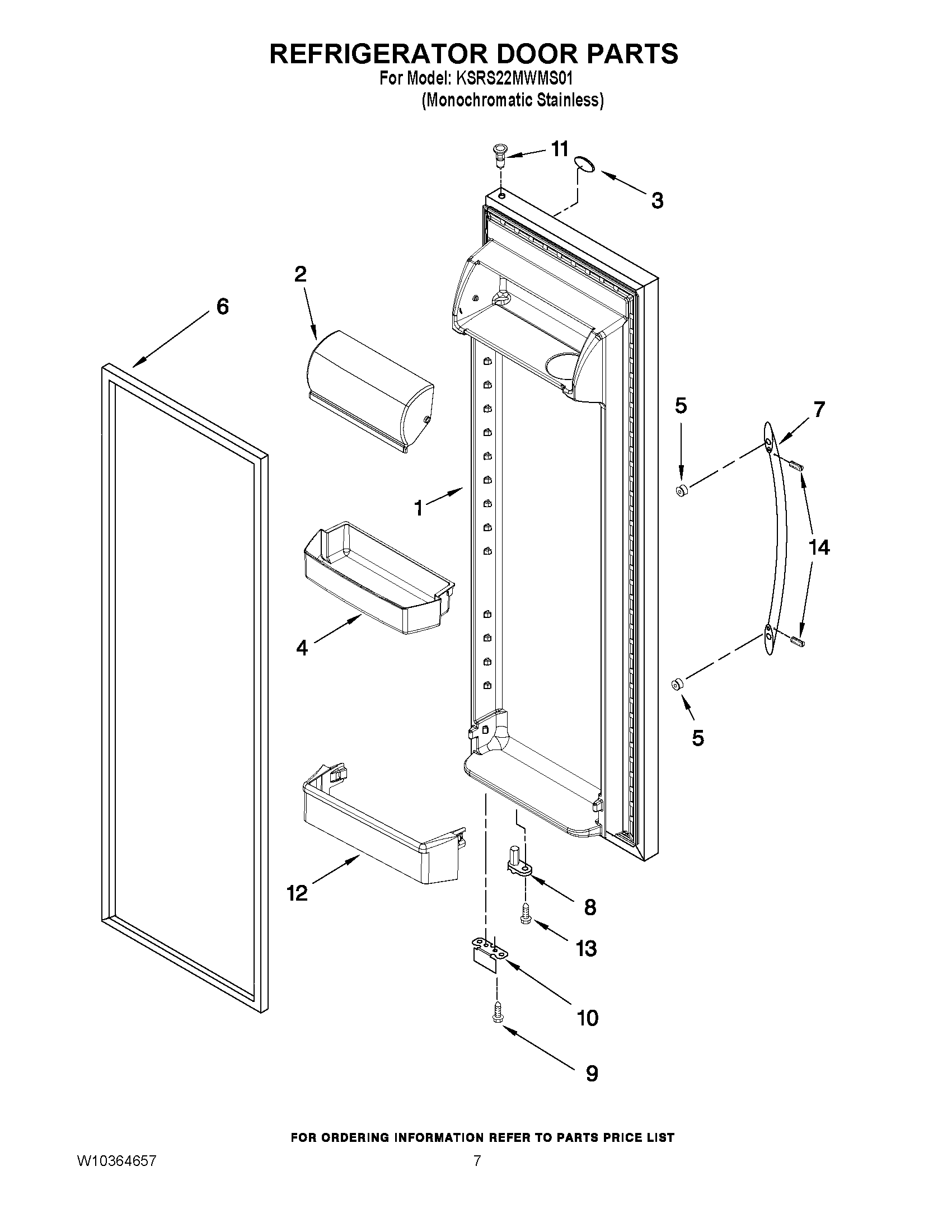

KSRS22MWMS01 05 – REFRIGERATOR DOOR PARTS

KSRS22MWMS01 05 – REFRIGERATOR DOOR PARTS

Written by

in

KSRS22MWMS01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS)
2Door, Compartment
3WPW10243391 Whirlpool Refrigerator Nameplate
4WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5WPW10170540 Whirlpool Screw
6W10136732 Whirlpool Refrigerator FIP Gasket
7Handle, Door (Stainless Steel)
8WP2182179 Whirlpool Cam Closer
9WP489483 Whirlpool Screw
10BRACKET, DOOR STOP (SILVER)
11WP2182181 Whirlpool Refrigerator Thimble
12WP2309941 Whirlpool Refrigerator Door Bar Trim
13WP3400012 Whirlpool Refrigerator Screw
14SCREW
