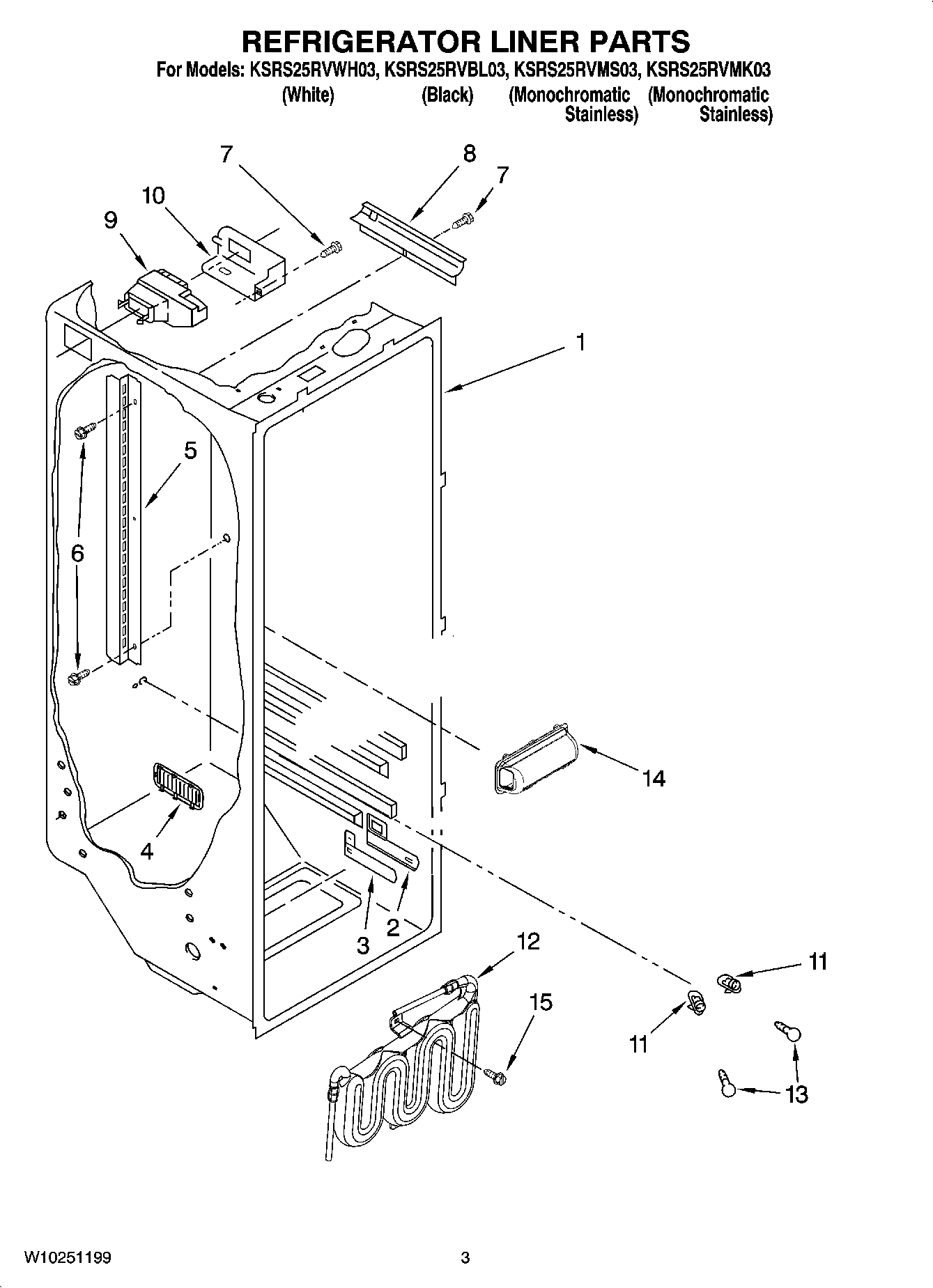

KSRS25RVMS03 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Shelf Ladder
6	WP489478 Whirlpool Refrigerator Screw
7	W10759522 Whirlpool Screw
8	Cover, Conduit
9	Air Diffuser Assembly
10	Cover, Air Diffuser
11	4387478 Whirlpool Refrigerator Light Socket
12	RESERVOIR
13	RANGE ONLY 40W 120V APPL BULB
14	W11239891 Whirlpool Refrigerator Light Lens
15	W10141518 Whirlpool Refrigerator Screw
