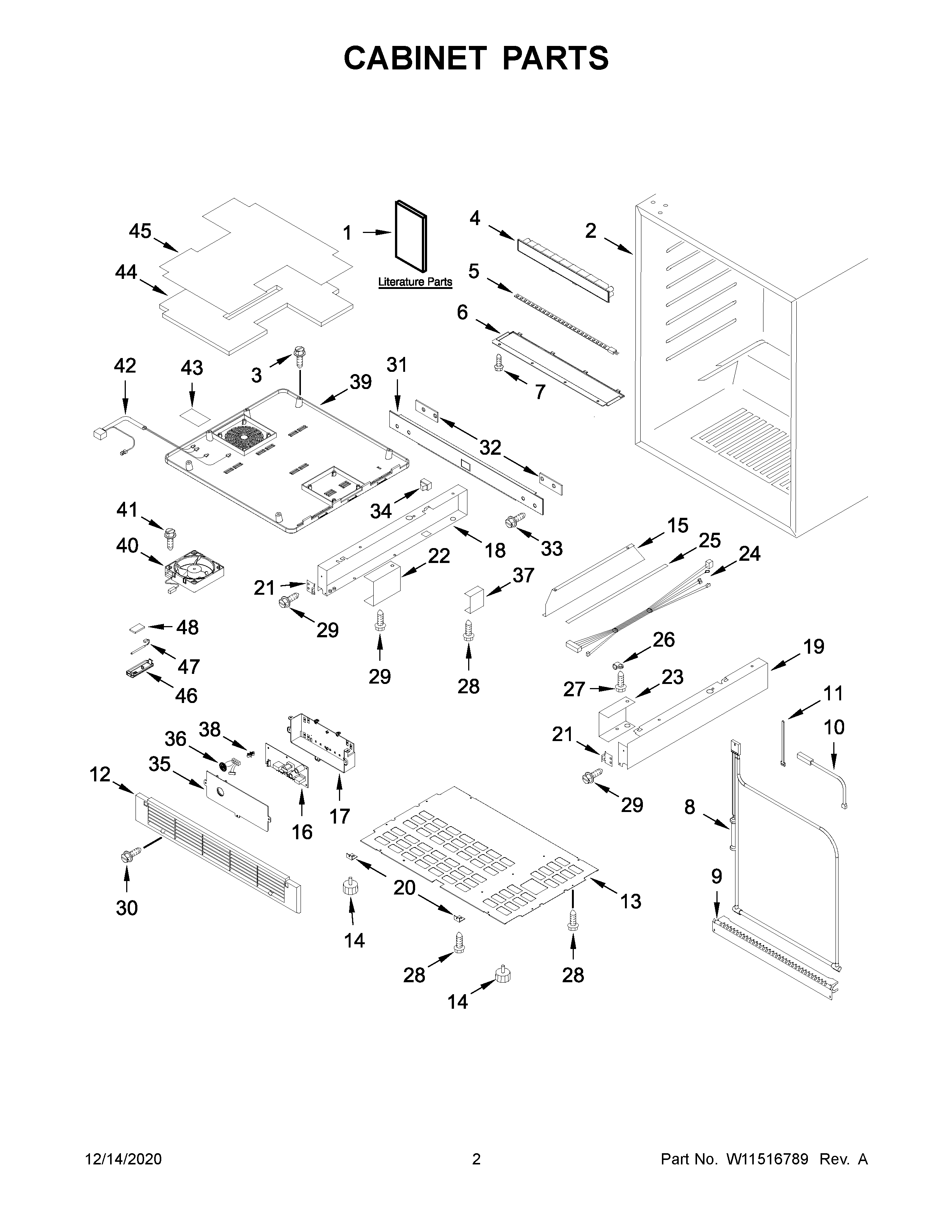

KURL104ESB01 02 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE USE & CARE GUIDE
1A	USE & CARE GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	SCREW
4	WPW10797321-includeCORE Whirlpool WPW10797321 Refrigerator Electronic Control Board + Core
5	W11441723 Whirlpool Refrigerator Light
6	LENS, LIGHT
7	W10204808 Whirlpool Refrigerator Screw
8	W10292475 Whirlpool Refrigerator Defrost Bimetal
9	4344747 Whirlpool Refrigerator Shield
10	W11573590 Whirlpool Refrigerator Thermistor
11	4344829 Whirlpool Tie Wire
12	W10204635 Whirlpool Refrigerator Grille
13	W10772863 Whirlpool Refrigerator Cabinet Base
14	W11106296 Whirlpool Refrigerator Leveler
15	W10778959 Whirlpool Cabinet Base
16	W11241069 Whirlpool Refrigerator Control Box
17	W10772866 Whirlpool Refrigerator Control Box
18	W10797388 Whirlpool Refrigerator Support
19	W10797389 Whirlpool Refrigerator Support
20	W10239388 Whirlpool Brace
21	W10204640 Whirlpool Refrigerator Clip
22	4344820 Whirlpool Refrigerator Support
23	4344821 Whirlpool Refrigerator Support
24	W10772870 Whirlpool Refrigerator Wire Harness
25	4344823 Whirlpool Refrigerator Seal
26	CABLE CLAMP
27	SCREW
28	4344826 Whirlpool Refrigerator Screw
29	W10780355 Whirlpool Refrigerator Screw
30	W10319184 Whirlpool Refrigerator Screw
31	FRAME FRONT, BOTTOM
32	SPACER, FRAME FRONT
33	W10780349 Whirlpool Refrigerator Screw
34	W10721454 Whirlpool Refrigerator Switch
35	W10788698 Whirlpool Refrigerator Cover
36	W10788693 Whirlpool Refrigerator Speaker
37	BRACKET, PCB
38	W10204659 Whirlpool Refrigerator Spacer
39	W10797392 Whirlpool Bracket
40	W10854409 Whirlpool Refrigerator Evaporator Motor
41	W10205061 Whirlpool Screw Assembly
42	W10797393 Whirlpool Refrigerator Wire Harness
43	W10205062 Whirlpool Wire Cover
44	INSULATION, FAN COVER
45	COVER
46	SENSOR CASE
47	W11238391 Whirlpool Refrigerator Thermistor
48	W10204948 Whirlpool Refrigerator Control Box
