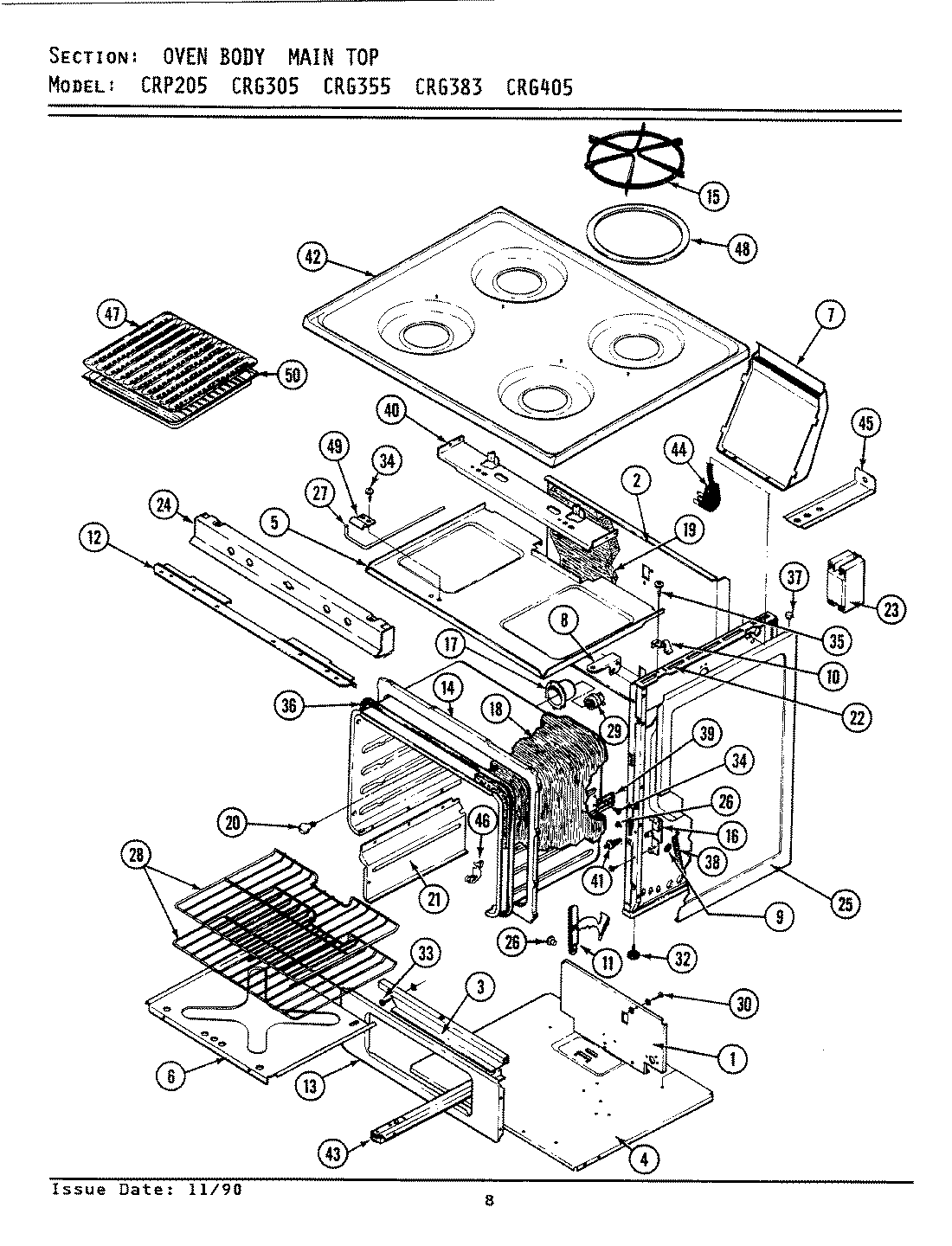

LCRG305 05 – OVEN BODY/MAIN TOP
Written by
in
LCRG305 05 – OVEN BODY/MAIN TOP
Products
Position
Product
1
MAY 4002F078-45
1
MAY 4002F124-45
1
MAY 3830F006-45
1
MAY 4005F304-51
2
MAY 4002F094-80
3
MAY 3601F161-80
3
MAY 3601W124-19
3
MAY 3601W124-23
4
MAY 4011F149-80
5
MAY 4011F095-80
6
MAY 2205F020-21
6
MAY 2205F012-23K
7
MAY 4006W026-80
8
MAY 3801F049-34
8
MAY 3801F047-34
9
MAY 7112P019-60
10
MAY 7112P073-60
11
MAY 3420A033-34
12
MAY 4012F019-80
13
MAY 2201F034-23
14
MAY 2201F060-19
14
WP74003976 Whirlpool Screw
14
MAY 2201F060-23
15
MAY 2003W005-00
16
MAY 8016P008-60
16
MAY 3418A029-34
16
MAY 3418A030-34
17
MAY 4001F016-23
17
MAY 4001F016-19
18
MAY 7002P038-60
19
MAY 7002P026-60
20
MAY 7407P026-60
21
MAY 4009F045-45
22
MAY 4009W049-80
22
MAY 4009W040-80
23
MAY 7431P006-60
24
MAY 2616F010-84
24
MAY 7728P059-60
25
MAY 2618F073-74
25
MAY 2618F052-74
27
MAY 3807F340-34
28
MAY 7801P032-60
29
MAY 4005F088-80
29
MAY 7408P002-60
31
WP4159193 Whirlpool Screw
32
MAY Y7101P25460
33
MAY 7101P058-60
36
MAY 7212P001-60
37
MAY 8003P011-60
37
MAY 8010P048-60
38
MAY 7803P055-60
39
MAY 3807F205-45
40
MAY 3807F347-51
41
MAY 7403P105-60
42
MAY 2001F040-84
43
MAY 7101P061-60
43
MAY 3404A013-51
43
MAY 3404A014-51
44
MAY 7402P014-60
45
MAY 3801F218-51
45
MAY 7101P289-60
45
MAY 3801F198-51
46
WP7112P004-60 Whirlpool Thermal Clip
47
MAY 3413F002-23
48
MAY 7720P115-60
49
MAY 3805F002-34
50
MAY 3401F004-23
←
