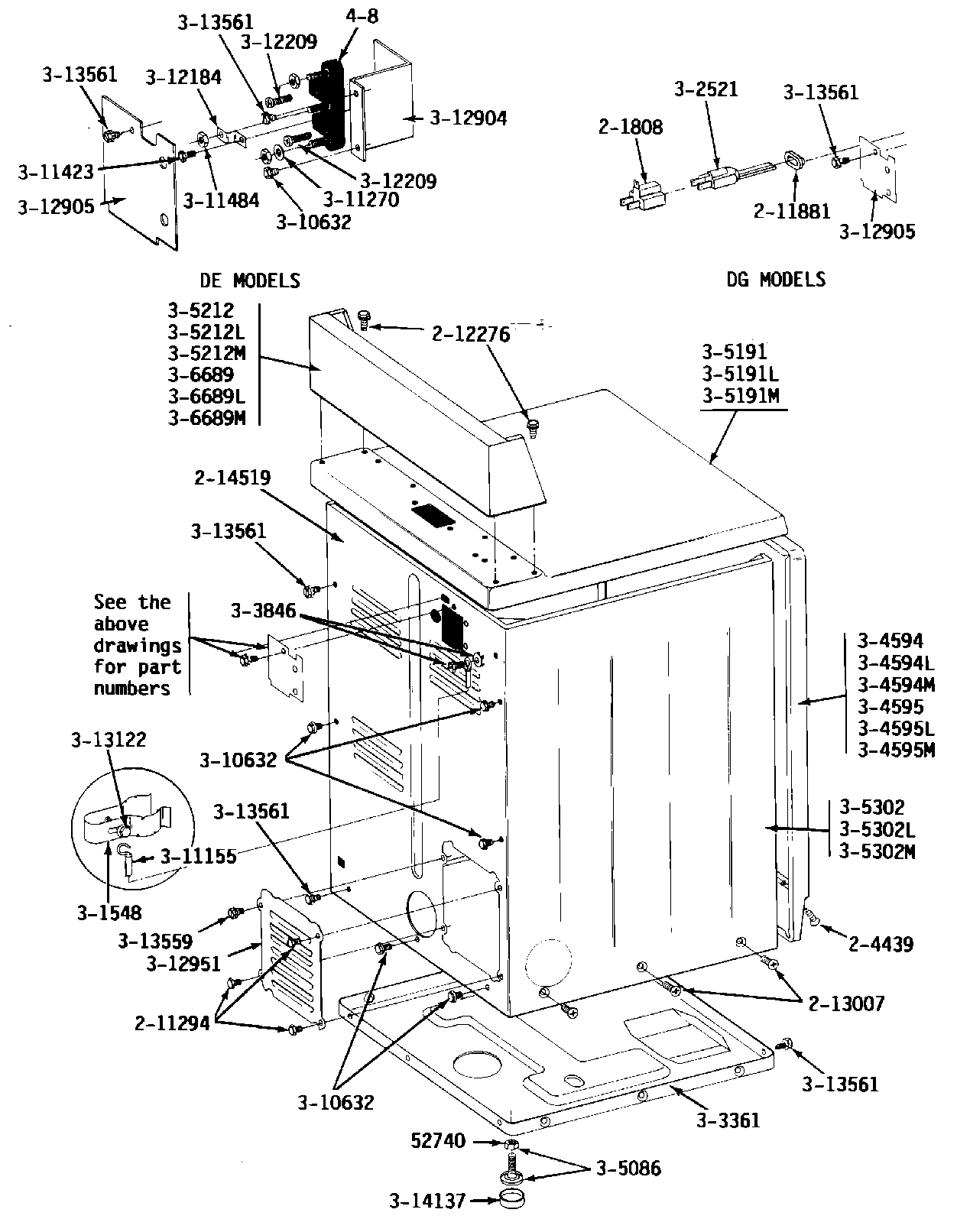

LDG24CM 03 – REAR VIEW

Products

PositionProduct
001WP62739 Whirlpool Nut
002MAY Y201808
003SCREW & FSTNER ASSY (FT. PNL)
004WP90767 Whirlpool Screw
005GROMMET
006MAY 212276
007213007 Whirlpool Screw #12
008INSTRUCTION LABEL
009MAY 301548
010MAY 302521
011MAY Y303361
016W10176519 Whirlpool Leveling Feet
018MAY Y305191
029DOWEL PIN FOR HANDLE
031WP311155 Whirlpool Wire Assembly
038MAY Y312905
039MAY Y312951
040MAY 313122
041MAY Y313559
043WPY314137 Whirlpool Rubber Foot
