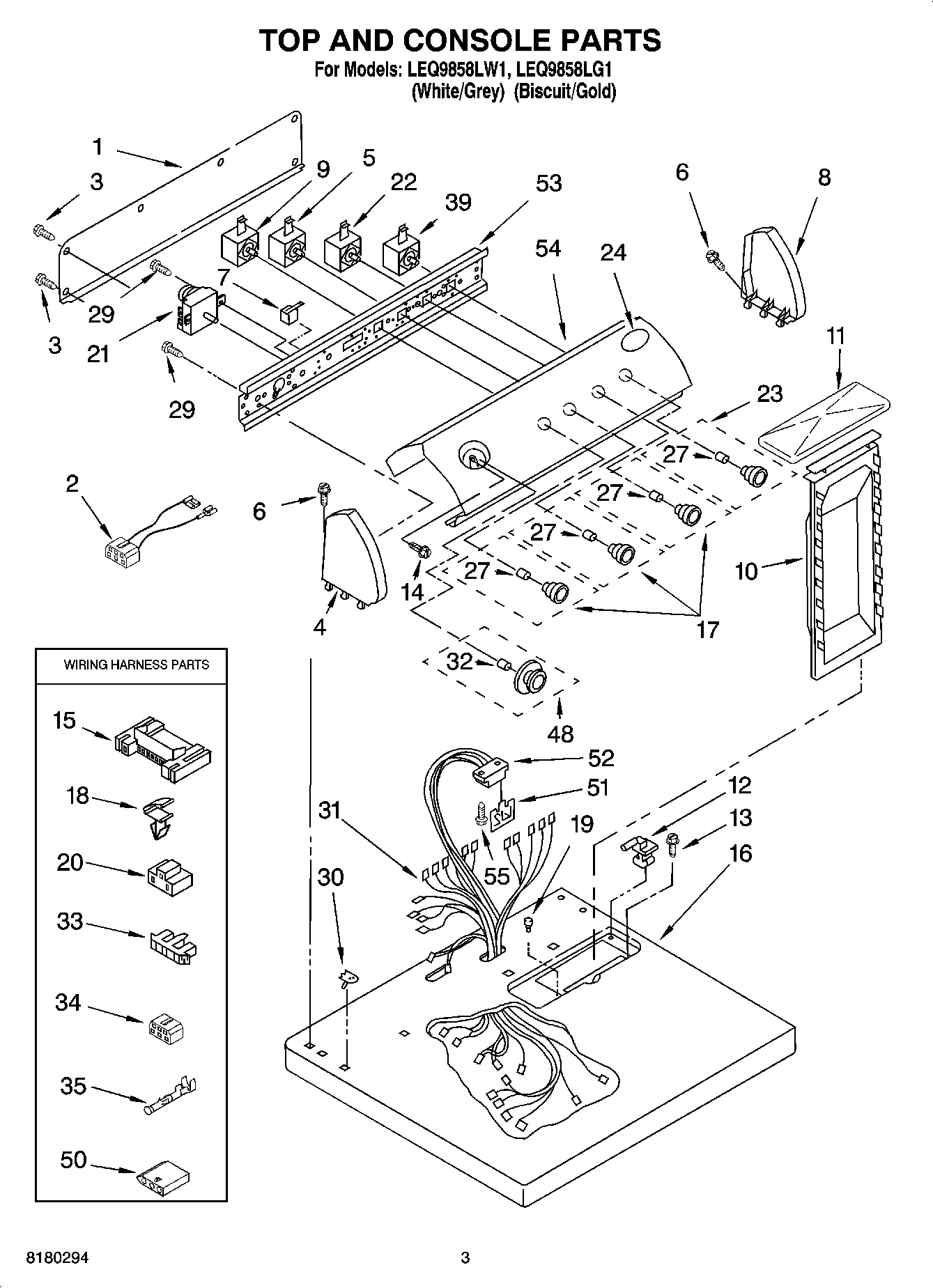

LEQ9858LW1 02 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

LEQ9858LW1 02 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Written by

in

LEQ9858LW1 02 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23401695 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53405154 Whirlpool Primary Switch
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
8WPL 8271362
98528330 Whirlpool Temperature Control Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17KNOB
17WPL 8538958
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
203401144 Whirlpool Connector
21WP3406725 Whirlpool Timer
223405152 Whirlpool Switch Assembly
23Knob, Push-To-Start (Biscuit)
23Knob, Push-To-Start
24Medallion
27WP8536939 Whirlpool Spring Clip
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318576506 Whirlpool Wire Harness
32WP688805 Whirlpool Spring Clip
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398094 Whirlpool Push To Start Switch
48Timer Knob Assembly (Biscuit)
48WP8557455 Whirlpool Knob Timer
503936144 Whirlpool Connector
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54WPL 8532631
54WPL 8532632
55350938 Whirlpool Spray Gun
5572017 Whirlpool Appliance Touch-Up Paint White
55799344 Whirlpool Refrigerator Paint
55350930 Whirlpool White Spray Paint
55SCREW
554392899 Whirlpool Biscuit Touch-Up Paint
554392901 Whirlpool Biscuit Spray Paint
553406839 Whirlpool Drying Rack
554392065 Whirlpool Dryer Maintenance Kit
55W11224254 Whirlpool Test Kit
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
55WPL ARI117559A
