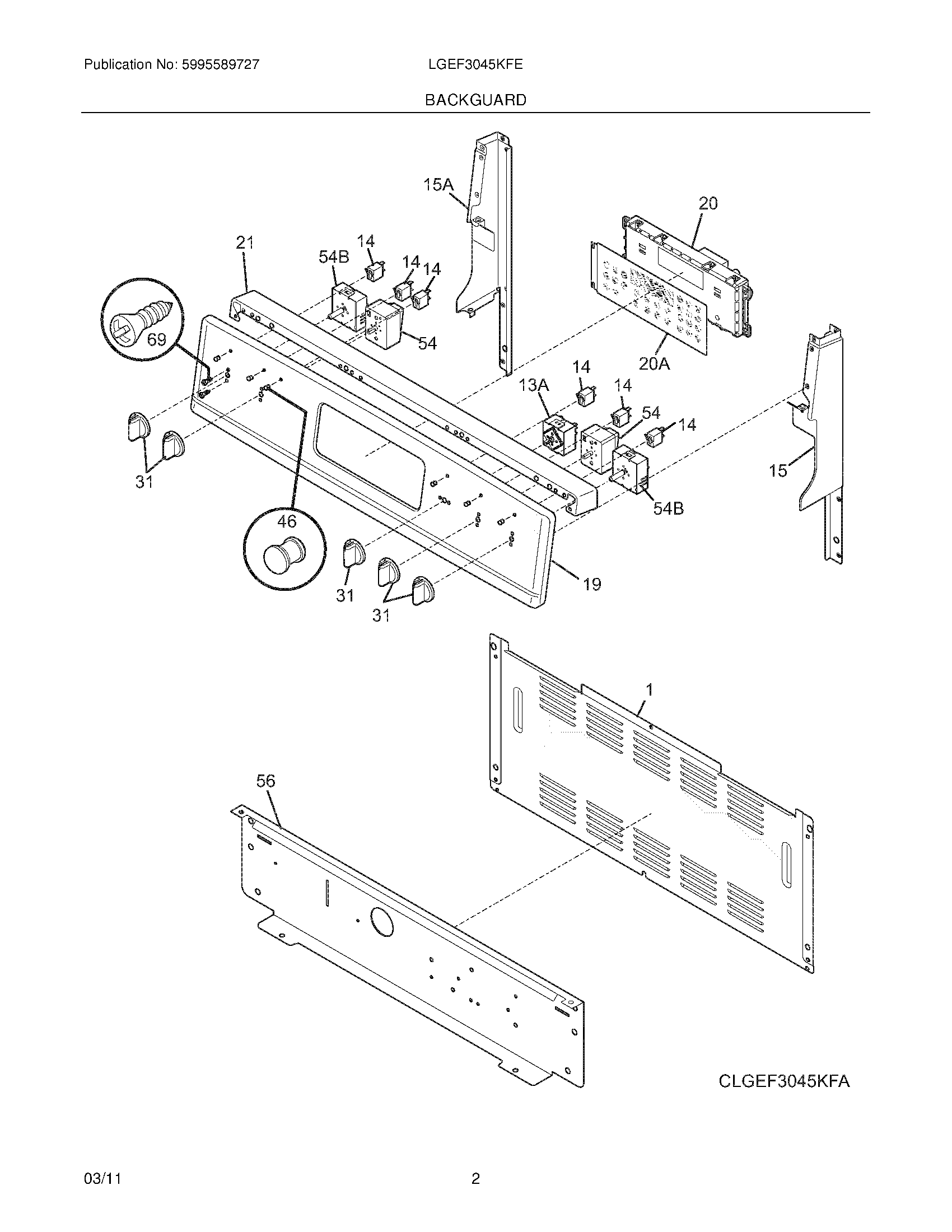

LGEF3045KFE 03 – BACKGUARD

LGEF3045KFE 03 – BACKGUARD

Written by

in

LGEF3045KFE 03 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1WCI 316557600
13A5304508926 Frigidaire Oven Temperature Control Switch
14316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15AWCI 316546703
15316546710 Frigidaire Oven Cap
19316572418 Frigidaire Oven Panel
20AOVERLAY
205304495520 Frigidaire Oven Timer Kit Range Control Board
21316546605 Frigidaire Oven Cap
31KNOB, CONTROL, STAINLESS, (5)
46316557300 Frigidaire Range Indicator Light Lens
54316436000 Frigidaire Oven Range Surface Element Switch
54B316238201 Frigidaire Oven Switch
56316234045 Frigidaire Oven Shield
695303288565 Frigidaire Screw
