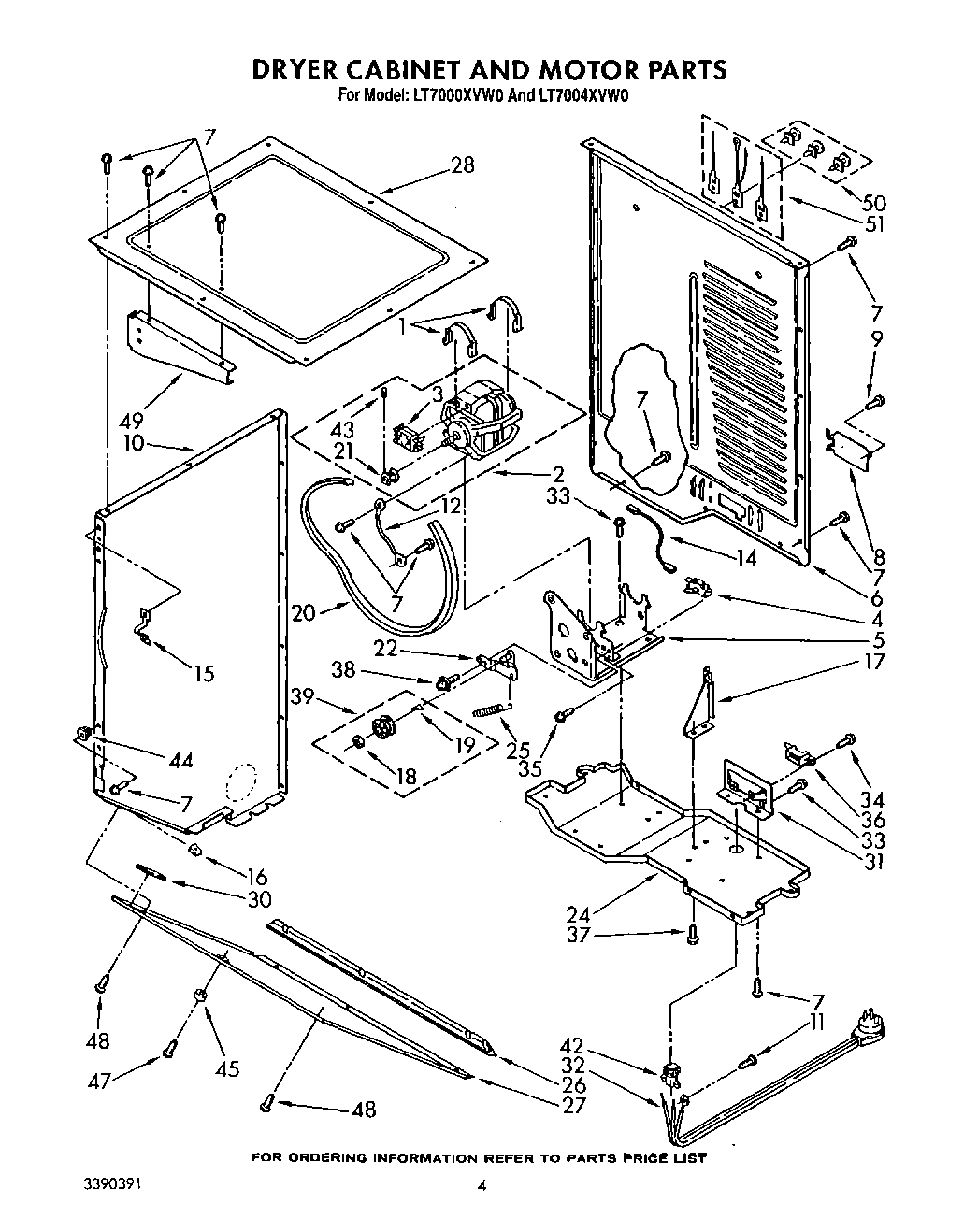

LT7004XVW0 04 – DRYER CABINET AND MOTOR

Products

Position	Product
1	WP660658 Whirlpool Clamp
3	279827 Whirlpool Dryer Drive Motor
4	WP3391902 Whirlpool Lid Switch
5	W11107903 Whirlpool Bracket
6	Panel, Rear
7	SCREW
8	279814 Whirlpool Cover
9	W10850756 Whirlpool Screw
10	Panel, Side (Almond (L.H.))
10	3389256 Whirlpool Panel
10	3389264 Whirlpool Panel Assembly
10	Panel, Side (Almond (R.H.))
12	WPL 3387376
14	Wire, Broken Belt Switch
15	3389231 Whirlpool Clip Front Panel
16	WP98234 Whirlpool Nut
17	3391639 Whirlpool Bracket Assembly
18	WPW10121334 Whirlpool Washer
19	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20	661570V Whirlpool Dryer Drum Belt
21	279811 Whirlpool Dryer Drive Motor
22	WPW10547294 Whirlpool Idler Pulley
24	Base, Dryer
25	WPW10446781 Whirlpool Spring
26	3389683 Whirlpool Cover Assembly
27	Panel, Transition (Almond)
27	3389272 Whirlpool Panel
28	Top, Dryer
30	3389682 Whirlpool Spacer
31	Bracket, Terminal Block
32	PT220L Whirlpool Dryer Power Cord
32	DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 Amp
35	WP3395530 Whirlpool Screw
36	279320 Whirlpool Dryer Rear Terminal Block Kit
37	WP3390631 Whirlpool Screw
38	WP3389420 Whirlpool Screw
39	279640 Whirlpool Dryer Idler Pulley Kit
42	687000 Whirlpool Connector
43	Screw, Set
44	WP692400 Whirlpool Nut
45	Bumper, Lid Stop (Almond)
45	WP3389431 Whirlpool Bumper Assembly
47	WP693304 Whirlpool Screw
48	WP308685 Whirlpool Microwave Screw
49	3390722 Whirlpool Shield Assembly
50	279393 Whirlpool Terminal Block Screw and Nut Kit
51	279318 Whirlpool Terminal
