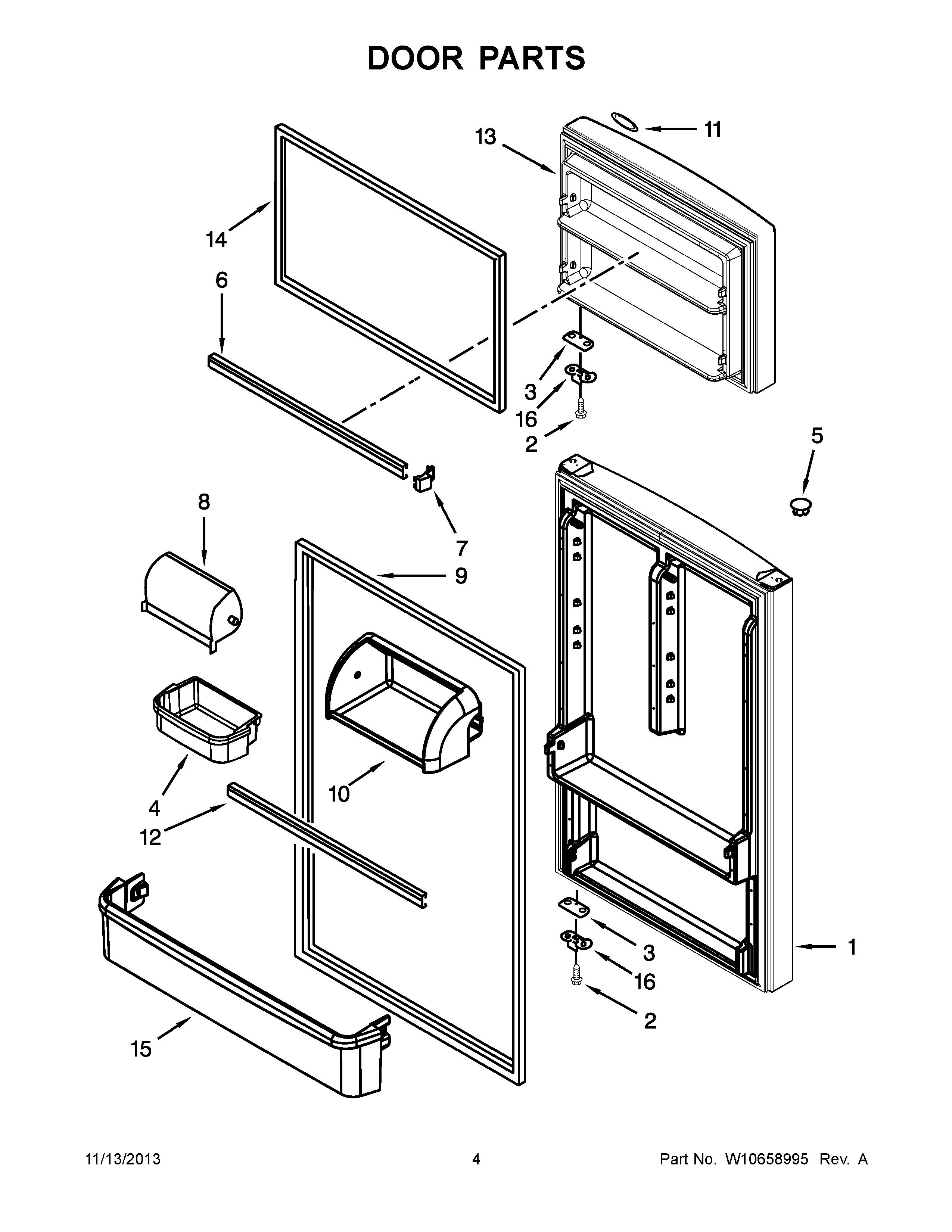

M8RXCGFXS03 03 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
1A	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK)
1B	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
2	MAY 8533904
3	Shim, Door Stop (White)
3A	Shim, Door Stop (Black)
4	BIN, DOOR
5A	Hole Plug (Black)
5	MAY 2212648
6	MAY 2266727
7	END CAP, TRIM
8	Door, Compartment
9	MAY 2264727
9A	GASKET, RC (BLACK)
10	MAY 2264477
11	Nameplate
12	MAY W10234241
13A	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
13B	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
14A	GASKET, FC (BLACK)
14	MAY 2264726
15	MAY W10468562
16	MAY 2189202
