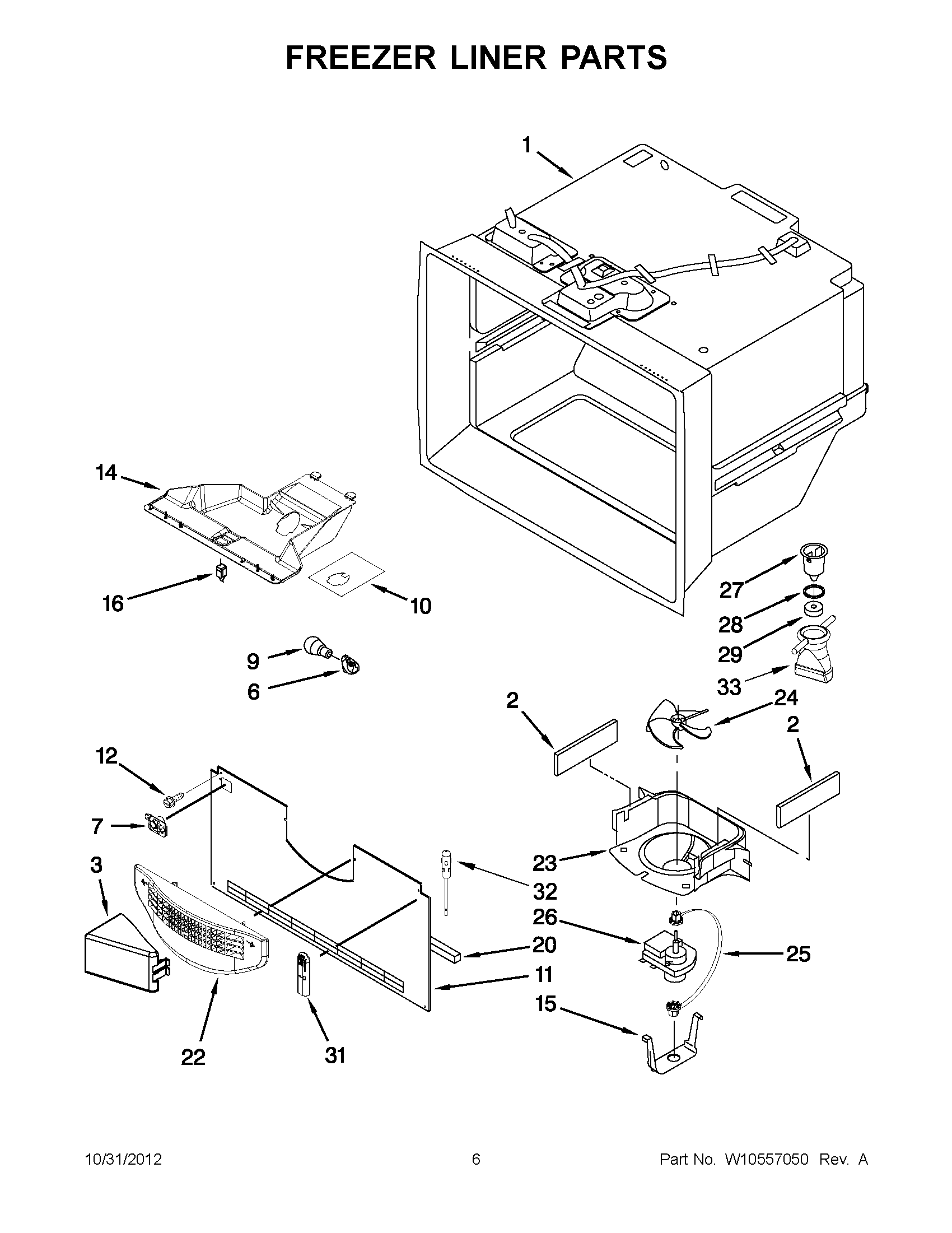

MBF1953YEB4 03 – FREEZER LINER PARTS

MBF1953YEB4 03 – FREEZER LINER PARTS

Written by

in

MBF1953YEB4 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY W10157765
6Socket, Light
7MAY 12932103
9BULB, LIGHT
10FOIL-FZ LIGHT
11MAY W10308414
12MAY 12990101
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
20Gasket, Bottom
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32MAY 12791409SP
33MAY W10309238
