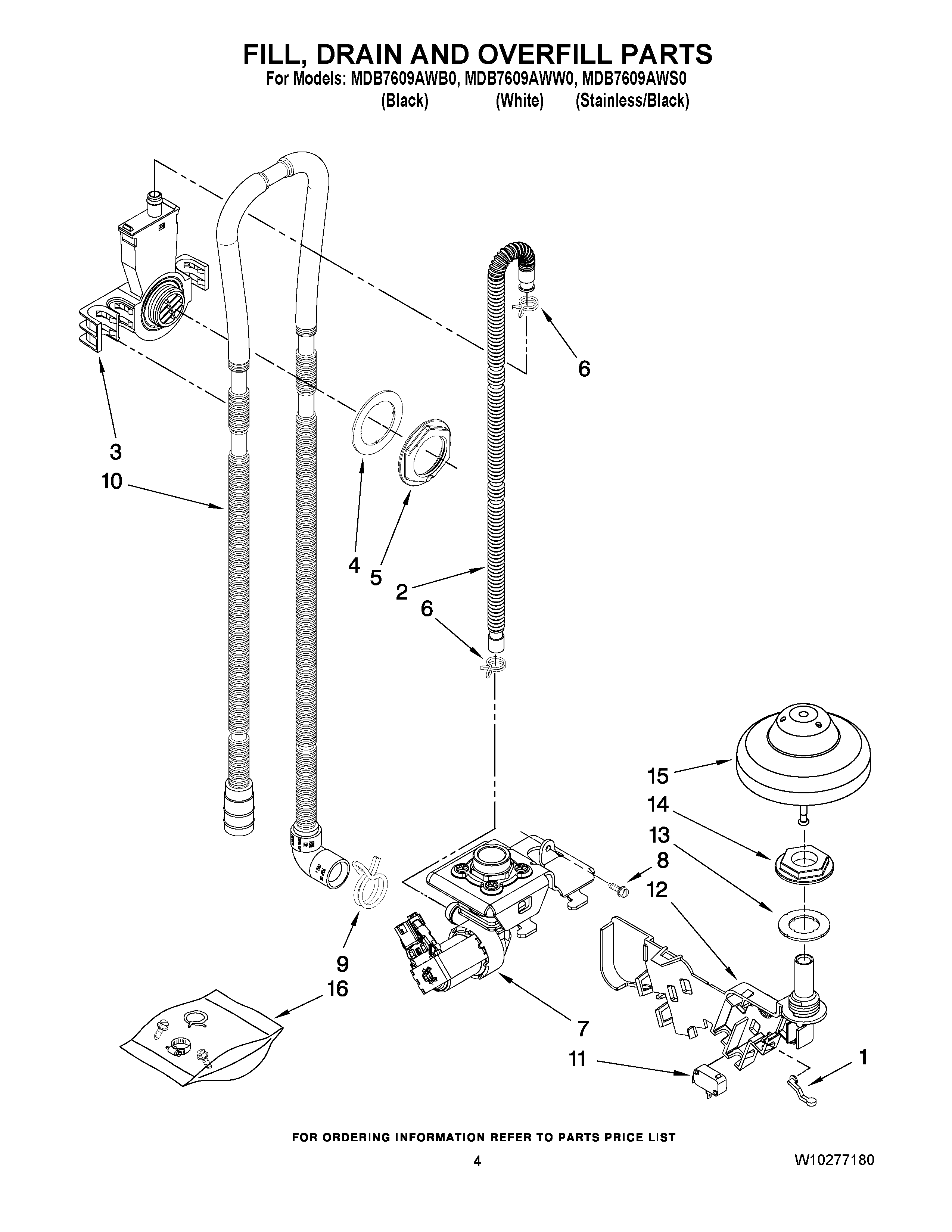

MDB7609AWW0 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

Products

Position	Product
1	LEVER, OVERFLOW SWITCH
2	MAY 8531412
3	MAY 8531325
4	MAY 8531323
5	MAY 8531327
6	MAY 371505
7	MAY W10219505
8	Screw
9	MAY 356138
10	MAY W10137608
11	SWITCH, OVERFILL
12	STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
13	MAY 8531743
14	MAY 9741998
15	MAY 8268895
16	MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS)
