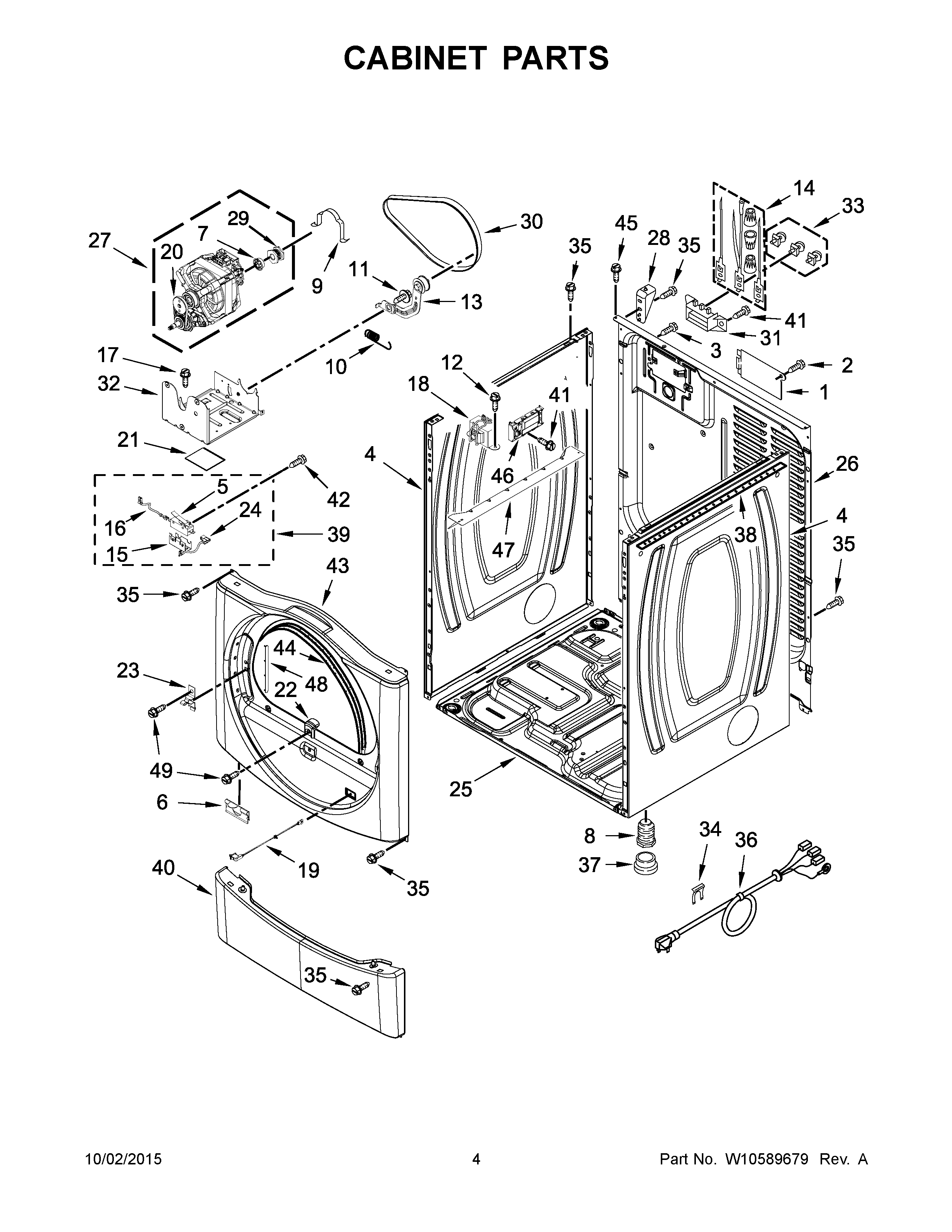

MDE28PDCZW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY W10470674
NI	MAY 279810
1	MAY W10286180
2	Screw, 8-18 x 3/8
3	SCREW
4	MAY W10542714
5	Switch, Broken Belt
6	MAY 8519459
7	MAY 3393657
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8564011
16	Wire, Belt (To Protector)
17	SCREW
18	MAY W10131839
19	DOOR SWITCH ASSEMBLY
20	MAY 3405160
21	DAPENING PANEL
22	MAY 8580015
23	STRIKE, DOOR
24	MAY 8539892
25	MAY 8565046
26	MAY 8565059
27	MAY W10396034
28	MAY W10137398
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	STRAIN-RELIEF CLIP
35	SCREW
36	CORD, POWER
37	BOOT, FOOT
38	SEAL-FOAM (IEC)
39	MAY W10155571
40	MAY 8540621
41	MAY 8533971
42	Screw, 6-20 x 1-1/16
43	MAY W10549665
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY W10166305
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
