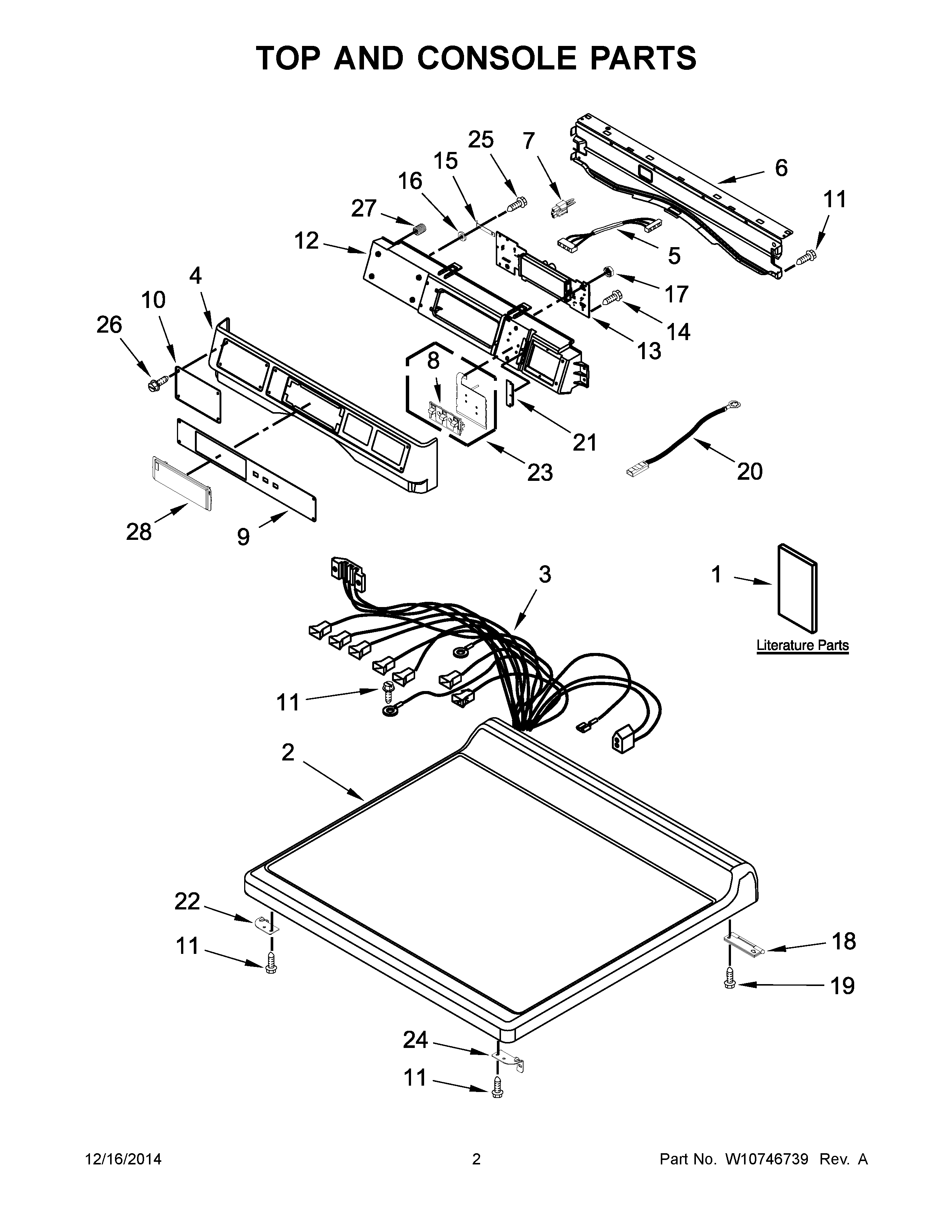

MDG25PNBGW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10746732
1	MAY W10589669
1B	MAY W10731776
2	TOP (WHITE)
3	MAY W10745630
4	MAY W10137459
5	MAY W10166307
6	MAY 8565237
7	JUMPER, SWITCH SERVICE/VAULT
8	MAY W10424308
9	MAY W10334891
10	DISPENSER, FASCIA
12	MAY W10137427
13	MAY W10166387
14	MAY 489136
15	MAY W10532923
16	MAY W10189075
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	SCREW
20	MAY W10257051
21	MAY W10187276
22	MAY W10137445
23	SWITCH, MEMBRANE & BACKER PLATE
24	MAY W10137444
25	Screw 8-32 x 1/4
26	SCREW
27	INSERT
28	COVER, DISPLAY
