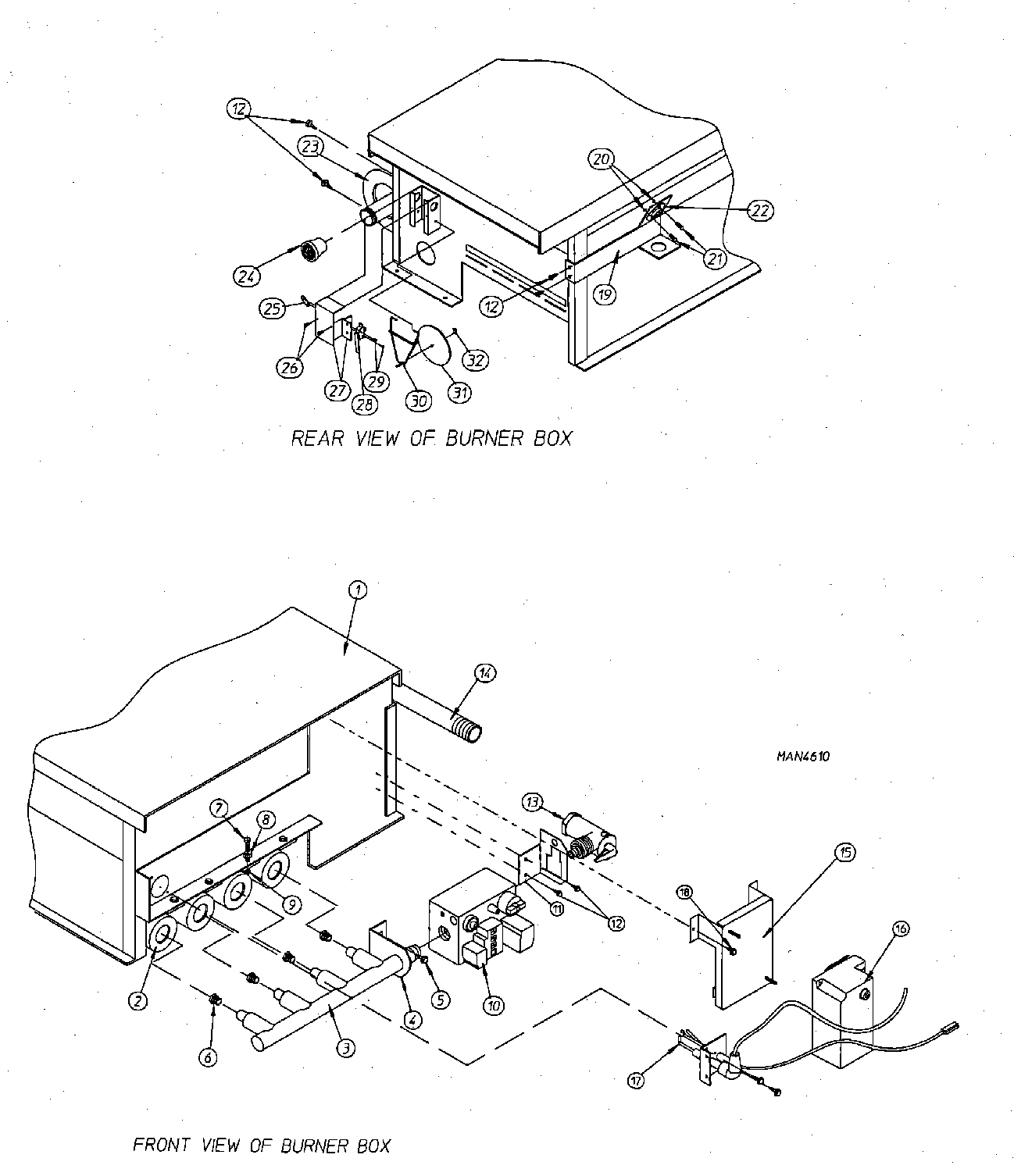

MDG75MNAWW 19 – BURNER ASSEMBLY (PROD. 3/1/00 AND AFTER)
Written by
in
MDG75MNAWW 19 – BURNER ASSEMBLY (PROD. 3/1/00 AND AFTER)
Products
| Position | Product |
|---|---|
| 001 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A809697 |
| 001 | MAY A809696 |
| 001 | MAY A881231 |
| 001 | MAY A814832 |
| 002 | MAY A141105 |
| 003 | MAY A141210 |
| 004 | MAY A323737 |
| 005 | MAY A150300 |
| 006 | MAY A140805 |
| 006 | MAY A140819 |
| 007 | MAY A150103 |
| 008 | MAY A153000 |
| 010 | VALVE,GAS 1/2“ 24 VAC,(LP) |
| 010 | MAY A140411 |
| 010 | MAY A128927 |
| 011 | MAY A318712 |
| 013 | MAY A318714 |
| 013 | MAY A142707 |
| 013 | MAY A142506 |
| 013 | MAY A142600 |
| 013 | BODY, UNION SHUT-OFF |
| 014 | MAY A142809 |
| 015 | MAY A810030 |
| 016 | MAY A128937 |
| 016 | MAY A128935 |
| 016 | MAY A815724 |
| 017 | MAY A809309 |
| 019 | MAY A319704 |
| 020 | MAY A151001 |
| 021 | MAY A150001 |
| 022 | HI-LIMIT (330 DEG.) |
| 023 | MAY A318700 |
| 024 | MAY A143000 |
| 025 | MAY A154004 |
| 026 | SCREW, CRIMPTITE |
| 027 | MAY A802799 |
| 028 | MAY A881706 |
| 028 | MAY A122200 |
| 029 | MAY A150303 |
| 030 | MAY A105500 |
| 031 | MAY A319202 |
| 032 | MAY A154002 |
