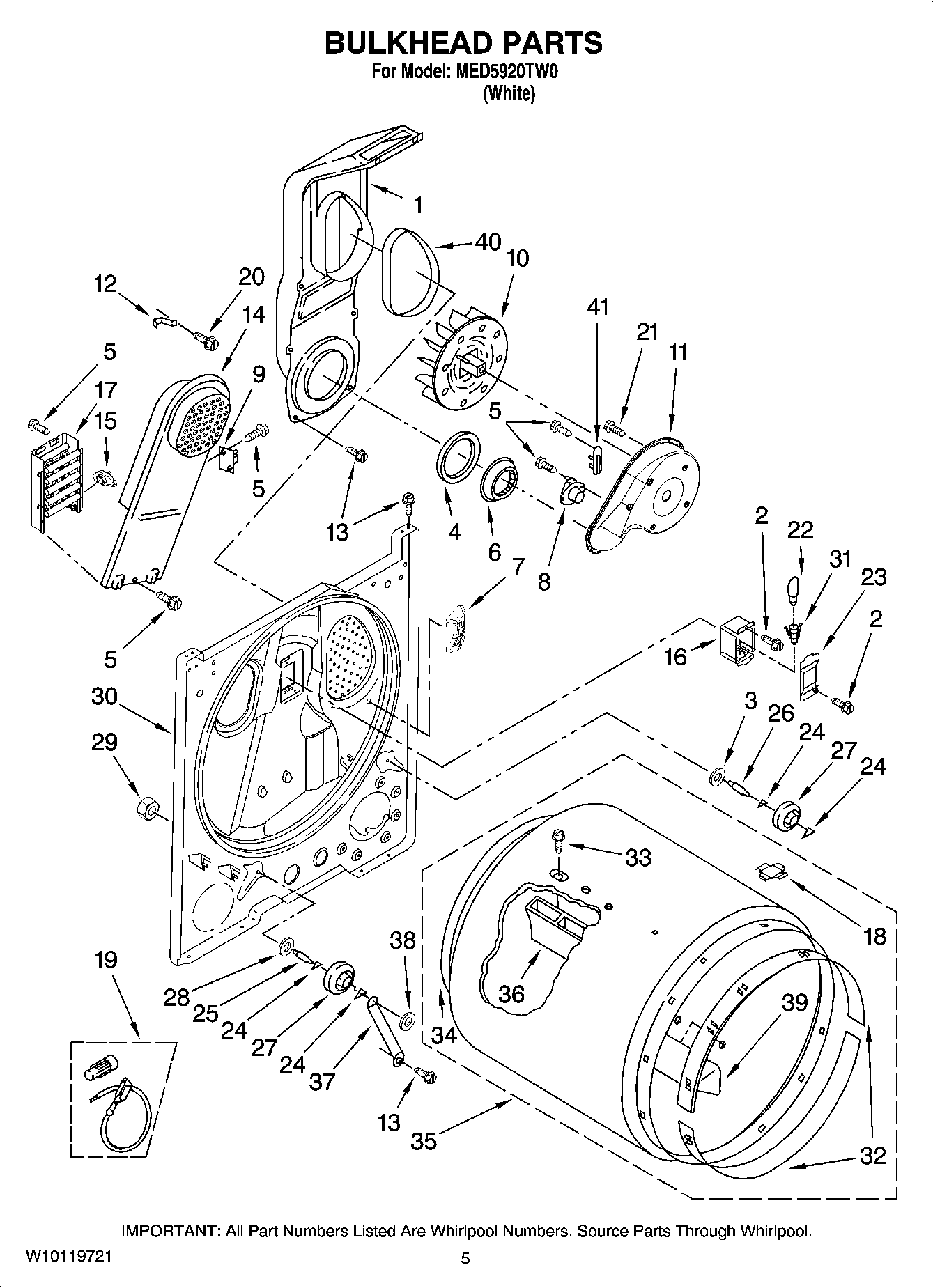

MED5920TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

MED5920TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

MED5920TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
MAY 3406839
ACCESSORY PARTS, KIT, DRYER REPAIR
MAY 4392901
PAINT, BULK (1 qt.) (Biscuit)
MAY 4392899
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, TOUCH-UP (1/2OZ. WHITE)
ACCESSORY PARTS (KIT, DRYER VENT TESTING)
1MAY 348368
2MAY 487909
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
6MAY 696302
7MAY 3976479
8THERMISTOR
9MAY 3977393
10Wheel, Blower
11MAY 8577231
12CLIP HEATER BOX
13SCREW
14MAY 8541818
15Thermostat, 140 F
16MAY 3977373
17MAY 3401338
18Plug, Drum Hole
19BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20Screw
21SCREW
22MAY 3406126
23MAY 3402841
24WASHER, TRI RING
25MAY 3399506
26MAY 3399507
27MAY 3397590
28WASHER
29Nut, 3/8-16
30MAY 3403413
31Scocket, Assembly
32Bearing, Ring
33MAY W10109200
34MAY 3406130
35MAY 695587
36BAFFLE, DRUM (LONG)
37MAY 3976434
38NUT, PUSH ON
39BAFFLE, DRUM (SHORT)
40MAY 339956
41THERMAL FUSE (91C)
