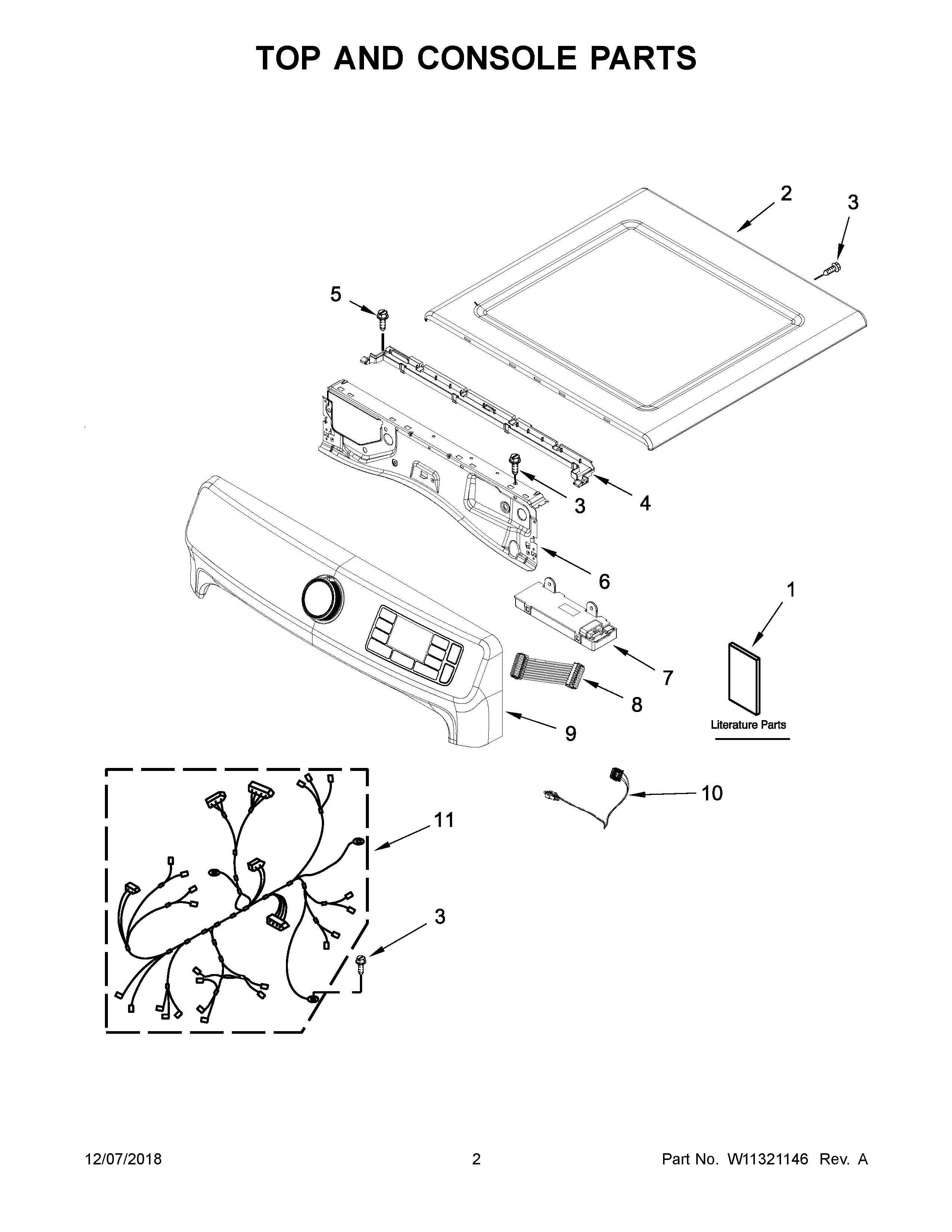

MED8630HC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W11204389
1AMAY W11184899
1BMAY W11183136
1CMAY W11241396
1DMAY W11184894
2TOP (CHROME SHADOW)
3SCREW
4MAY W11255768
5SCREW
6MAY W10208198
7MAY W11123730
8MAY W10920818
9MAY W11296407
10MAY W11036819
11MAY W11157867
