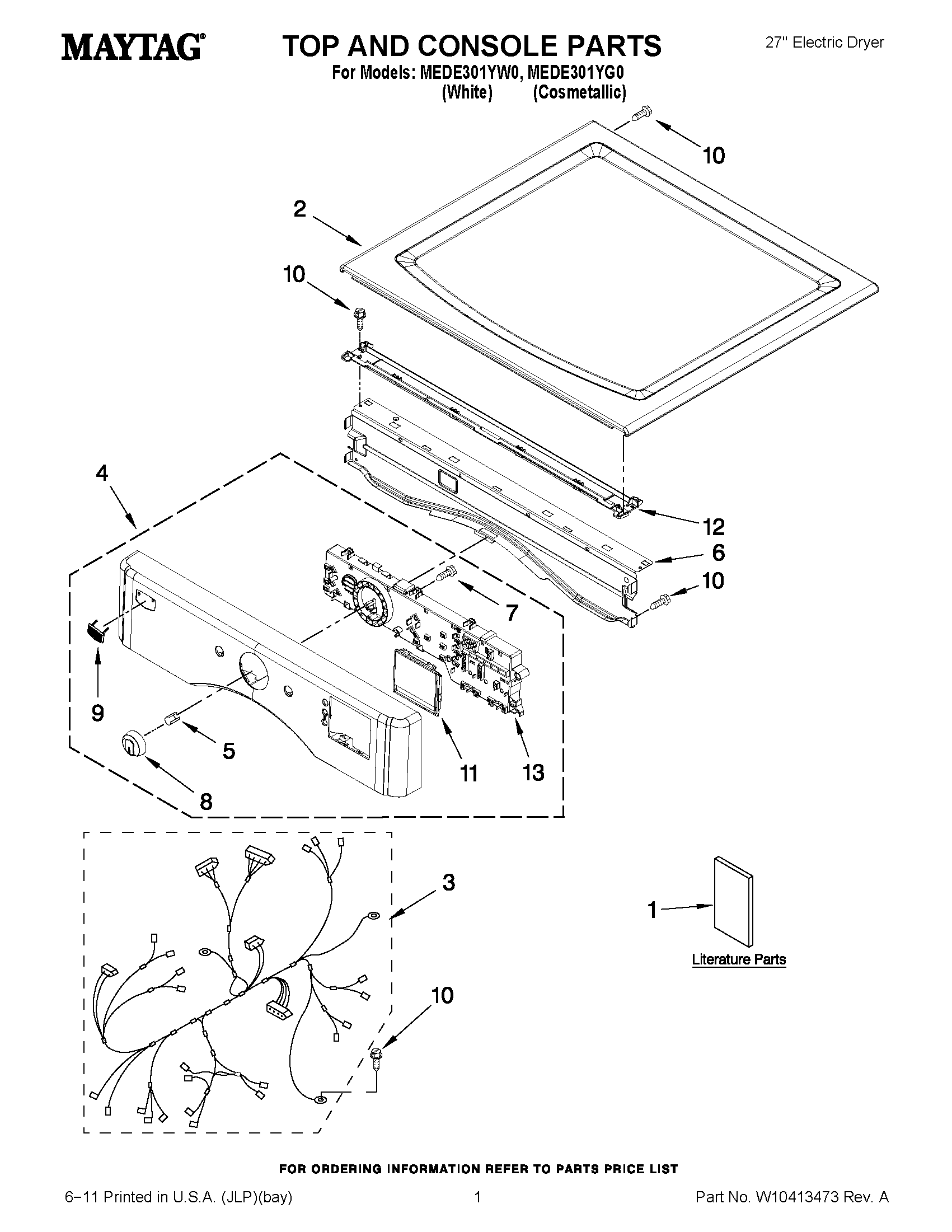

MEDE301YW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10386307
1INSTALLATIION, INSTRUCTION
1HEATER BOX
2MAY W10376730
2TOP (WHITE)
3MAY W10278759
4CONSOLE PANEL, ASSEMBLY (COSMETALLIC)
4CONSOLE PANEL, ASSEMBLY (WHITE)
5CLIP, SPRING
6MAY 8565237
7SCREW, TOP
8KNOB, CONTROL (CHROME)
9BADGE (CHROME)
10SCREW
11MAY W10215794
12CHANEL, WATER
13MAY W10387237
