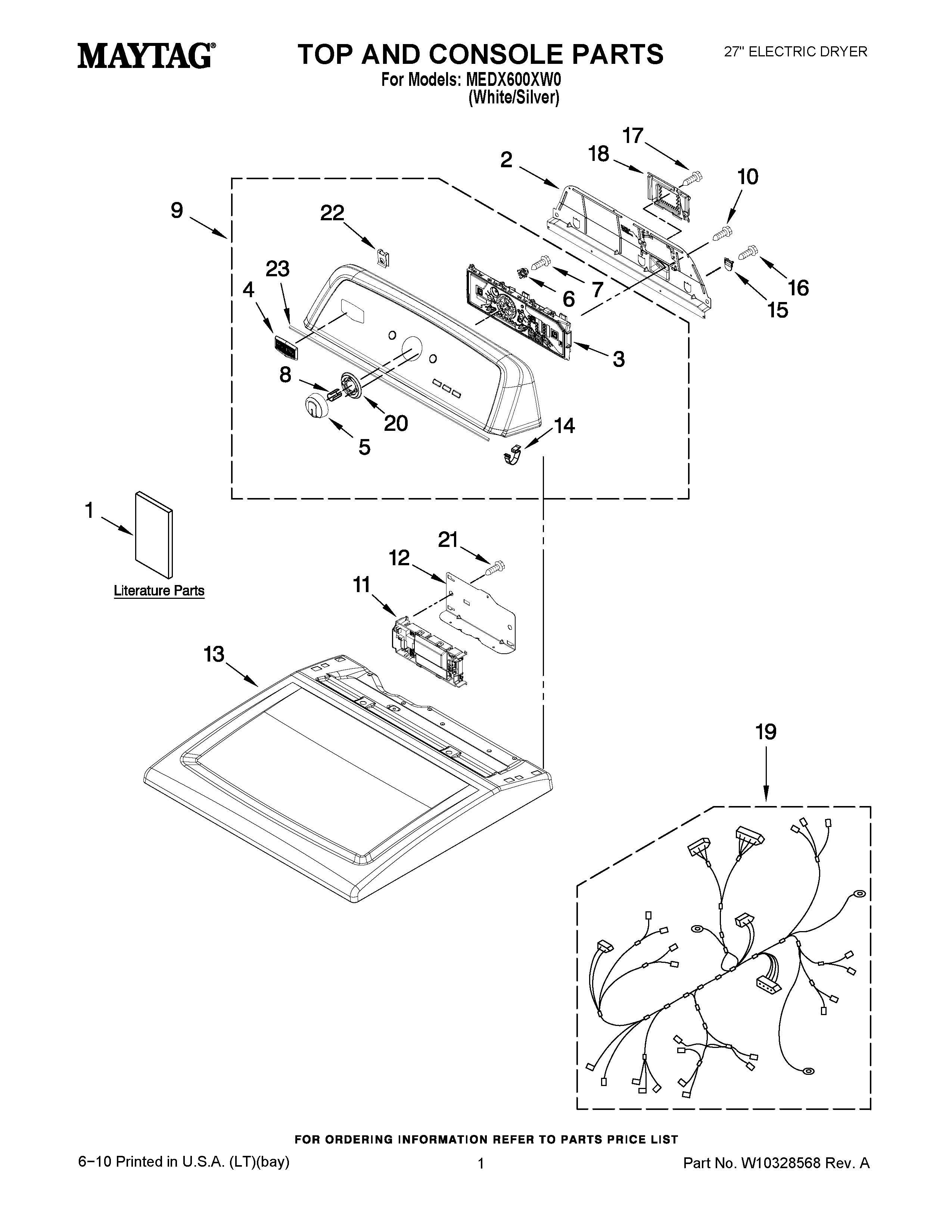

MEDX600XW0 01 – TOP AND CONSOLE PARTS

MEDX600XW0 01 – TOP AND CONSOLE PARTS

Written by

in

MEDX600XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1MAY W10097019
1MAY W10259284
1MAY W10096989
2MAY W10096969
3ASSEMBLY, USER INTERFACE
4MAY W10323735
5MAY W10251381
6TENSIONER, FASCIA
7MAY W10219342
8CLIP, SPRING
9ASSEMBLY, CONSOLE (WHITE)
10Screw
11MAY W10303846
12MAY W10271580
13MAY W10268730
14MAY 8312709
15PLUG, UPPER REAR PANEL
16SCREW
17Screw, 8-18 x 3/8
18MAY W10286180
19HARNESS, ELECTRIC
20MAY W10305134
21Screw, 8-18 x 3/4
22NUT, "U"
23MAY W10280079
