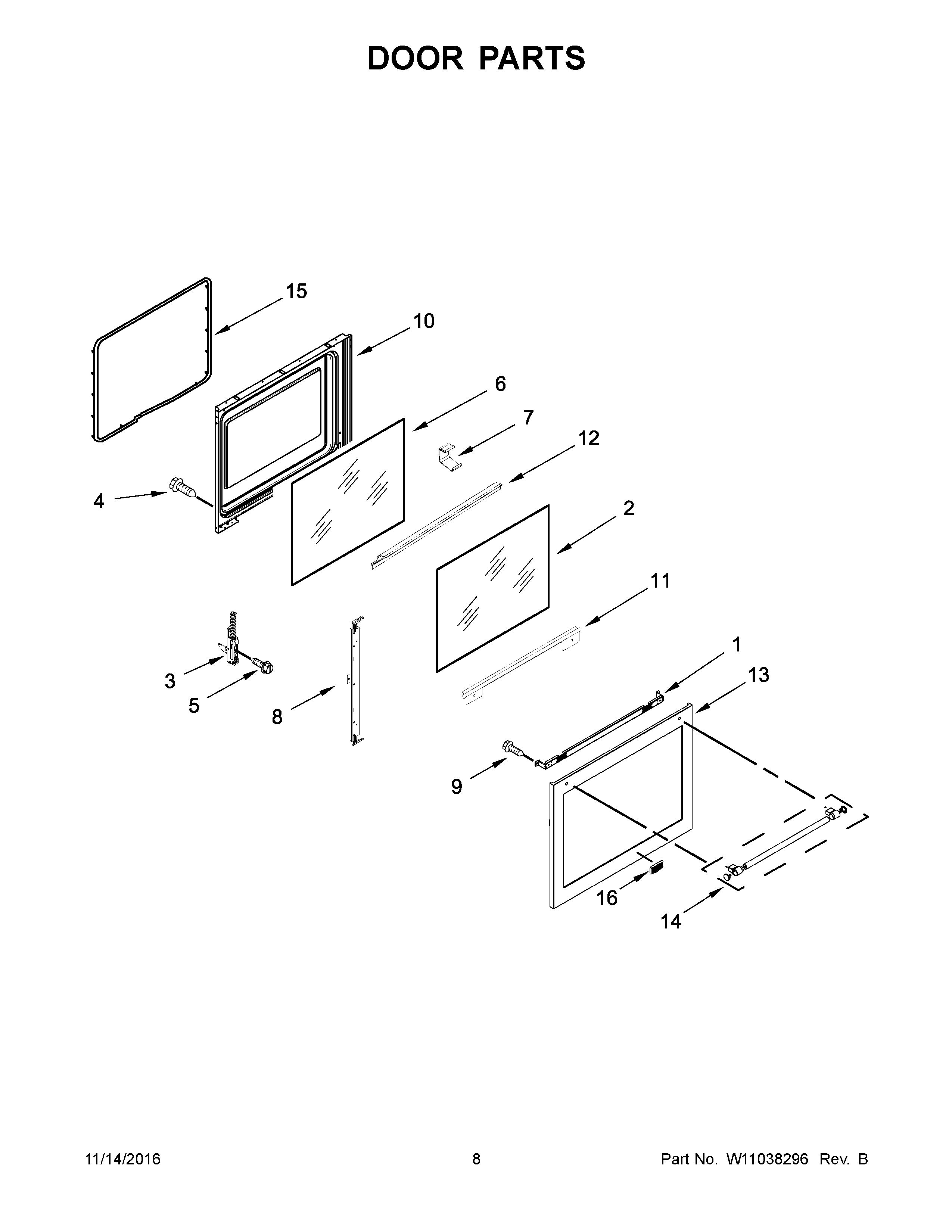

MER8650FZ0 05 – DOOR PARTS

Written by

Products

Position	Product
1	BRACKET, GLASS UPPER HANDLE
2	GLASS, OUTER (STAINLESS)
3	HINGE, DOOR (ACTIVE)
4	SCREW
5	MAY W10362924
6	GLASS, INNER
7	CLIP, PANEL
8	RAIL, HORIZONTAL SUPPORT
9	SCREW
10	LINER, DOOR
11	RAIL, VERTICAL SUPPORT
12	SCOOP, DOOR (BLACK)
13	ASSEMBLY, DOOR SKIN (STAINLESS)
14	HANDLE, OVEN DOOR (STAINLESS)
15	MAY W10162385
16	BADGE
