MER8800HK0 05 – DOOR PARTS

MER8800HK0 05 – DOOR PARTS

Written by

in

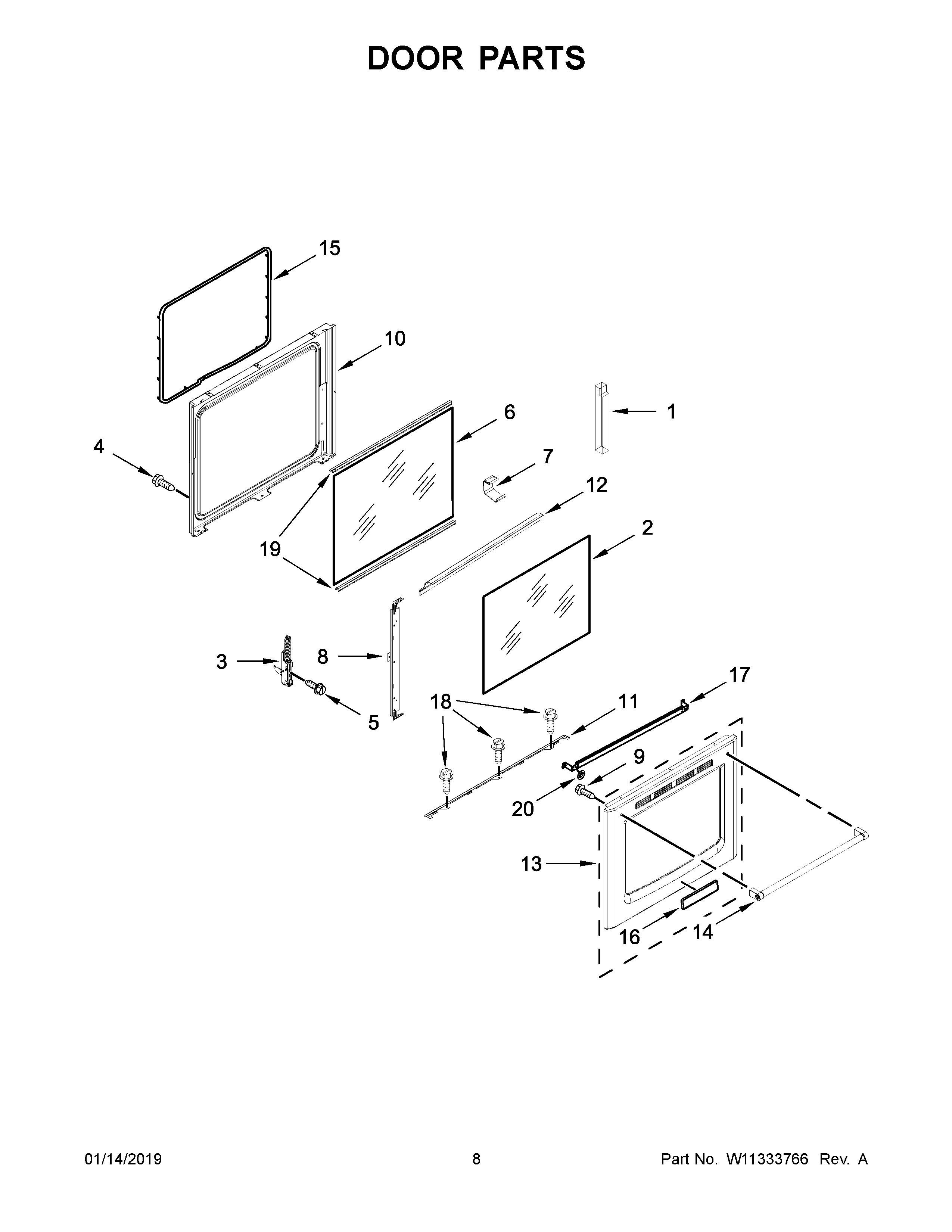

MER8800HK0 05 – DOOR PARTS

Products

Position	Product
1	INSULATION, DOOR
2	GLASS, OUTER (STAINLESS)
3	HINGE, DOOR (ACTIVE)
4	SCREW
5	MAY W10362924
6	GLASS, INNER
7	CLIP, PANEL
8	RAIL, VERTICAL SUPPORT
9	MAY W10241367
10	LINER, DOOR
11	RAIL, HORIZONTAL SUPPORT
12	SCOOP, DOOR (BLACK)
13	MAY W11205027
14	HANDLE, OVEN DOOR (STAINLESS)
15	MAY W10162385
16	BADGE
17	BRACKET, GLASS UPPER HANDLE
18	SCREW
19	SPACER, GLASS
20	WASHER, DOOR
