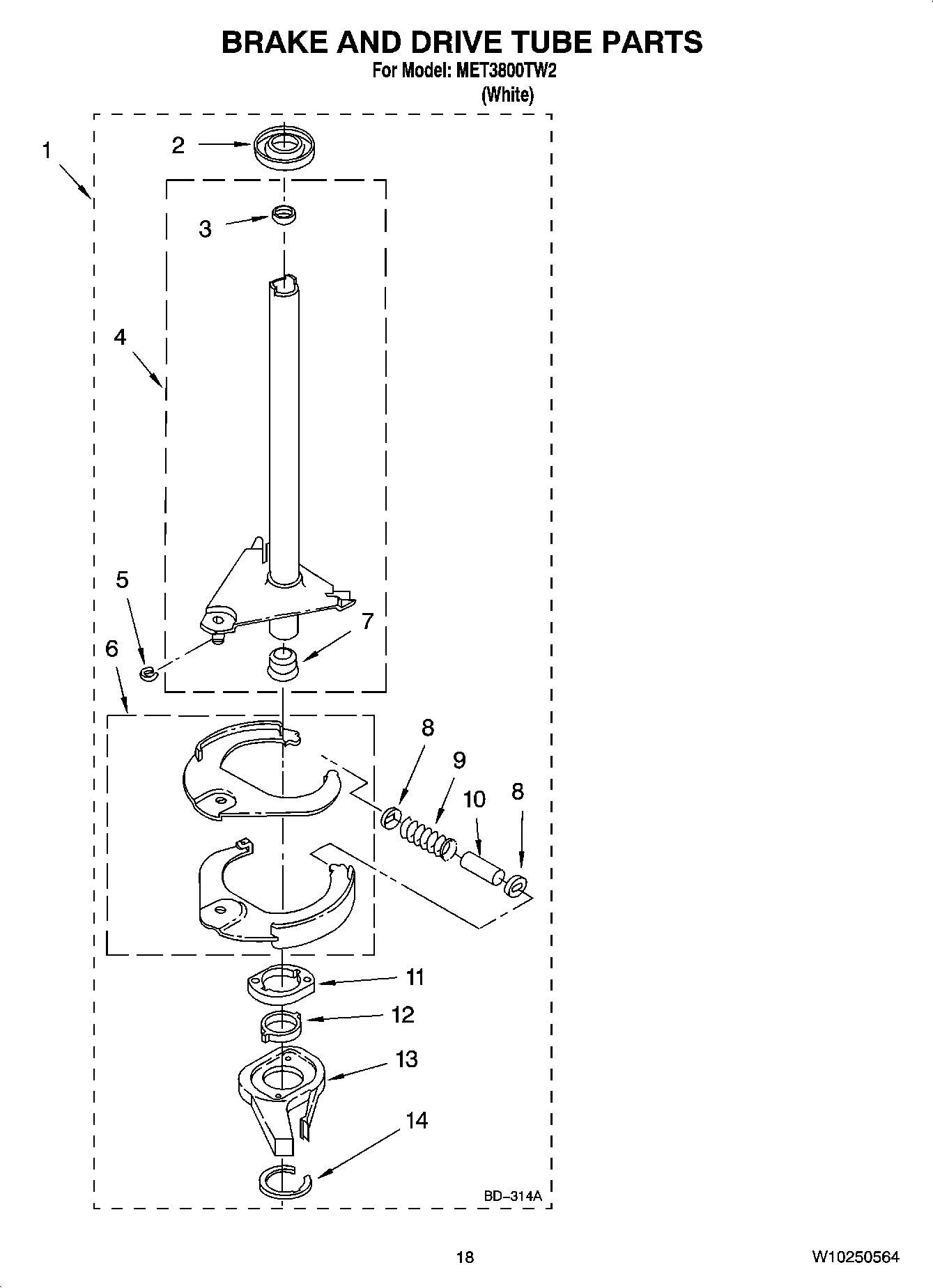

MET3800TW2 12 – BRAKE AND DRIVE TUBE PARTS

Written by

Products

Position	Product
NI	MAY 285208
1	Brake And Drive Tube (Complete) (Refer To Page 18 For Further Breakdown)
2	MAY 62658
3	Seal, Spin Pinion
4	MAY 64027
5	MAY 64035
6	MAY 64232
7	MAY 62703
8	MAY 3353956
9	MAY 62647
10	MAY 3355360
11	MAY 661516
12	MAY 63022
13	MAY 64194
14	MAY 90368
