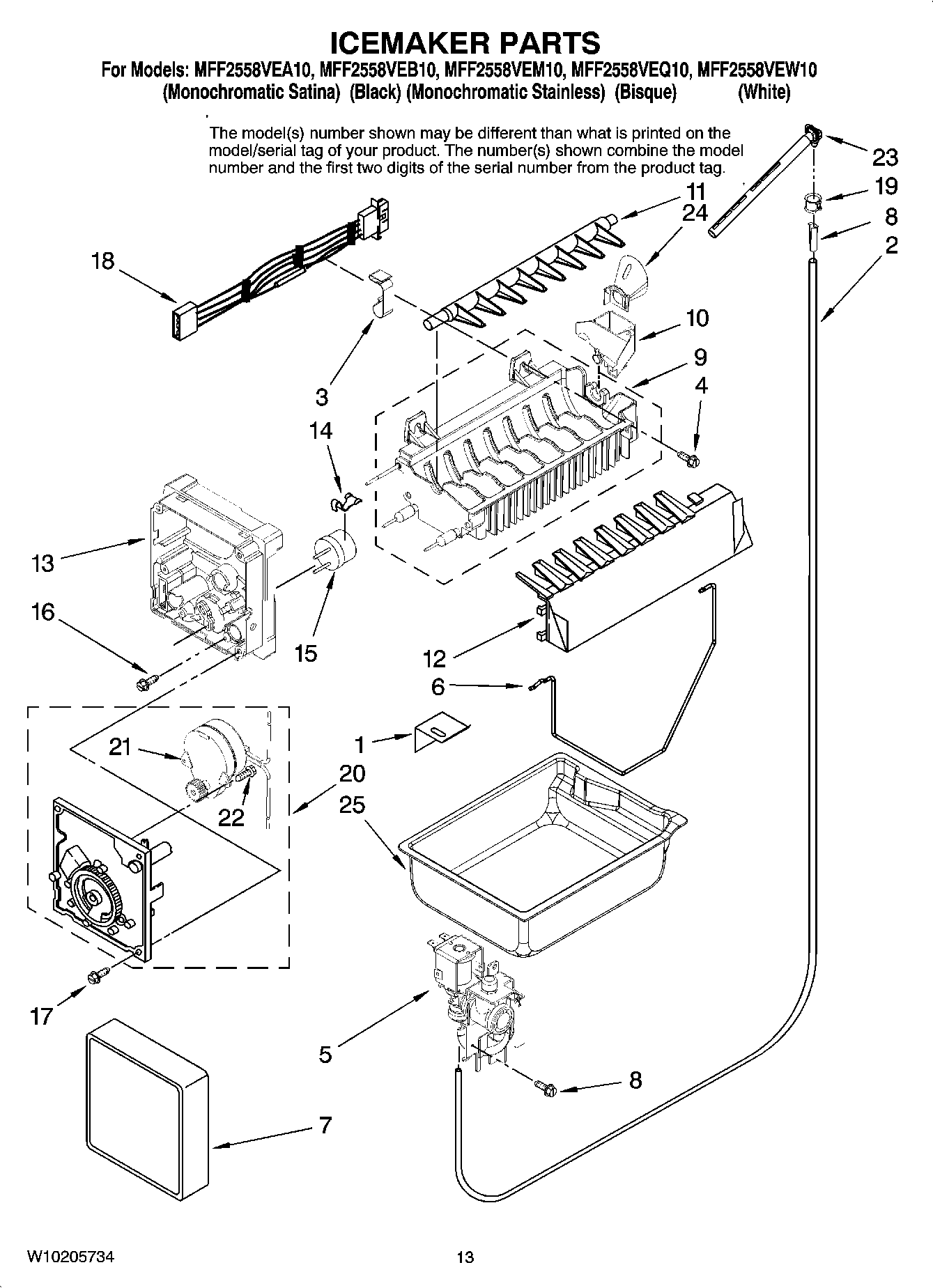

MFF2558VEA10 08 – ICEMAKER PARTS, OPTIONAL PARTS

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
	MAY 479502
	MAY 503695
	MAY 505587
	MAY 542638
	MAY 542639
	Kit, Evaporator Repair (Aluminum Epoxy)
	MAY 833938
	SEALER, GUM (4 FEET)
	MAY 1117510
	STAINLESS STEEL CLEANER & POLISH
	PAINT, SPRAY (WHITE PRIMER)
	MAY 4392901
	PAINT, BULK (1 qt.) (Biscuit)
	PAINT, BULK (1 QT. WHITE (UNCUT))
	PAINT, TOUCH-UP (1/2OZ. BLACK)
	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	MAY 2256086
2	Tubing, Plastic
3	MAY 67003932
4	MAY 489276
5	WP67003753 Whirlpool Refrigerator Inlet Valve
6	ARM-SHUT
7	WPW10289690 Whirlpool Ice Maker Cover
8	MAY A3223101
9	MAY W10122527
10	Cup, Fill
11	MAY 627843
12	MAY 2182124
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	Screw (3)
18	HARNESS, ICEMAKER
19	Clip
20	Module Assembly (Includes Items 21& 22)
21	MAY 626684
22	MAY 489136
23	MAY W10137519
24	MAY 67005603
25	MAY W10182748
100	Complete Ice Maker
