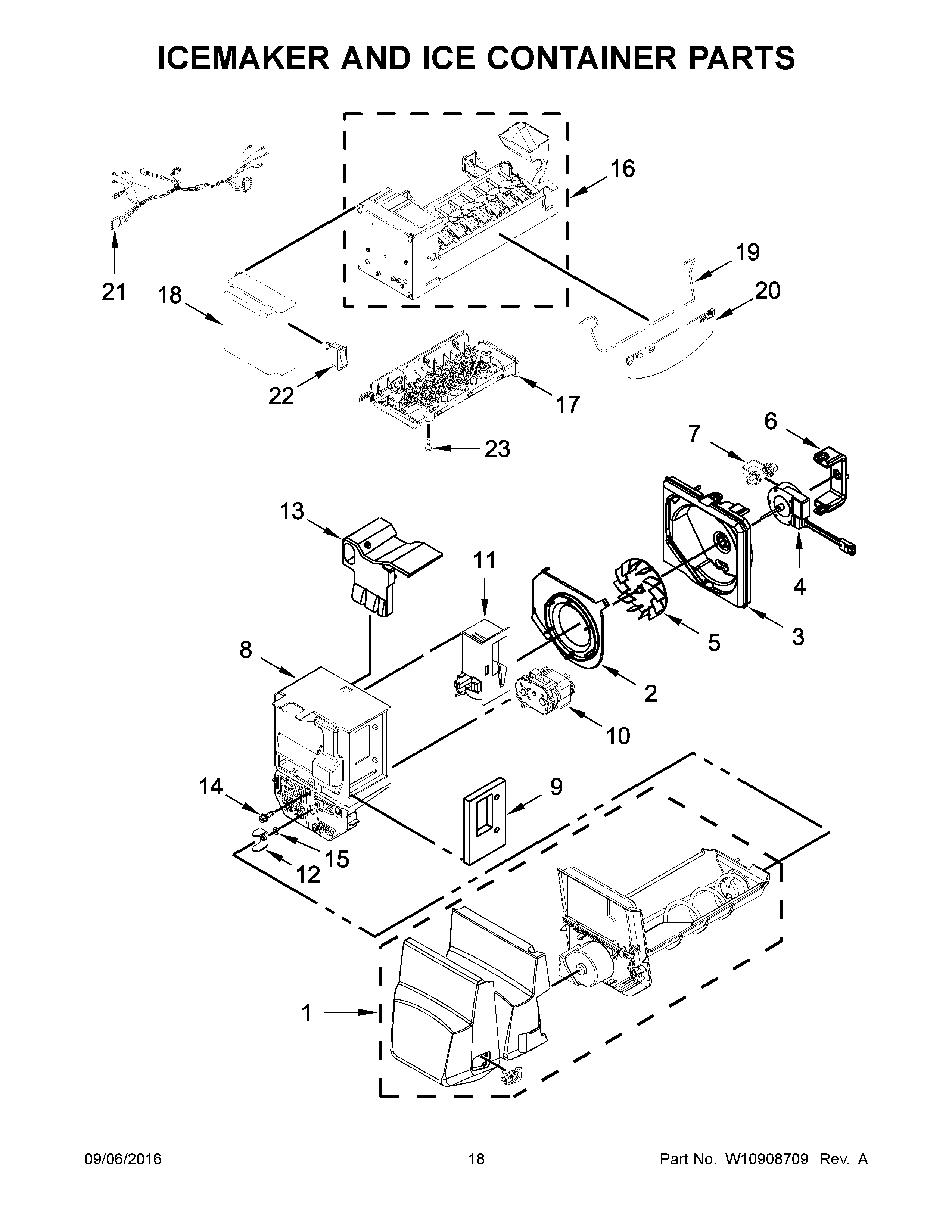

MFI2269FRE01 10 – ICEMAKER AND ICE CONTAINER PARTS

MFI2269FRE01 10 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

MFI2269FRE01 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1ASSEMBLY, ICE BIN
2MAY W10121282
3MAY W10121281
4MAY W10162697
5MAY W10123444
6MAY 12956603SP
7MAY W10151687
8DIVIDER, ICE BOX
9MAY 12920001SP
10MAY W10372218
11MAY W10127427
12YOKE, ICE (DISPENSER)
13MAY W10118612
14SCREW (10)
15WASHER
16MAY W10300024
17IMPINGER ASSY.
18MAY W10121444
19MAY W10175514
20MAY W10351019
21HARNESS, ICE MAKER
22MAY 2313326
23MAY 12990511K
