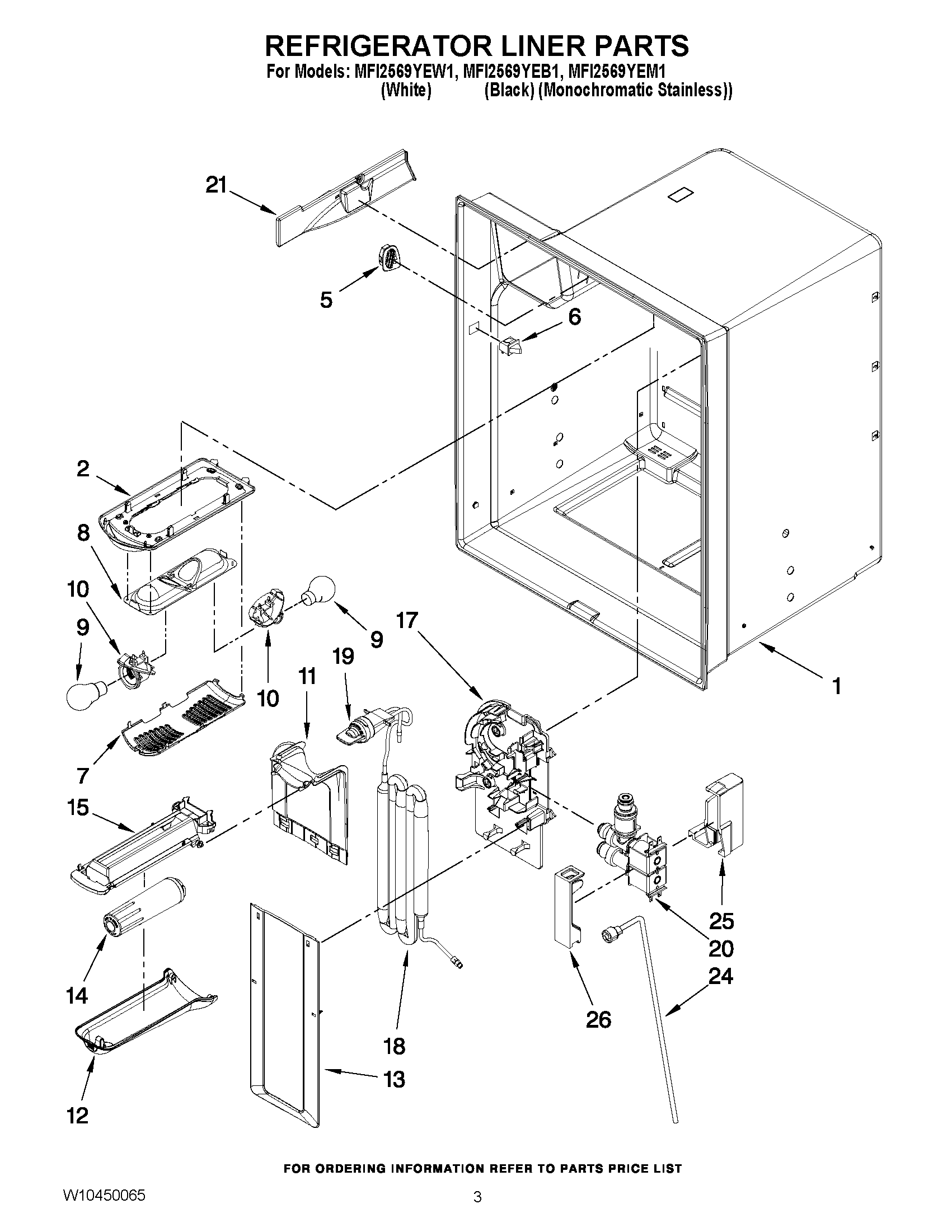

MFI2569YEB1 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 12905803
5MAY 13008201
6SWITCH, LIGHT
7MAY 12905902
8MAY W10368228
9BULB, LIGHT (2)
10Socket, Light
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY UKF8001
15MAY 12955901
17MAY W10365768
18MAY W10273376
19MAY 12664501SP
20MAY W10312696
21MAY W10309869
24MAY W10290356
25MAY W10118193
26MAY W10118194
