MFI2570FEZ08 09 – DISPENSER FRONT PARTS

MFI2570FEZ08 09 – DISPENSER FRONT PARTS

Written by

in

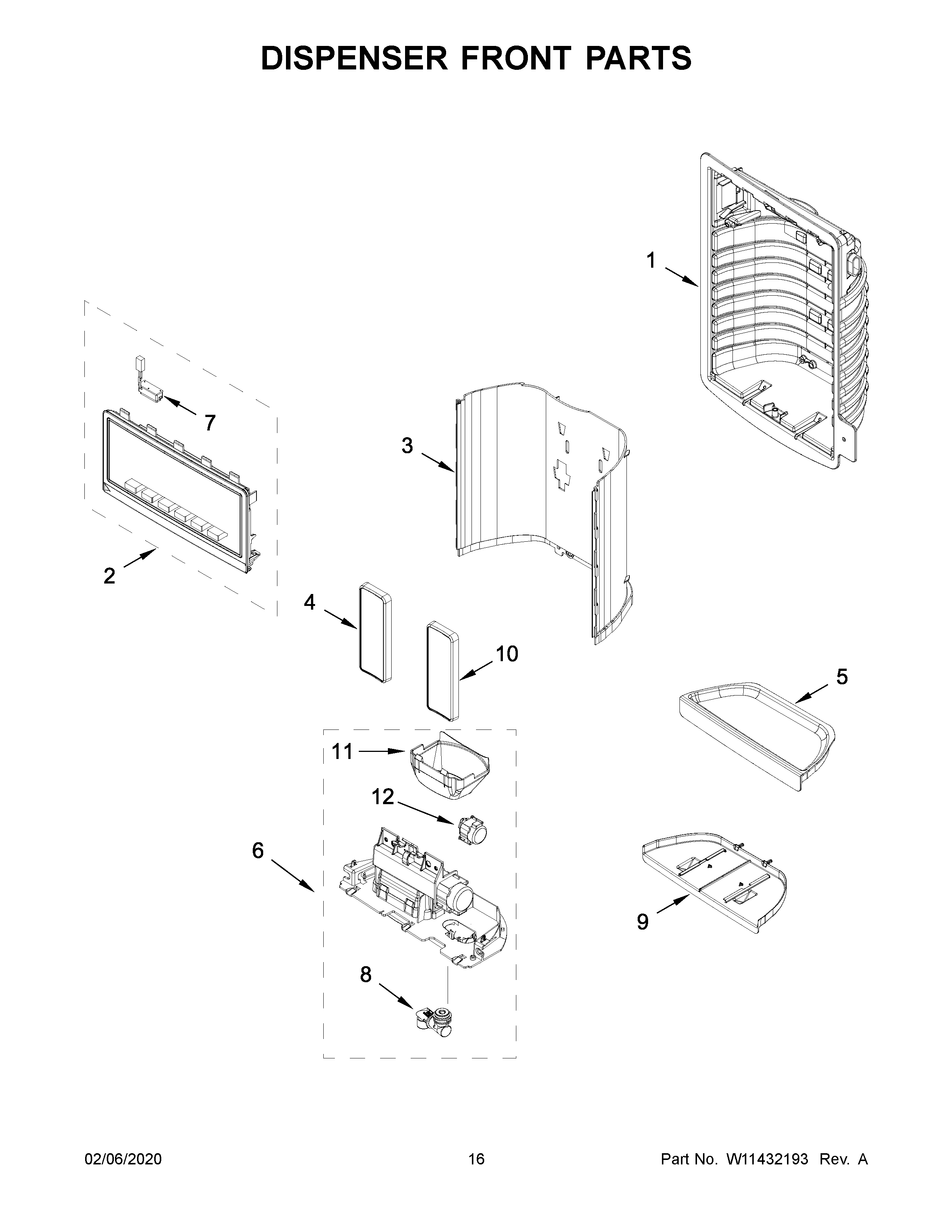

MFI2570FEZ08 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, USER INTERFACE
3WALL, DISPENSER FALSE (NICKEL)
4PAD, ICE (GREY)
5TRAY, DISPENSER (NICKEL)
6MAY W10353552
7MAY W10238083
8MAY 2316647
9SLIDE, TRAY DISPENSER (GREY)
10PAD, WATER (GREY)
11GUIDE, ICE
12MAY W10205979
