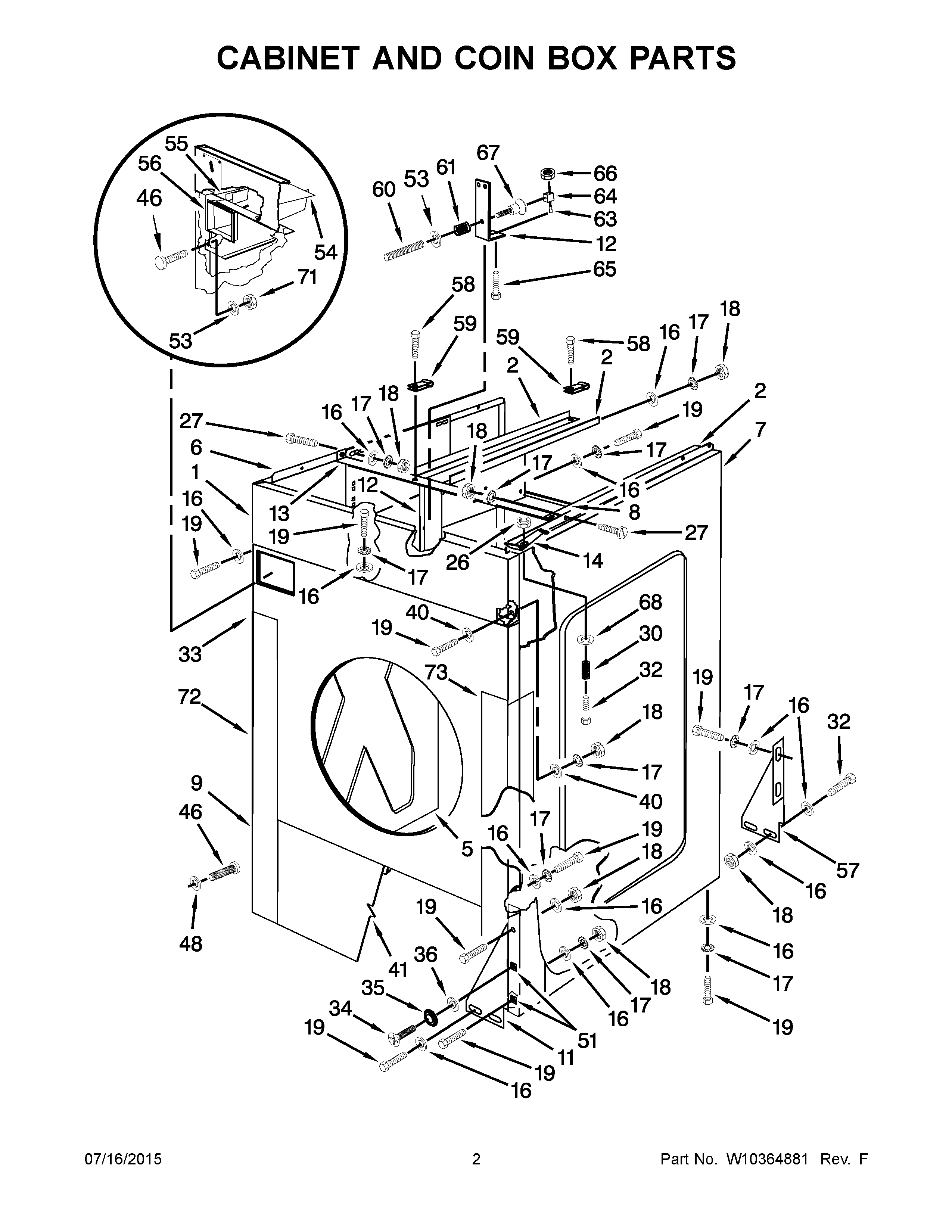

MFS35PDFTS 02 – CABINET AND COIN BOX PARTS
Written by
in
MFS35PDFTS 02 – CABINET AND COIN BOX PARTS
Products
Position
Product
1
MAY 23004302
2
SUPPORT, ELEC DEVICES
5
MAY W10427067
6
PANEL LH, 25LB
7
PANEL RH, 25LB
8
PANEL, REAR 25LB
9
PANEL, SERVICE 25LB
11
CABINET HOLDER-FRONT
12
PLATE, BALANCE
13
REINFORCEMENT, CABINET
14
MAY 23001442
16
MAY 23001309
18
MAY 23001312
19
MAY 23002461
26
MAY 23001310
30
MAY 23001445
32
MAY 23002463
33
MAY W10357112
34
MAY 23003478
35
MAY 23002457
36
MAY 23002458
40
MAY 23002756
41
MAY W10427075
46
MAY 23004095
48
MAY 23002438
51
MAY 23002455
53
MAY 23002504
54
MAY 23003776
55
MAY 23003974
56
MAY 23003775
57
BRACKET, BACK LH
57A
BRACKET, BACK RH
58
MAY 23004480
59
SPEEDNUT
60
SPRING
61
SPRING
63
SPACER
64
MICRO SWITCH
65
MAY 23002906
66
MAY 23002958
67
SPRING HOLDER TILTSWITCH
68
MAY 23001027
71
MAY 23001014
72
MAY W10427069
73
MAY W10427074
←
