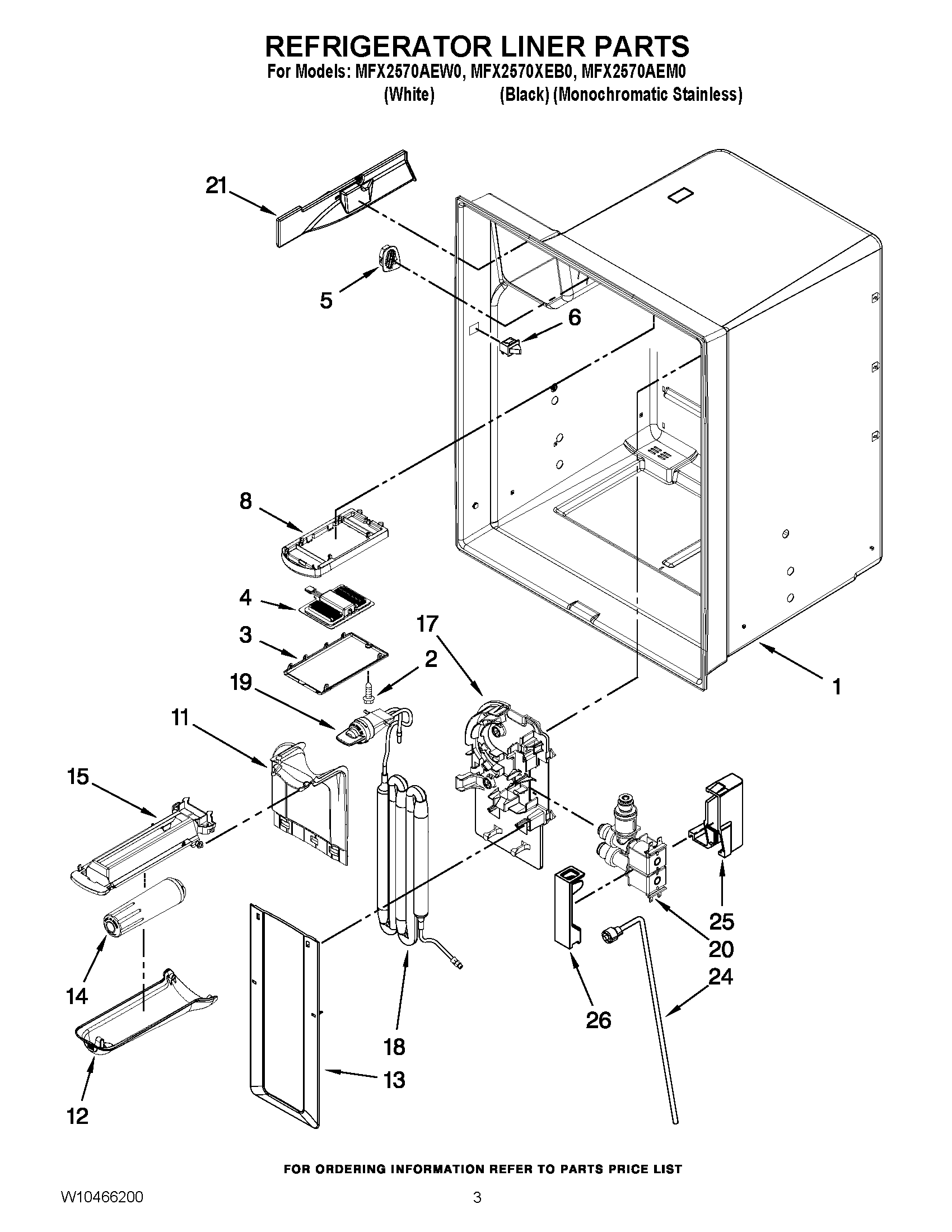

MFX2570XEB0 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 12990204
3LENS, RC LED
4MODULE, MAIN LED
5MAY 13008201
6SWITCH, LIGHT
8HOUSING-RC-LED
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY UKF8001
15MAY 12955901
17MAY W10365768
18MAY W10415891
19MAY 12664501SP
20MAY W10349187
21MAY W10309869
24MAY W10444033
25MAY W10118193
26MAY W10118194
