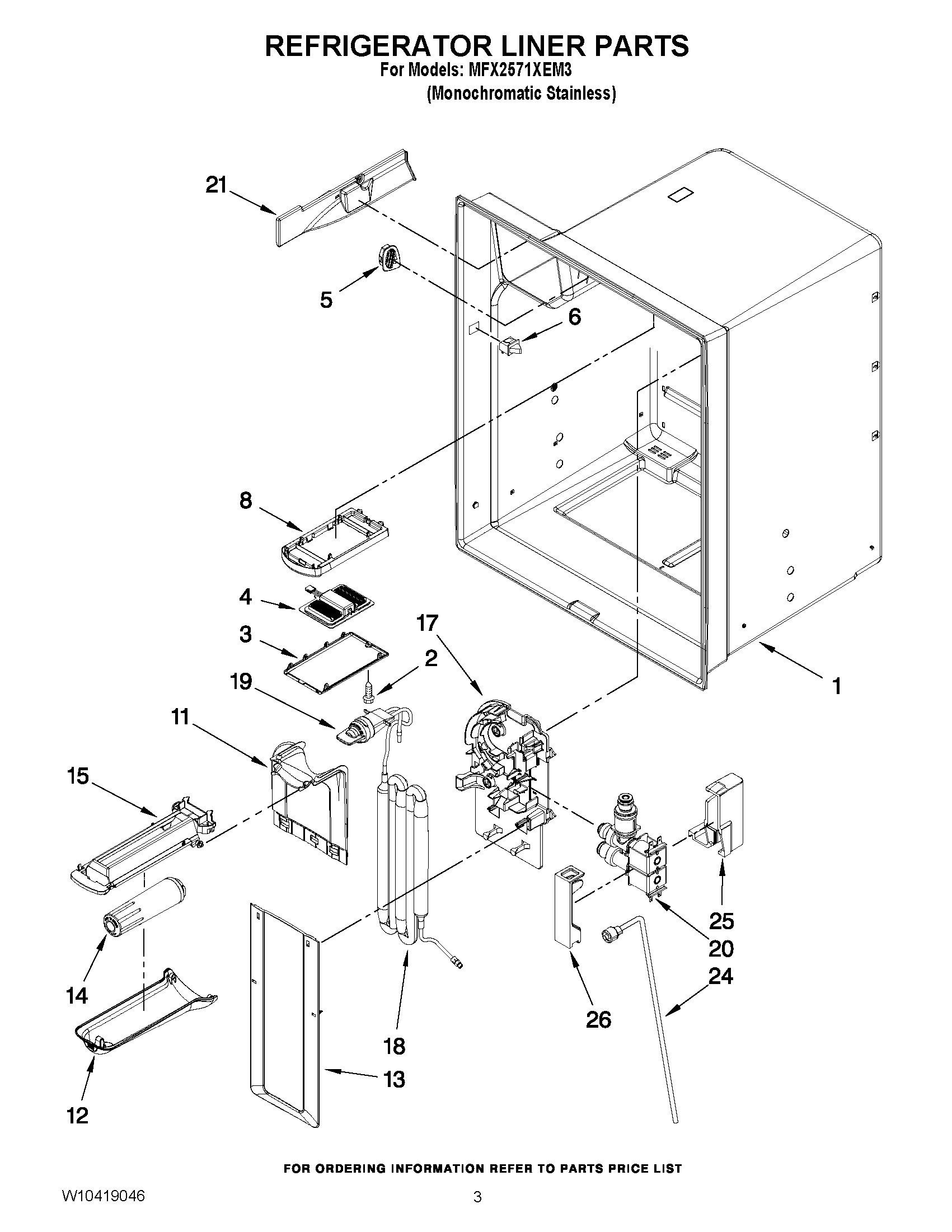

MFX2571XEM3 02 – REFRIGERATOR LINER PARTS

MFX2571XEM3 02 – REFRIGERATOR LINER PARTS

Written by

in

MFX2571XEM3 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 12990204
3LENS, RC LED
4MODULE, MAIN LED
5MAY 13008201
6SWITCH, LIGHT
8HOUSING-RC-LED
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
15MAY 12955901
17MAY 12956001
18MAY W10415891
19MAY 12664501SP
20MAY W10349187
21MAY W10309869
24MAY W10290356
25MAY W10118193
26MAY W10118194
