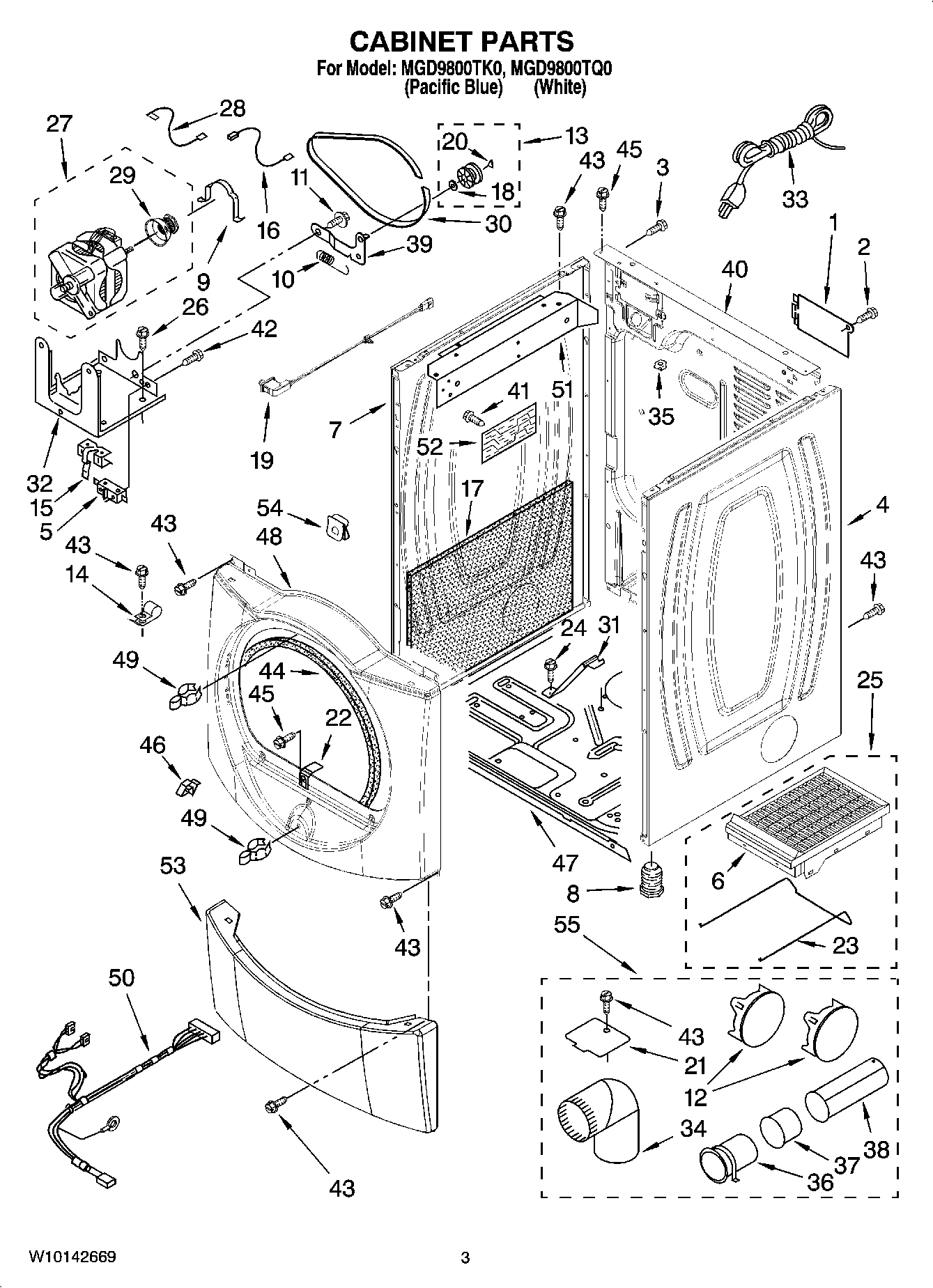

MGD9800TQ0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	Screw, 8-18 x 5/8 (External Ground)
4	MAY W10139007
4	Panel, Side (R.H.) (White)
5	MAY 3394881
6	MAY 8521959
7	MAY W10138993
7	Panel, Side (L.H.) (White)
8	MAY 3392100
8	MAY 279810
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
12	Plug, Multivent (Pacific Blue)
13	ASSEMBLY, PULLEY
14	MAY 3978776
15	MAY 8066120
16	MAY 3394081
17	MAY W10128772
18	MAY 233520
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8529053
23	MAY 8521961
24	Screw
25	MAY 8521957
26	SCREW
27	Motor Assembly 60 HZ.
28	Wire, Jumper (Broken Belt Switch)
29	Pulley 60 HZ.
30	MAY 3387610
31	MAY 8529757
32	MAY 3387118
33	MAY 3401401
34	MAY 49026
35	Nut, Push-In
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY W10133207
41	MAY 3400826
42	Screw, 6-20 x 1-1/16
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY 8519459
47	MAY 8519207
48	Front Panel (Includes Illus. 44) (White)
48	Front Panel (Includes Illus. 44) (Pacific Blue)
49	MAY 696144
50	MAY 8299929
51	MAY 8519273
52	MAY 8546219
53	Panel, Toe (White)
53	Toe-Panel (Pacific Blue)
54	Clip, S-Type (3)
55	MAY 279818
55	MAY 280102
