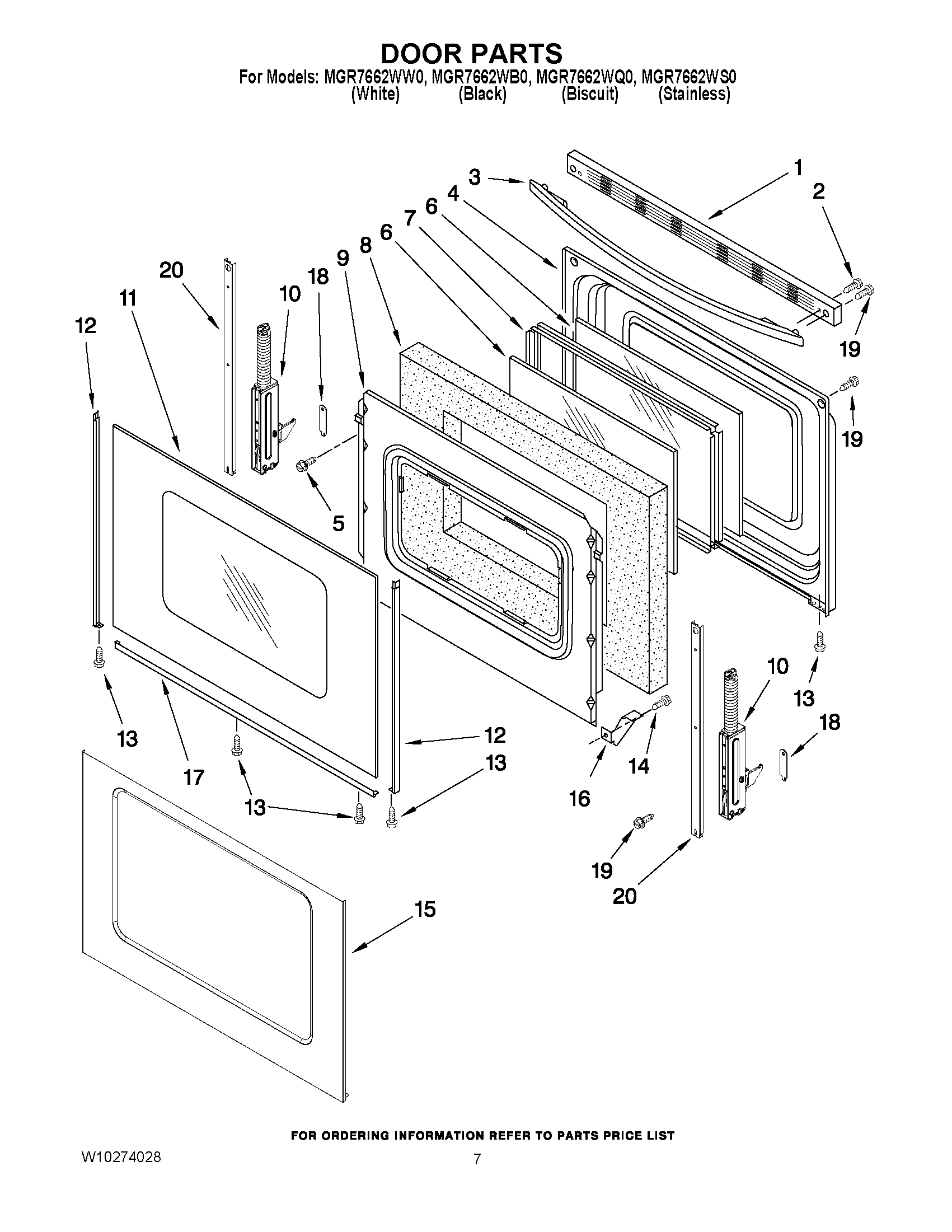

MGR7662WQ0 05 – DOOR PARTS
Written by
in
MGR7662WQ0 05 – DOOR PARTS
Products
Position
Product
1
TRIM, TOP (BLACK)
1
TRIM, OVEN DOOR VENT (BISCUIT)
1
TRIM, TOP (WHITE)
2
SCREW
3
MAY W10111310
3
MAY W10111311
3
MAY W10111309
4
LINER, DOOR
5
SCREW
6
GLASS, INNER
7
MAY 3186289
8
MAY 8272618
9
RETAINER, INSULATION
10
MAY W10171750
10
Hinge, Door
11
GLASS, OUTER (WHITE)
11
GLASS, OUTER (STAINLESS)
11
MAY W10106405
11
MAY W10106406
12
MAY 8523173
12
TRIM, SIDE (WHITE (RIGHT))
12
TRIM, SIDE (WHITE (LEFT))
12
TRIM, SIDE (BLACK, RIGHT HAND)
12
TRIM, SIDE (BLACK, LEFT HAND)
12
MAY 8523167
13
MAY 3196160
14
SCREW
15
MAY W10181694
16
Bracket, Window(2)
17
MAY 8523178
17
TRIM, LOWER (BLACK)
17
TRIM, LOWER (WHITE)
18
Clip,Door Mntg(2)
19
MAY W10031780
20
STRAP, DOOR
←
