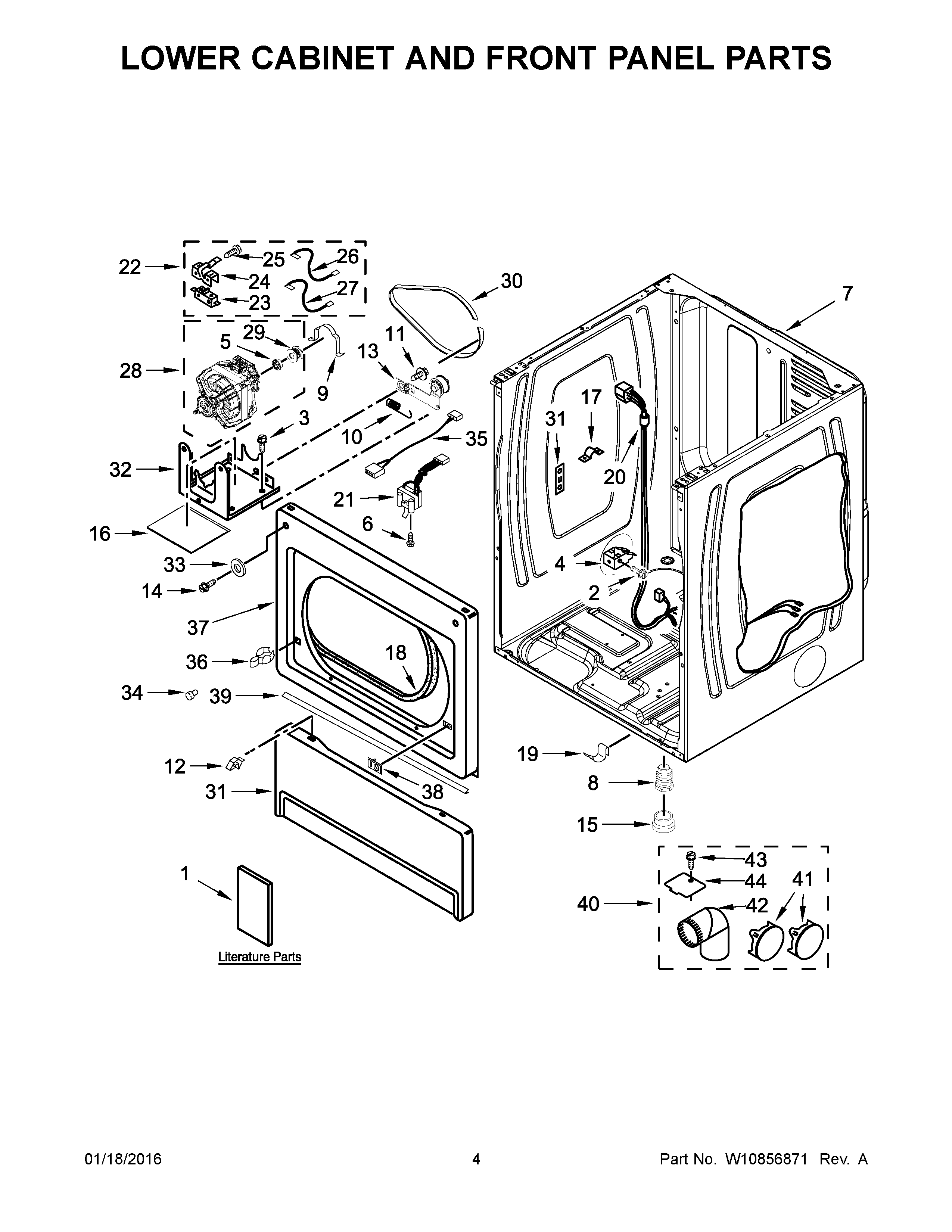

MLE26PRKYW0 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	MAY W10761033
1A	MAY W10135168
1B	MAY W10738550
2	SCREW
3	SCREW
4	CLIP, FRONT PANEL
5	MAY 3393657
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	RETAINER
13	PULLEY-IDLER ASSEMBLY
14	SCREW
15	BOOT, FOOT
16	DAPENING PANEL
17	Clip
18	MAY 3387242
19	CLIP
20	MAY W10807486
21	MAY 3406109
22	Switch, Broken Belt
23	MAY 3394881
24	MAY 8066120
25	Screw, 6-20 x 1-1/16
26	MAY W10167612
27	Wire, Jumper (Broken Belt Switch)
28	MOTOR
29	PULLEY, MOTOR
30	MAY 3387610
31	Toe Panel (Includes Item. 2) (White)
32	MAY 3387118
33	WASHER
34	BUMPER
35	JUMPER, DOOR SWITCH
36	Strike, Door
37	PANEL, FRONT
38	COVER, STRIKE (WHITE)
39	MAY W10576519
40	MAY 279818
41	LINER (NOT A SERVICEABLE PART)
42	MAY 697750
43	MAY 49026
44	MAY 488729
45	MAY 3394331
