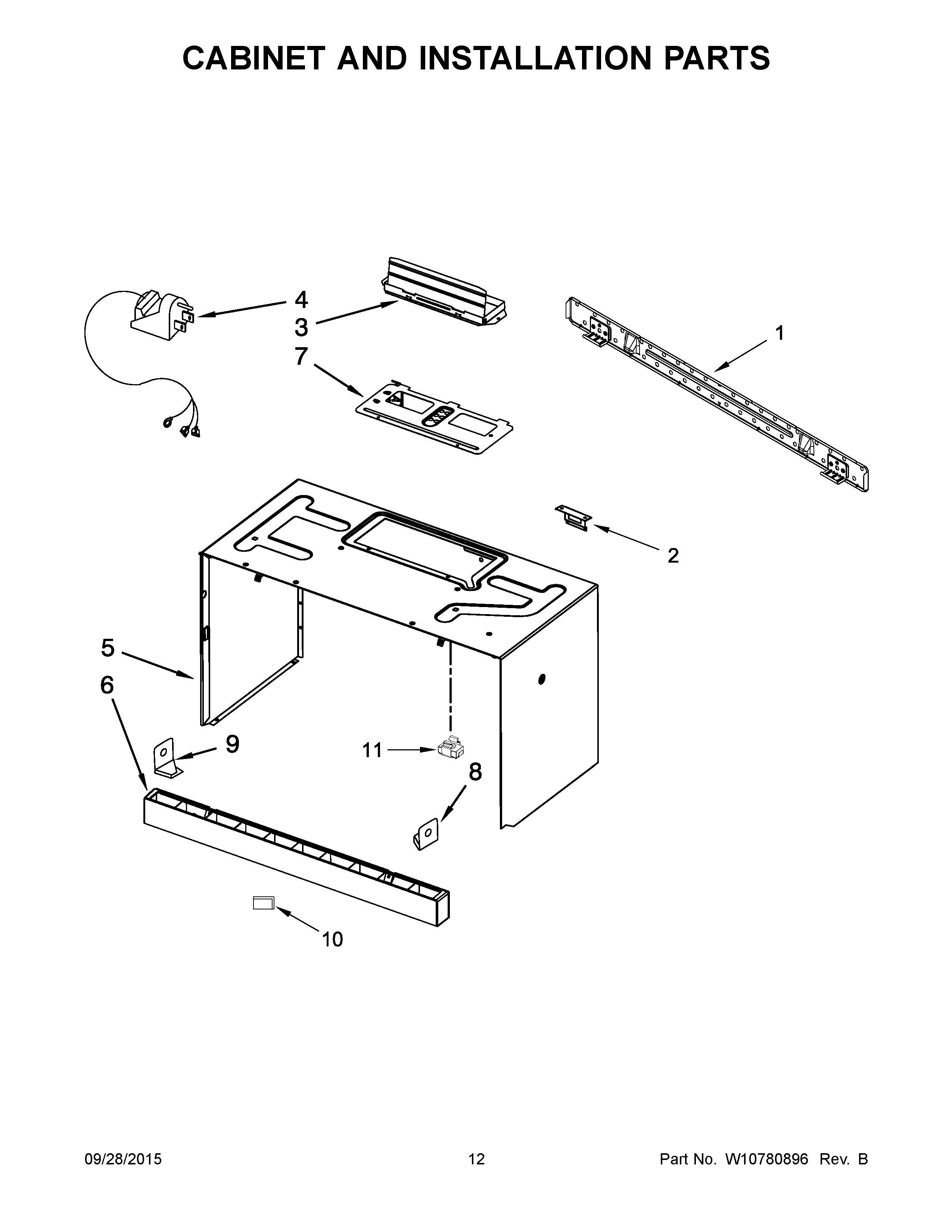

MMV1174DE1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, HARNESS, LAMP AND TURNTABLE
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1PLATE, MOUNTING
2MAY 8206385
3DAMPER
4CORD-POWER
5AMAY W10462001
5MAY W10462003
6GRILLE, VENT (STAINLESS)
6BMAY W10245218
6AMAY W10245217
7MAY W10210832
8HOLDER, VENT RIGHT SIDE (STAINLESS)
8AHOLDER, VENT RIGHT SIDE (BLACK)
9HOLDER, VENT LEFT SIDE (STAINLESS)
9AHOLDER, VENT LEFT SIDE (BLACK)
10BADGE
11ASSEMBLY, MOUNTING NUT
