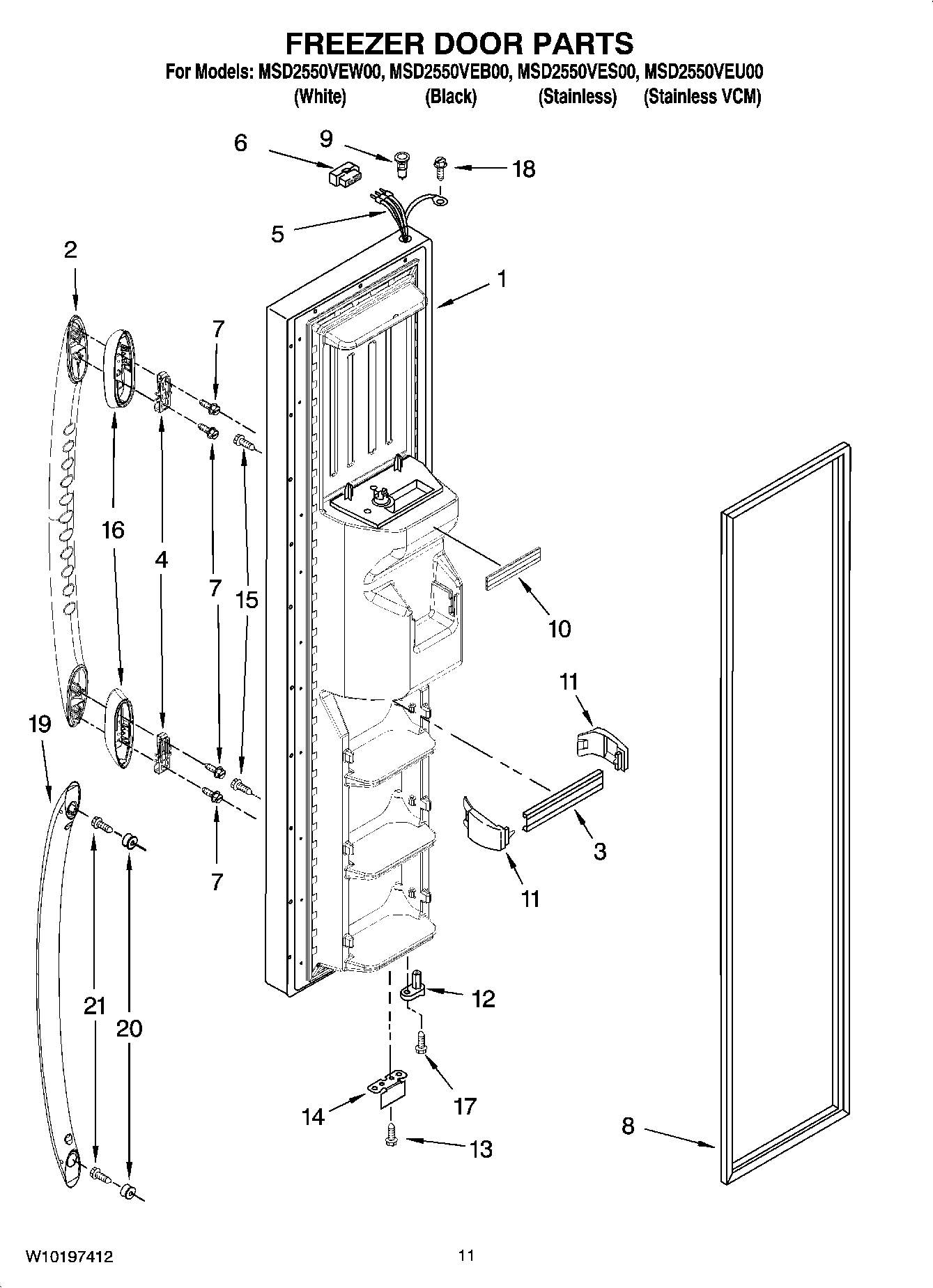

MSD2550VEW00 07 – FREEZER DOOR PARTS

MSD2550VEW00 07 – FREEZER DOOR PARTS

Written by

in

MSD2550VEW00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS VCM)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
2MAY 12743701B
2MAY 12743701W
3Trim, Door (4)
4MAY 13067101
5MAY 2198619
6Connector
7MAY 12990203
8MAY 2309533
8Door Gasket, Magnetic (White)
9THIMBLE
10MAY 2219982
11End Cap (8)
12MAY 2182179
13MAY 489420
14MAY 2206629B
14MAY 2206629
15MAY 2326016
16MAY 12834803B
16MAY 12834803W
17MAY 3400012
18MAY 488500
19W11690159 Whirlpool Handle
20Stud
21Screw
