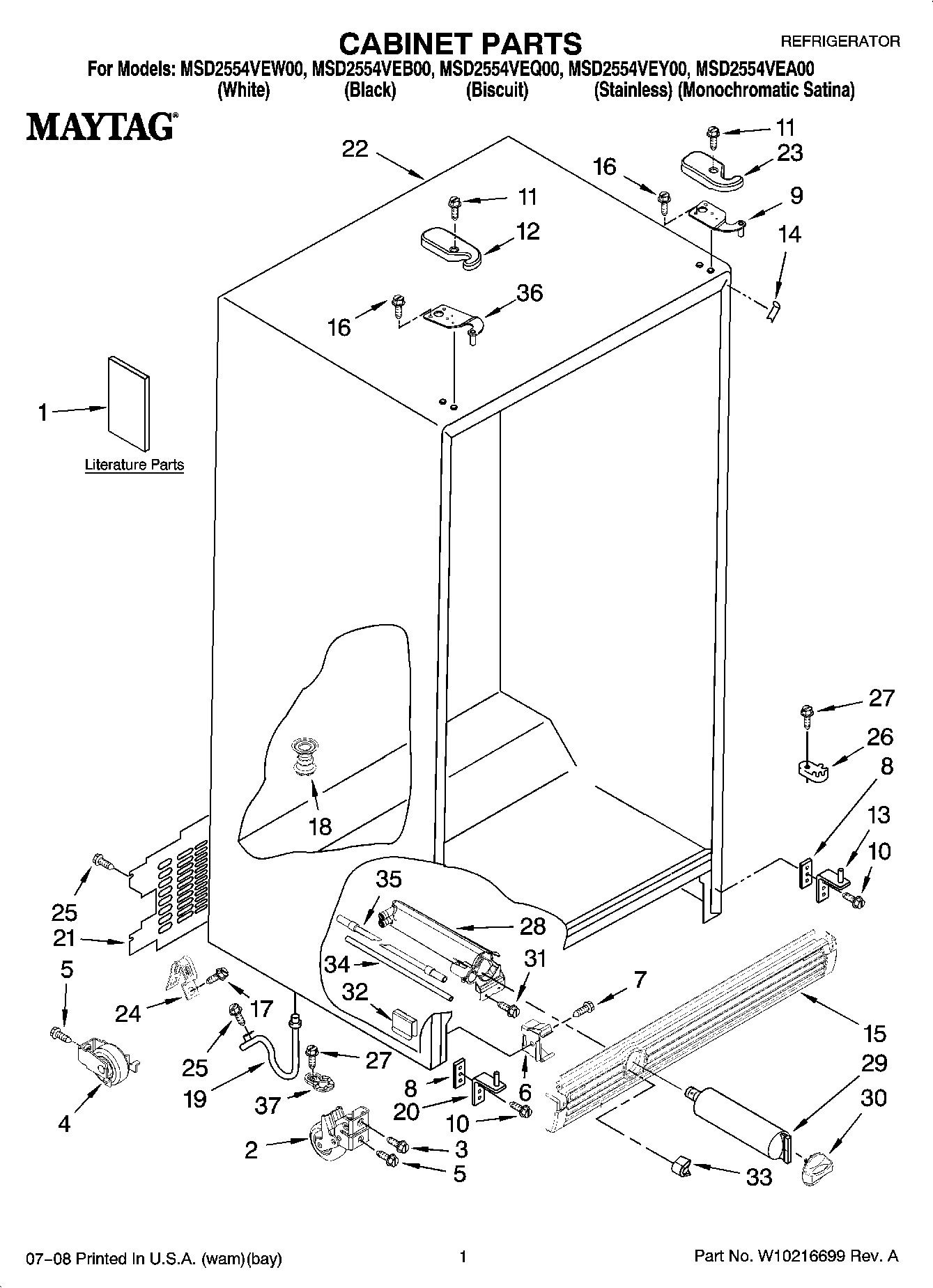

MSD2554VEW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10180857
1	MAY W10159882
1	Instruction Sheet (Door Removal)
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	Shim (2)
9	HINGE TOP RC
10	Screw (4)
11	MAY 8281227
12	Hinge Cover (Biscuit)
12	COVER, HINGE (FREEZER) (GREY)
12	Hinge Cover (RC) (Black)
12	Hinge Cover (RC) (White)
13	MAY 2217075
14	MAY 2201017
14	Corner Filler (2) (White)
14	Filler, Wrapper (Apollo Grey)
15	MAY 2323580W
15	MAY 2323580B
15	MAY 2323580MG
15	MAY 2323580T
16	MAY 489497
17	Screw (3)
18	MAY 2304888
19	MAY 2304937
20	Hinge Bottom (FC)
21	MAY 2188735
23	COVER, HINGE (REFRIGERATOR) (GREY)
23	Hinge Cover (Biscuit)
23	Hinge Cover (FC) (Black)
23	Hinge Cover (FC) (White)
24	MAY 549193
25	MAY 489084
26	MAY 2155311
27	MAY 489483
28	Housing, Water Filter
29	MAY 8212650
30	MAY 2260502B
30	MAY 2260502W
30	MAY 2260502T
30	CAP, WATER FILTER (GREY)
31	MAY 489500
32	Block, Housing Support
33	MAY 2260503T
33	BUTTON, WATER FILTER (GREY)
33	Button, Filter (Black)
33	MAY 2260503W
34	Tube, Filter Outlet
35	MAY 2319867
36	HINGE TOP, FC
37	CLOSER, FREEZER DOOR
