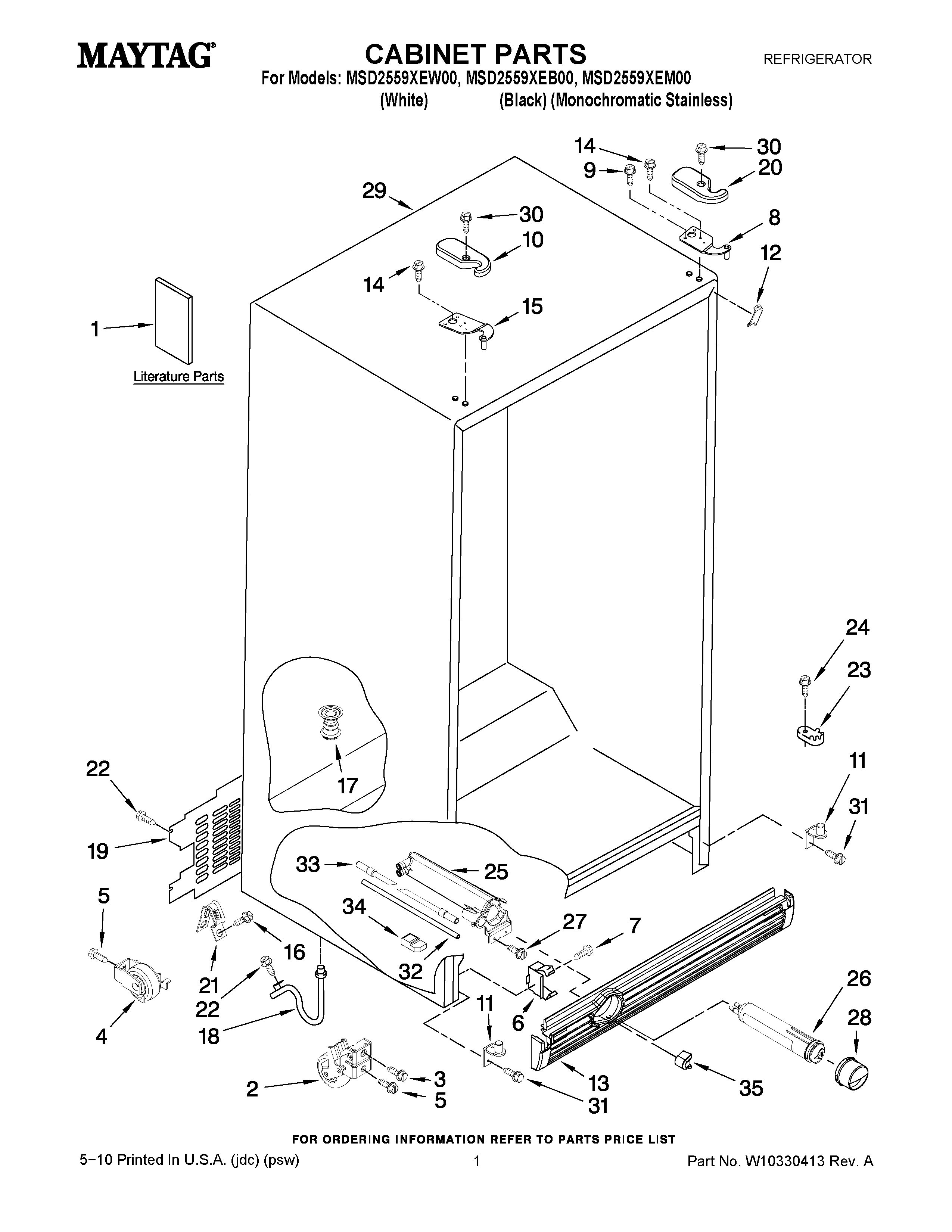

MSD2559XEW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10289812
1	Instruction Sheet (Door Removal)
1	MAY 2220407
1	MAY W10289676
1	MAY W10320901
2	MAY 2174748
3	MAY 3400517
4	MAY W10250570
5	MAY W10146358
6	MAY 2155013
7	SCREW
8	HINGE TOP RC
9	MAY W10142288
10	COVER, HINGE (FREEZER) (GREY)
10	Hinge Cover (RC) (White)
10	Hinge Cover (RC) (Black)
11	Hinge Bottom
12	MAY 2304846
12	MAY 2304848
12	FILLER, WRAPPER (GREY)
13	MAY W10184886
13	MAY W10184888
13	GRILLE (MIDNIGHT GREY)
14	MAY 489497
15	HINGE TOP, FC
16	MAY W10001250
17	MAY 2304888
18	MAY W10153550
19	MAY 2188735
20	COVER, HINGE (REFRIGERATOR) (GREY)
20	Hinge Cover (FC) (Black)
20	Hinge Cover (FC) (White)
21	MAY 549193
22	MAY W10141645
23	MAY 2155311
24	MAY 489483
25	MAY 2260507
26	MAY 4396841
27	MAY 489500
28	MAY 2260502W
28	CAP, WATER FILTER (GREY)
28	MAY 2260502B
29	LINER (NOT A SERVICEABLE PART)
30	MAY 8281227
31	SCREW
32	Tube, Filter Outlet
33	MAY W10212512
34	Block, Housing Support
35	Button, Filter (Black)
35	BUTTON, WATER FILTER (GREY)
35	MAY 2260503W
