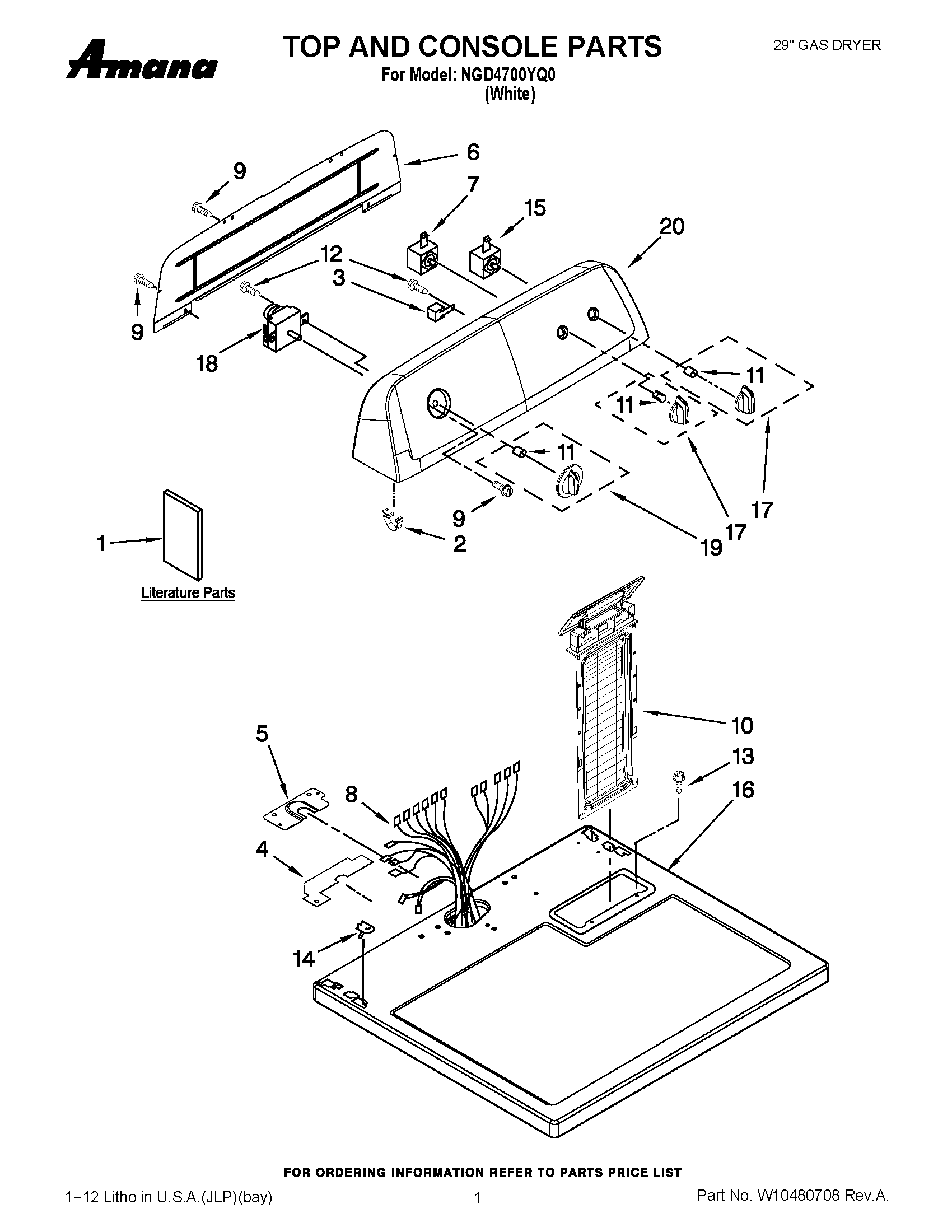

NGD4700YQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1MAY W10185986
1INSTRUCTION INSTALLATION
2MAY 8312709
3MAY 694419
4Seal-Harness
5MAY W10112578
6MAY W10416486
7MAY W10420747
8MAY W10450291
9Screw
10Screen, Lint (White)
11CLIP, SPRING
12MAY 3348629
13SCREW
14Nut, Push-In
15MAY W10446920
16MAY 8559800
17MAY W10453947
18MAY W10436302
19ASSEMBLY, TIMER KNOB (WHITE)
20PANEL, CONTROL (WHITE)
