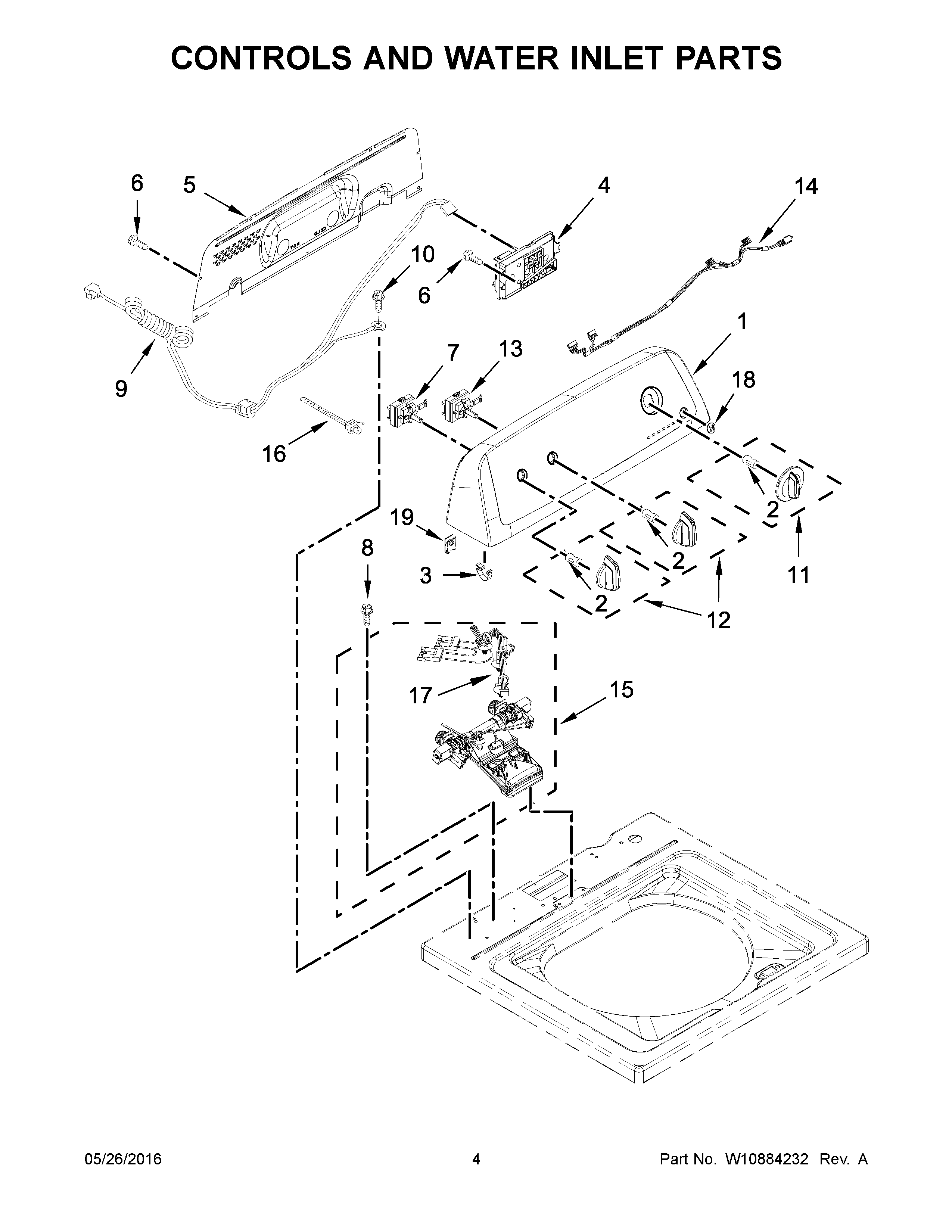

NTW4516FW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	MAY W10866219
2	CLIP, SPRING
3	MAY 8312709
4	MAY W10868064
5	MAY W10409320
6	MAY 1157158
7	MAY W10414398
8	MAY W10213953
9	MAY W10711784
10	Screw, 10-32 x 5/8
11	MAY W10711289
12	MAY W10453947
13	MAY W10414411
14	MAY W10694679
15	MAY W10701459
16	TIE, CABLE
17	MAY W10678671
18	MAY W10726817
19	NUT, "U"
