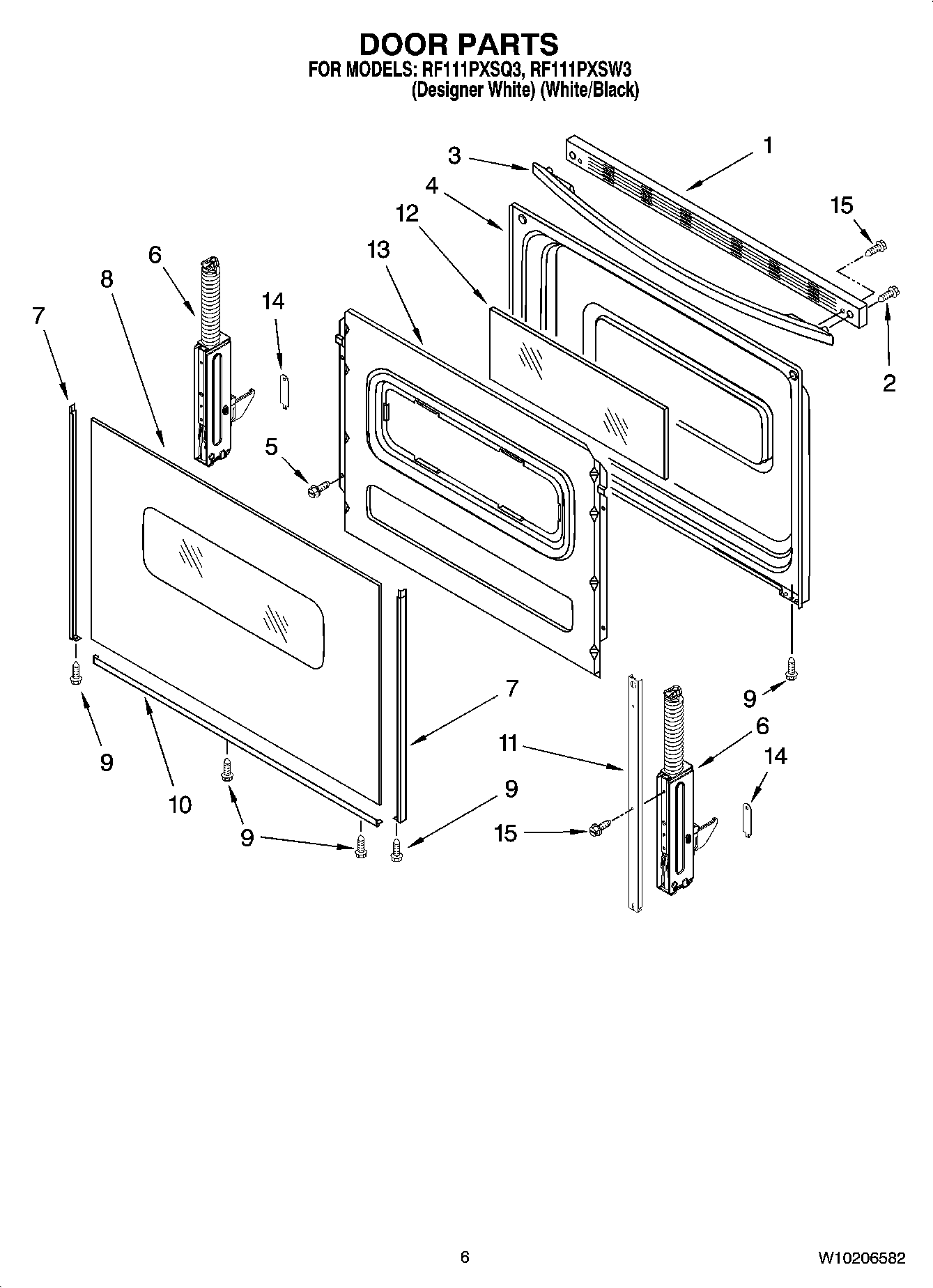

RF111PXSW3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF111PXSW3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF111PXSW3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI121574A
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Grease
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
WPL ARI121573A
W10251755 Whirlpool Wire Harness
WPL ARI121579A
WPL ARI121578A
WPL ARI121577A
WPL ARI121576A
WPL ARI121575A
W11396691 Whirlpool Element Receptacle and Wire Kit
WP3196154 Whirlpool Screw Assembly
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Clip, Ground Wire
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
1W10817433 Whirlpool Vent Trim
1TRIM-VENT
2WP3196164 Whirlpool Screw
3WPW10323589 Whirlpool Door Handle
3W10817434 Whirlpool Door Handle
49761340 Whirlpool Oven Door Liner
5WPW10031790 Whirlpool Screw
6W10347465 Whirlpool Door Hinge
7W10761014 Whirlpool Right Door Trim
7WP8523172 Whirlpool Left Door Trim
7W10761018 Whirlpool Dishwasher Left Door Trim
7WP8523166 Whirlpool Door Trim
8WP9762477 Whirlpool Glass Door
8WP9762476 Whirlpool Door Glass
9W10491985 Whirlpool Screw
10WP8523175 Whirlpool Door Trim Assembly
10WP8523177 Whirlpool Door Trim Assembly
11W11502236 Whirlpool Door Trim
12WP9758163 Whirlpool Door Glass Assembly
139761500 Whirlpool Oven Retainer
149761517 Whirlpool Oven Clip Assembly
15W10777162 Whirlpool Screw
