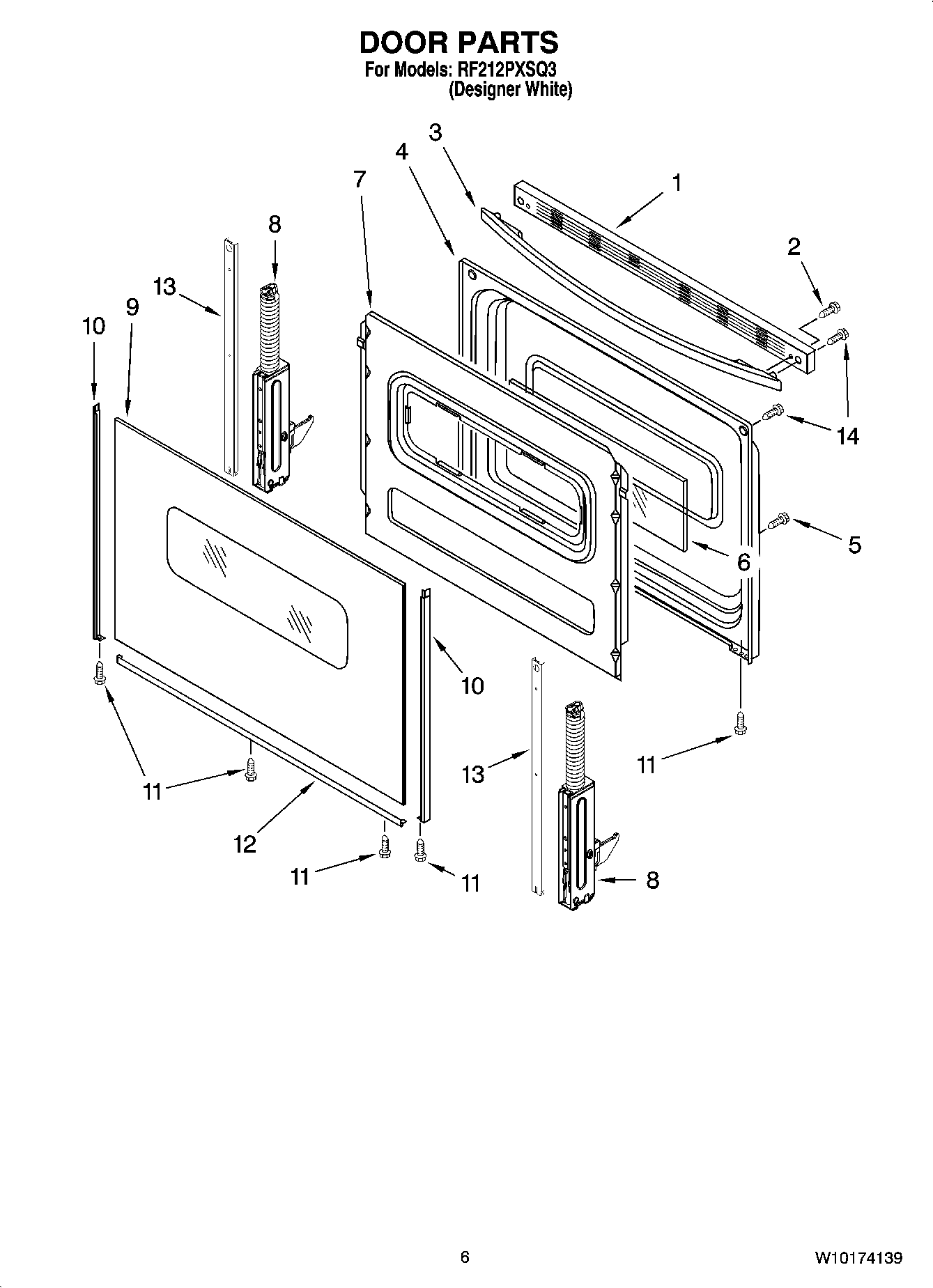

RF212PXSQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF212PXSQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF212PXSQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160211A
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WP3196154 Whirlpool Screw Assembly
WPW10144763 Whirlpool Tie Wire
WPL W10111769
WPL ARI160210A
WPL ARI160209A
WPL ARI160208A
WPL ARI160207A
WPL ARI160206A
WPL ARI160205A
WPL W10111776
WPL W10111770
W11172424 Whirlpool Wire Harness
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Almond (Uncut)
W11447673 Whirlpool Range Tip Anchor
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
Clip, Ground Wire
242831 Whirlpool Oven Wire
WPW10208653 Whirlpool Insulation
1Trim, Top (White)
2WP3196164 Whirlpool Screw
3Handle, Door (White)
49761340 Whirlpool Oven Door Liner
5WPW10031790 Whirlpool Screw
6WP9758163 Whirlpool Door Glass Assembly
79761500 Whirlpool Oven Retainer
8W10347465 Whirlpool Door Hinge
9WP9762476 Whirlpool Door Glass
10WP8523172 Whirlpool Left Door Trim
10WP8523166 Whirlpool Door Trim
11W10491985 Whirlpool Screw
12WP8523175 Whirlpool Door Trim Assembly
13W11502236 Whirlpool Door Trim
14W10777162 Whirlpool Screw
