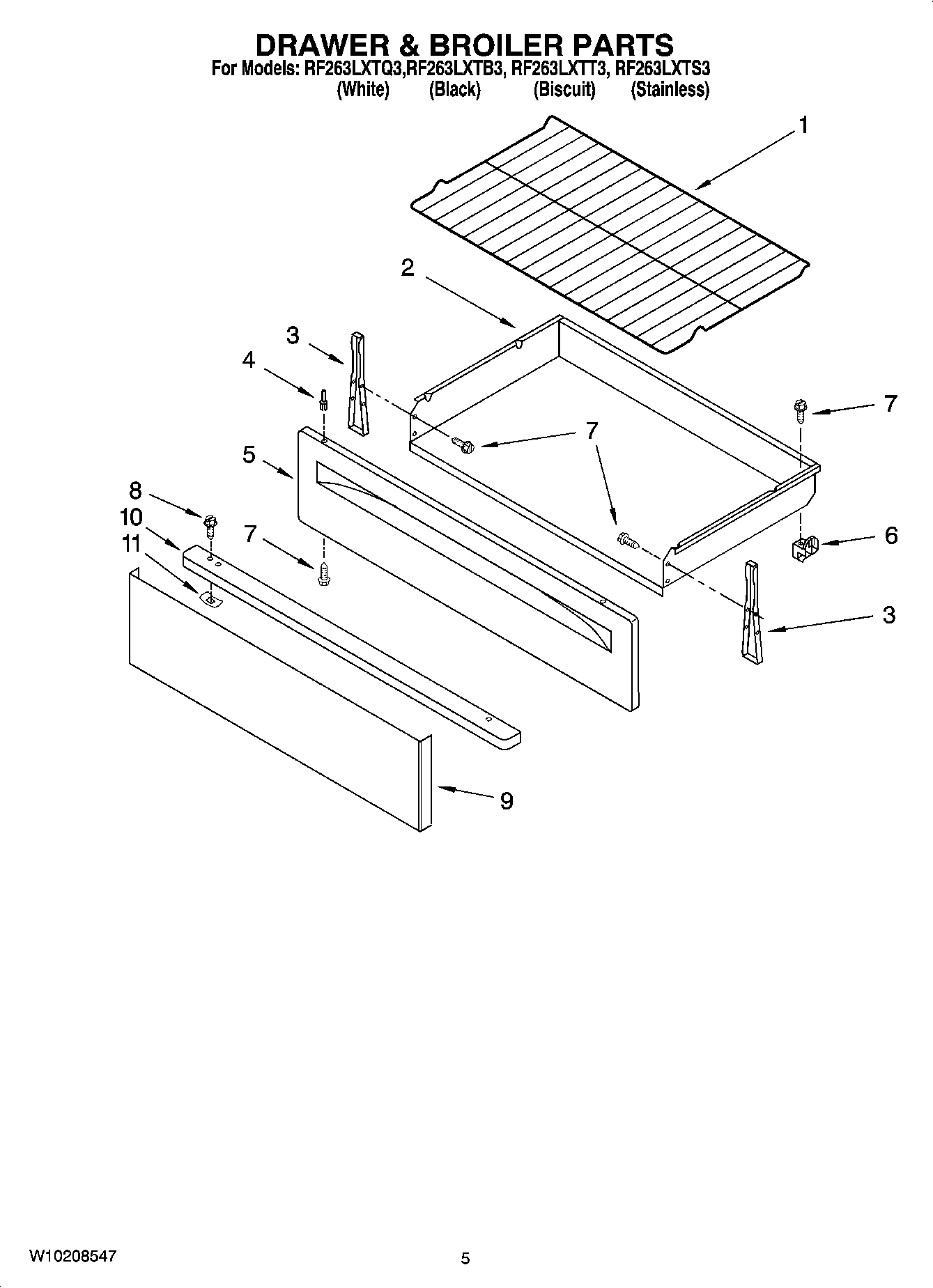

RF263LXTB3 04 – DRAWER & BROILER PARTS

RF263LXTB3 04 – DRAWER & BROILER PARTS

Written by

in

RF263LXTB3 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3WPW10462912 Whirlpool Bracket Mounting
4WP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5W11230476 Whirlpool Drawer Panel
5W11230488 Whirlpool Drawer Panel
5W11219377 Whirlpool Drawer Panel
6WP8053334 Whirlpool Drawer Glide
7WP3400832 Whirlpool Screw
8WPW10031790 Whirlpool Screw
9Panel, Stainless
10Handle (Black)
11WP9781235 Whirlpool Clip
