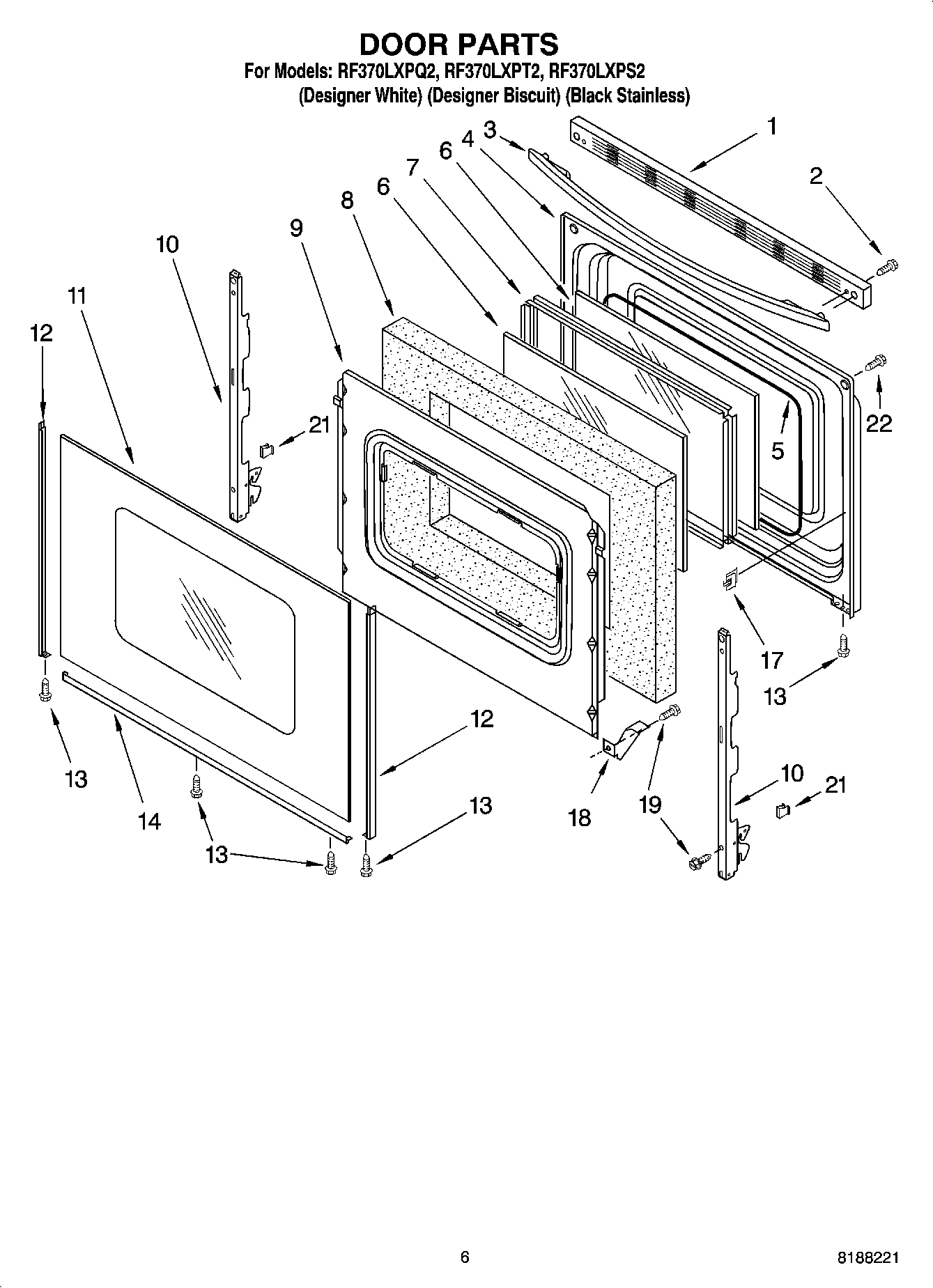

RF370LXPQ2 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
RF370LXPQ2 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI161521A
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI161520A
WPL ARI161519A
WPL ARI161518A
WPL ARI161517A
WPL ARI161516A
WPL ARI161515A
WPL 9761467
WPL 9761457
WPL 4454063
WPL 9758173
WPL ARI161522A
WPL 8524132
Clip, Ground Wire
350930 Whirlpool White Spray Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
FOIL, ALUMINUM OVEN (18“ X 25 )
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
WPW10208653 Whirlpool Insulation
W11447673 Whirlpool Range Tip Anchor
WPL 799832
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
350956 Whirlpool Spray Assembly
350942 Whirlpool Spray Paint
1
WPW10016370 Whirlpool Door Trim
1
Trim, Top (Stainless Model)
1
Trim, Top (Biscuit)
2
WP3196164 Whirlpool Screw
3
WPW10202216 Whirlpool Door Handle
3
Handle, Door (Biscuit)
3
WPW10202217 Whirlpool Door Handle
4
Liner, Door
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
Hinge, Door (Stainless Model)
10
WP8053807 Whirlpool Oven Door Hinge
11
Glass, Outer (Biscuit)
11
Glass, Outer (Stainless Steel)
11
WPW10118454 Whirlpool Door Outer Glass White
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
W10761014 Whirlpool Right Door Trim
12
WP8523166 Whirlpool Door Trim
12
WP8523167 Whirlpool Door Trim Assembly
12
WP8523172 Whirlpool Left Door Trim
12
WP8523173 Whirlpool Door Trim
13
W10491985 Whirlpool Screw
14
WP8523180 Whirlpool Door Trim Assembly
14
WP8523178 Whirlpool Door Trim
14
WP8523175 Whirlpool Door Trim Assembly
17
Clip, Glass (4)
18
WP3196794 Whirlpool Glass Bracket
19
WP3196175 Whirlpool Screw
21
WP3196925 Whirlpool Clip Assembly
22
WP179051 Whirlpool Screw
←
