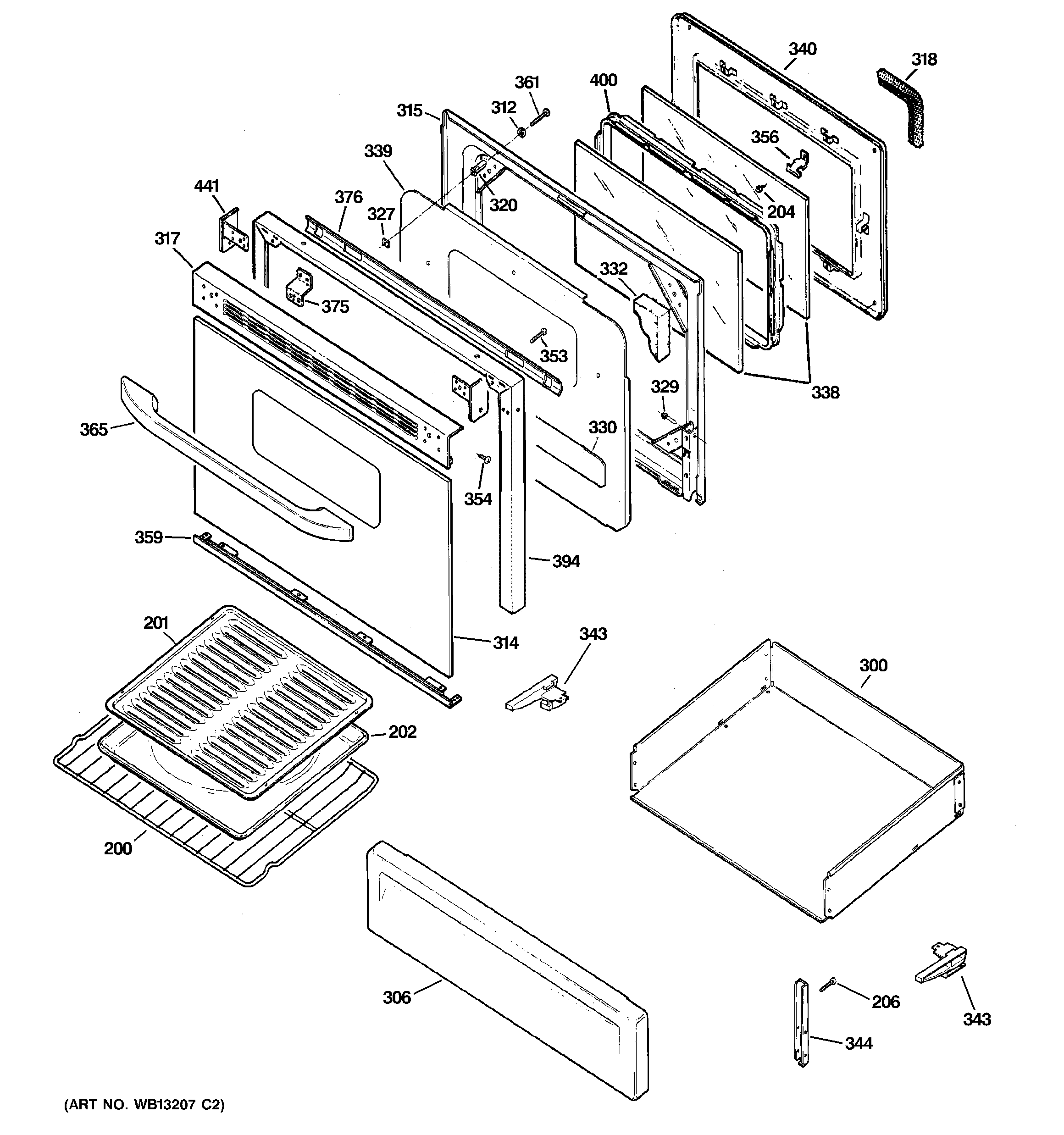

RGB790WEK4WW DOOR & DRAWER PARTS

RGB790WEK4WW DOOR & DRAWER PARTS

Written by

in

RGB790WEK4WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10004
306WB36K10033 GE Oven Drawer Panel (White)
312WB1X119D GE Oven Range Washer
314WB57K5 GE Oven White Glass Door
315GEN WB55K0025
317WB07K10191 GE Oven Vent Trim Door (White)
318WB4K1 GE Oven Gasket Door
320WB2K14 GE Oven Spacer
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB1K67 GE Oven Screw 8-22
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
361WB1X5731D GE Oven Nut Package of 12
365WB15X10048 GE Oven Door Handle White
375WB02K10245 GE Oven Door Bracket
376WB35K23 GE Heater Deflector
394GEN WB35K0033
394GEN WB07K0268
400WB34K10087 GE Oven Window Spacer Assembly
441WB7K266 GE Oven Door End Cap
