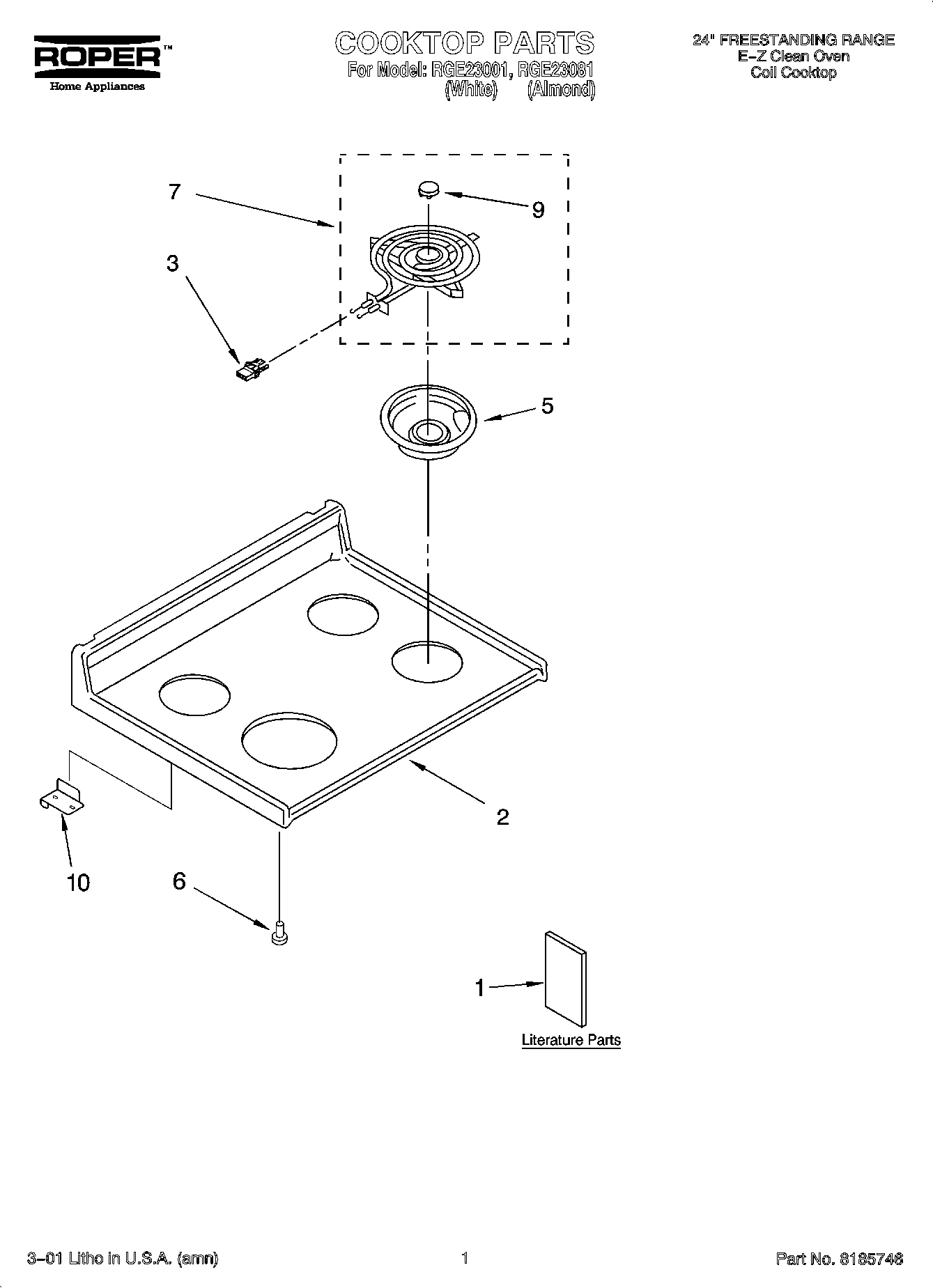

RGE23081 01 – COOKTOP PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	WPL LIT9752767
2	Cooktop, Coil (White)
2	Cooktop, Coil (Almond)
3	Receptacle, Clip
3	WP313808 Whirlpool Screw
5	DRIP BOWL 8" W/HOLE CHROME
5	WPW10196406 Whirlpool 6" Chrome Drip Bowl
6	238614 Whirlpool Bumper Hinge
7	Element, Surface (Coil, 8“ LF-RR)
7	Element, Surface (Coil, 6“ LR-RF)
9	Medallion (4)
10	Screw (2) 8 x 3/8
10	WP4159387 Whirlpool Compactor Screw
10	Bracket, Front (Right)
10	Bracket, Front (Left)
