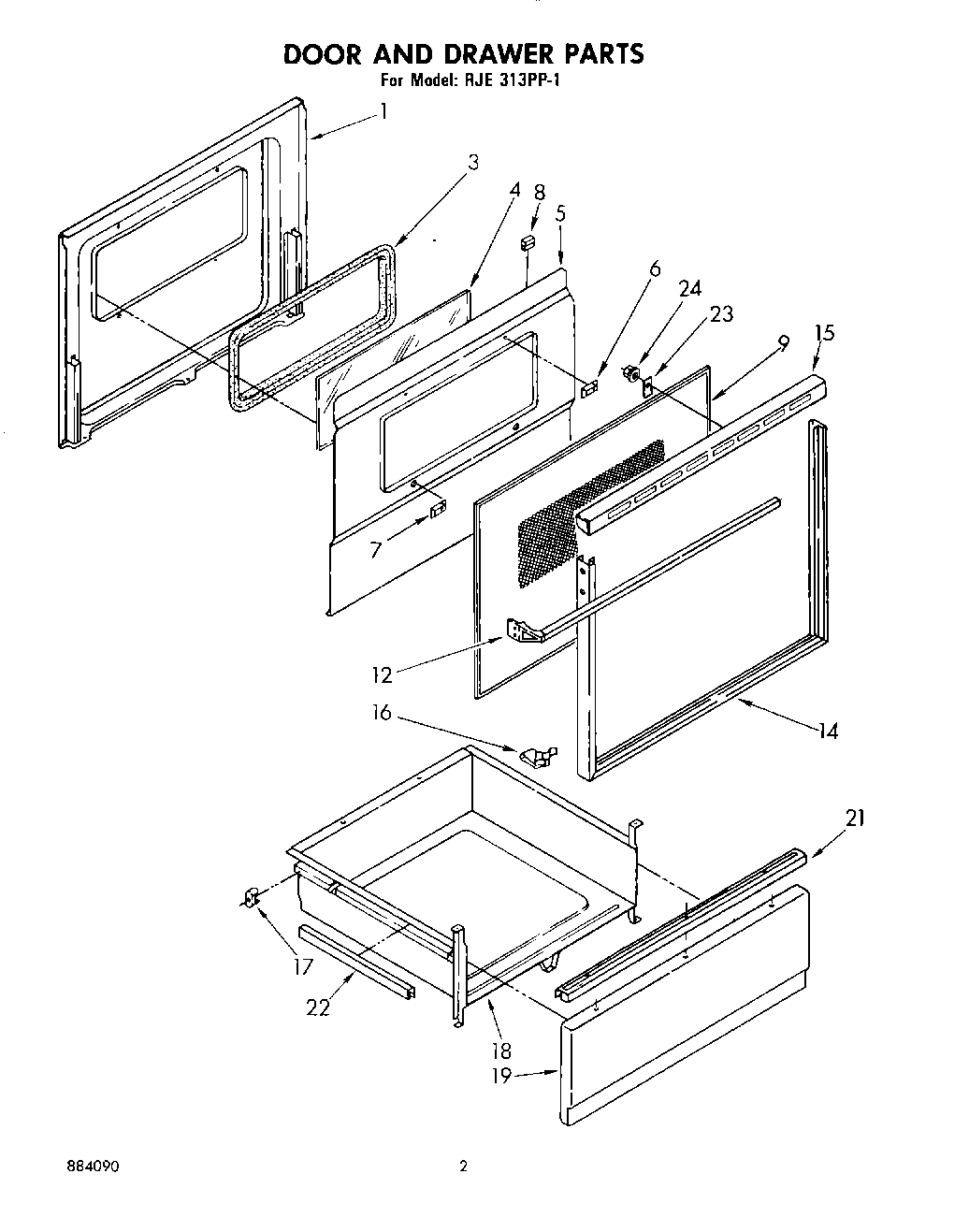

RJE313PP1 02 – DOOR AND DRAWER, LIT/OPTIONAL

Products

PositionProduct
Platinum (Uncut)
1Screw (3)
1Liner, Door
1screw (3)
3seal, pano glass
4glass, inner 30“
5baffle, insulation
7spacer, insulation baffle (4)
8Channel, Rubber (4)
9Glass, Outer
12WP355515 Whirlpool Screw
12Handle, Oven Door
14frame, door 30“
15Top, Door Frame
16clip, glass (10)
17Screw, 10A x 1/2 (2) (Black)
17Glide, Rear (2)
18Drawer, Utility
19WP488787 Whirlpool Refrigerator Screw
19Panel Drawer (Black)
21Handle, Drawer
21WP488627 Whirlpool Refrigerator Screw
22Protector, Drawer (2)
23hold down, glass (2)
24Paint, Spray (13 Oz.) (Platinum)
24WPL 310595
24Wire, 25“ Roll (White 14 GA.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24WPW10208653 Whirlpool Insulation
24WPL 312718
24WP90296 Whirlpool Clip
24WPL 308500
2472113 Whirlpool Touch-Up Paint
241
24Wire (14 Ga. 200 c Brown)
24Wire (12 Ga. 150 c Black)
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
2418 Ga. 80~c Rating (Red)
24Wire (14 Ga. 150 c Blue)
24Grease
24WPL 799351
24242831 Whirlpool Oven Wire
24WPL 884090
