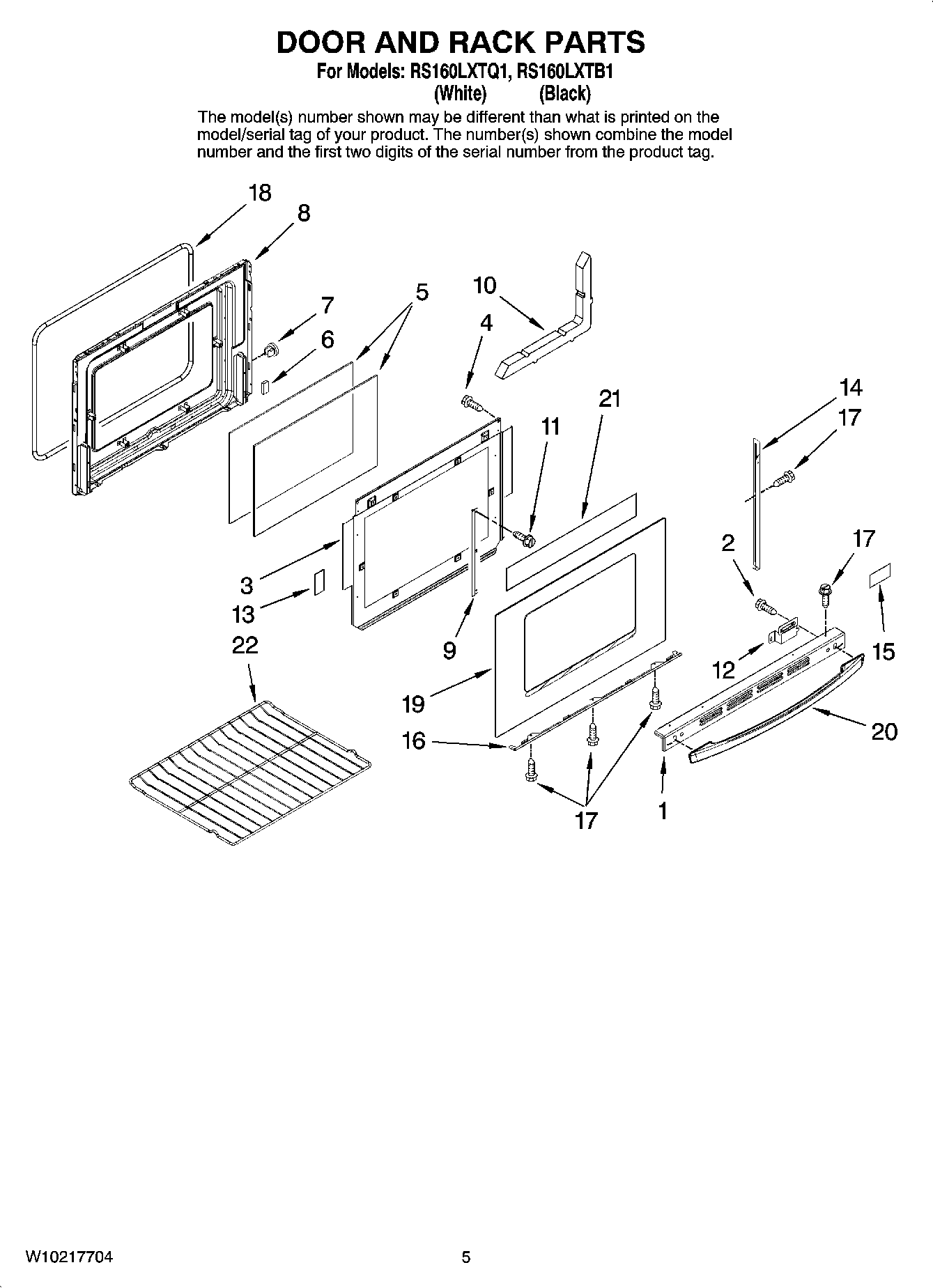

RS160LXTB1 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

RS160LXTB1 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RS160LXTB1 04 – DOOR AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI123693A
8212471 Whirlpool Oven Paint
Grease
WPL W10166773
WIRING HARNESS PARTS, SCREW, GROUND
8019P013-60 Whirlpool Clip
5700P822-60 Whirlpool Wire Harness
Harness, Sensor
WPL ARI123694A
5171P556-60 Whirlpool Wire Harness
WIRING HARNESS PARTS (Harness, Wire (Coil LT))
WPL 74010892
WPL ARI123690A
WPL ARI123691A
WPL ARI123692A
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
FOIL, ALUMINUM OVEN (18“ X 25 )
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
WPW10208653 Whirlpool Insulation
WPL 799832
1Trim, Door Top (Black)
1WP3608F141-71 Whirlpool Door Trim
2WP74006515 Whirlpool Washer Screw
33601F373-51 Whirlpool Baffle
4SCREW
574003645 Whirlpool Range Oven Door Inner Glass
6WP74005546 Whirlpool RU Spacer
7WP74001574 Whirlpool Snap Nut
8Liner, Door
93801F886-51 Whirlpool Mounting Bracket
10Insulation, Door
11WP90767 Whirlpool Screw
123801F832-45 Whirlpool Bracket
123801F831-45 Whirlpool Bracket Assembly
13Tape, White
14WP3608F116-71 Whirlpool Door Trim
14WP3608F117-71 Whirlpool Door Trim
14WP3608F116-70 Whirlpool Door Trim
14WP3608F117-70 Whirlpool Door Trim
15BADGE
16Trim, Door Bottom (Black)
16WP3807F708-71 Whirlpool Support
17W10828565 Whirlpool Screw
17WP98008544 Whirlpool Screw Assembly
18Seal, Door
19Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
19Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (White)
20Handle, Door (Black)
20Handle, Door (White)
21WPL 74003664
22Rack, Oven (2)
