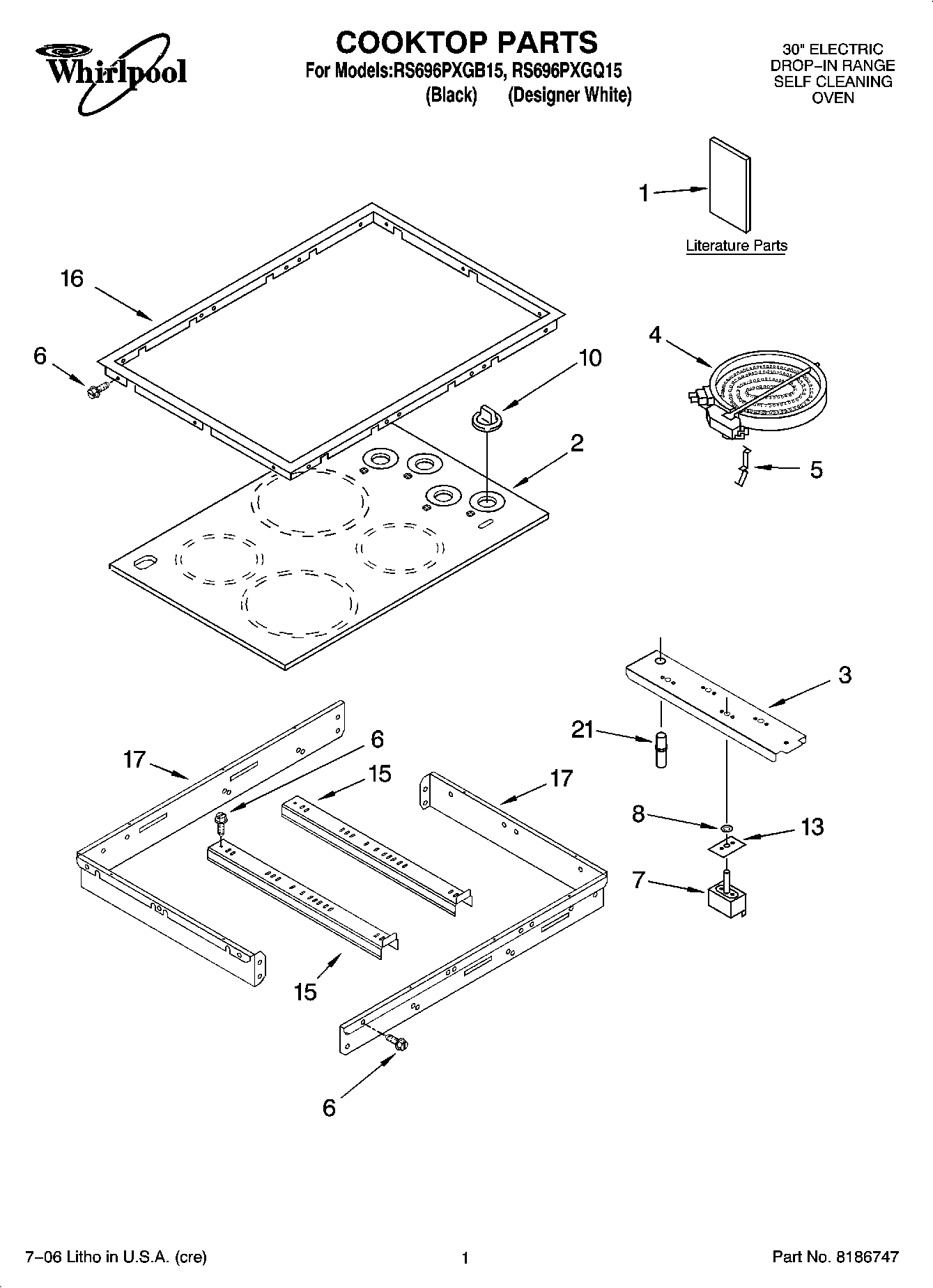

RS696PXGB15 01 – COOKTOP PARTS

RS696PXGB15 01 – COOKTOP PARTS

Written by

in

RS696PXGB15 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Safe Cooking Tips
1Safe Cooking Tips (French)
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Use & Care Guide
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
3Bracket, Switch Mounting
4W10823711 Whirlpool Surface Element Left Front and Right Rear
4W10823696 Whirlpool Radiant Surface Element
4W10823698 Whirlpool Surface Element Right Rear
59759094 Whirlpool Spring
6WP3196557 Whirlpool Screw
7WP3191049 Infinite Switch Left Rear Right Front
7WP3191050 Whirlpool Infinite Switch
7WP4454541 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
10WP3196231 Whirlpool Knob
10WP3196232 Whirlpool Knob
138285469 Whirlpool Oven Seal Switch
15Rail, Element (3)
16Trim Ring, Cooktop (White)
16Trim Ring, Cooktop (Black)
17Frame, Cooktop (2)
21Light, Indicator
