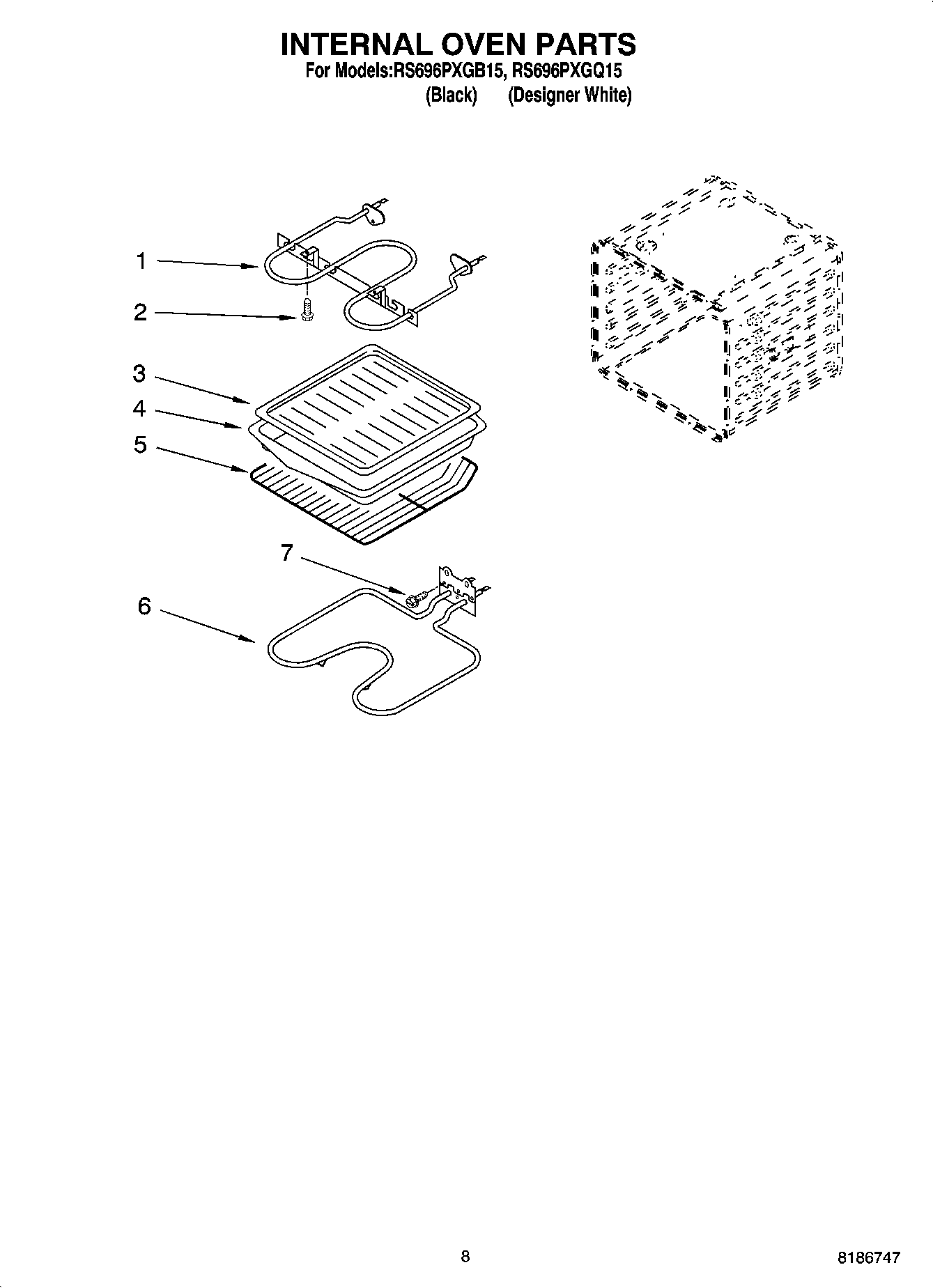

RS696PXGQ15 06 – INTERNAL OVEN PARTS, OPTIONAL PARTS

Products

Position	Product
	Miscellaneous
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	261900 Whirlpool Microwave Spray
	Conduit
	WPL 8301876
	Harness, Wire (Infinite Switch)
	Harness, Wire (Burners)
	ADHESIVE
	SPLICING WIRES–25FT. LENGTH
	WIRING HARNESS PARTS
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	4450800 Whirlpool Oven Screw
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	72032 Whirlpool Touch Up Paint Black
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	Spacer, Harness
	242831 Whirlpool Oven Wire
	285006 Whirlpool Spray
	WP261869 Whirlpool Microwave Paint
	WPW10339879 Whirlpool Wire Tie
	WP4448950 Whirlpool Screw
1	WP9760771 Whirlpool Electric Oven Broil Element
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	WPW10179152 Whirlpool Rack Oven
6	WPW10207397 Whirlpool Oven Bake Element
7	WP4449154 Whirlpool Screw
