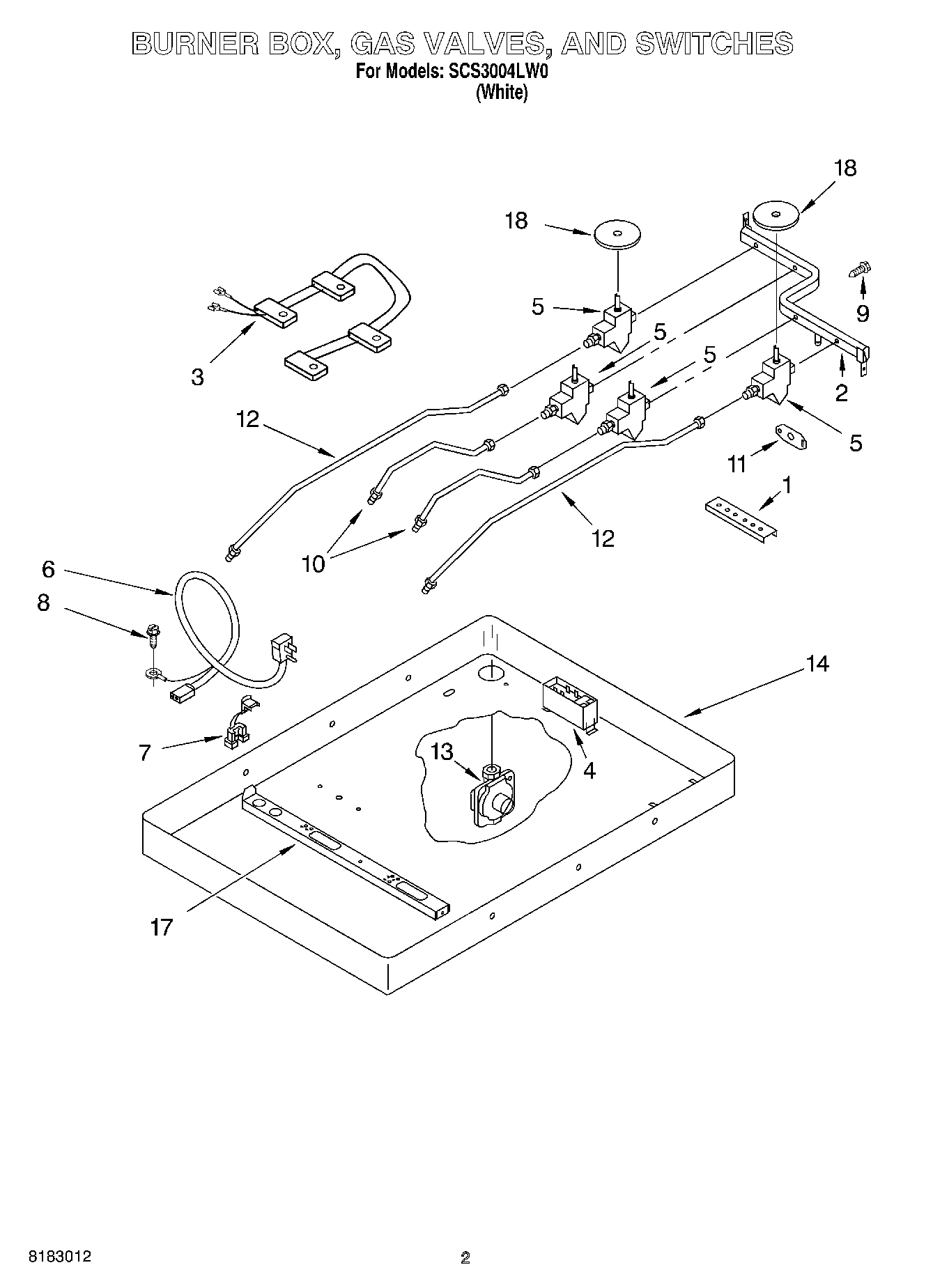

SCS3004LW0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
WP3192741 Whirlpool LP Conversion Kit
Insert Sheet – Wiring Diagram
Hardware Kit (Mounting)
Literature Parts (Installation Instructions)
Use And Care Guide
LP Conversion Instructions
Wiring Diagram
Safer Cooking Tips
1WP3400093 Whirlpool Screw
18186533 Whirlpool Hardware
29759354 Whirlpool Oven Manifold Pipe
2W10491985 Whirlpool Screw
3WP3191334 Whirlpool Wire Harness
4WP12990527 Whirlpool Microwave Screw
4WPW10110491 Whirlpool Spark Module
5Valve, Burner (Large (3))
5Valve, Burner (Small (1))
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9Bolt (Gas Valve)
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
123191320 Whirlpool Oven Gas Tubing
13Regulator, Pressure
144456780 Whirlpool Oven Burner Box
17WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
