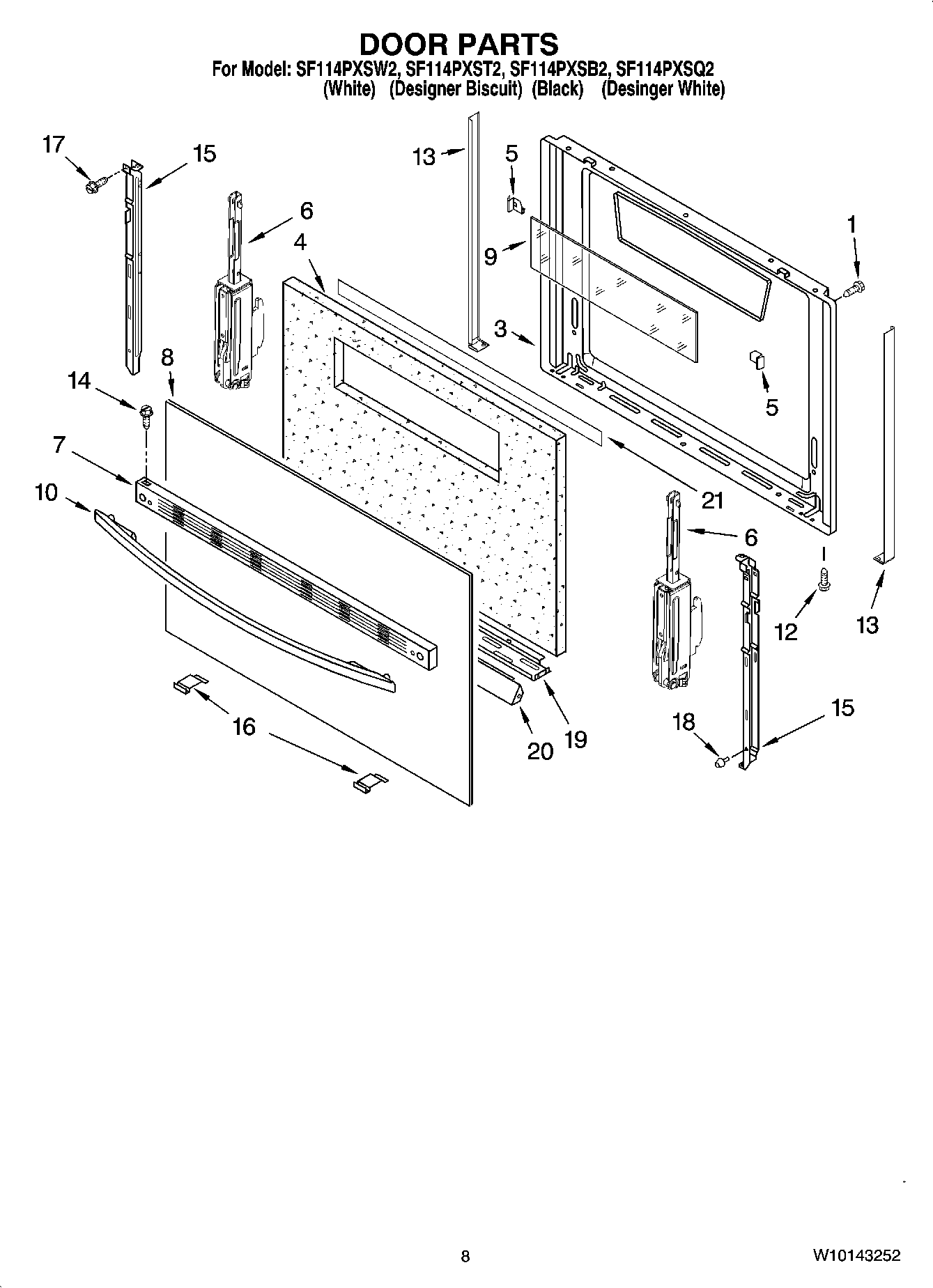

SF114PXSQ2 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

SF114PXSQ2 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

SF114PXSQ2 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
W10141515 Whirlpool Wire Harness
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL ARI128963A
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
Grease
WPL 8316781
WPL ARI128962A
98015022 Whirlpool Bushing Assembly
WP3391018 Whirlpool Wire Tie
CLIP, WIRE
WPL ARI128961A
WPW10477747 Whirlpool Anchor Tip
WPL ARI128960A
WPL ARI128959A
W10142307 Whirlpool Wire Harness
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
799344 Whirlpool Refrigerator Paint
WPL ARI128964A
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
549193 Whirlpool Refrigerator Power Clamp
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPW10208653 Whirlpool Insulation
WPL 799832
1SCREW
398010182 Whirlpool Door Liner
4Insulation, Door
598004953 Whirlpool Clip
598004952 Whirlpool Oven Clip
6Hinge, Door (Right)
7WHITE
7Trim, Top Door (Black)
7Trim, Top Door (Biscuit)
8Panel, Door
8Panel, Door (Black)
8Panel, Door (Biscuit)
9WP98006801 Whirlpool Door Glass
10WP98017790W Whirlpool Door Handle
10Handle, Oven Door (Black)
10Handle, Oven Door (Biscuit)
12WP59002061 Whirlpool Microwave Screw
13Side Trim, Door (2) (Black Left)
1398016795T Whirlpool Door Trim
1398016787T Whirlpool Door Trim
13Side Trim, Door (2) (Black Right)
13Side Trim, Door (Right Hand)
13Side Trim, Door (Left Hand)
14WP98008545 Whirlpool Screw
14Screw (Biscuit)
14WP98008544 Whirlpool Screw Assembly
1598004564 Whirlpool Oven Retainer
1598004629 Whirlpool Oven Retainer
16WP98010187 Whirlpool Range Door Trim
16WP98010185 Whirlpool Door Trim
1698010184 Whirlpool Oven Door Trim
17WP3400805 Whirlpool Screw Assembly
1898004227 Whirlpool Oven Bumper
1998004938 Whirlpool Oven Retainer
20Insulation, Retainer-Bottom
2198012220 Whirlpool Oven Door Pin
21Retainer, Upper (2)
21Following Parts Not Illustrated
