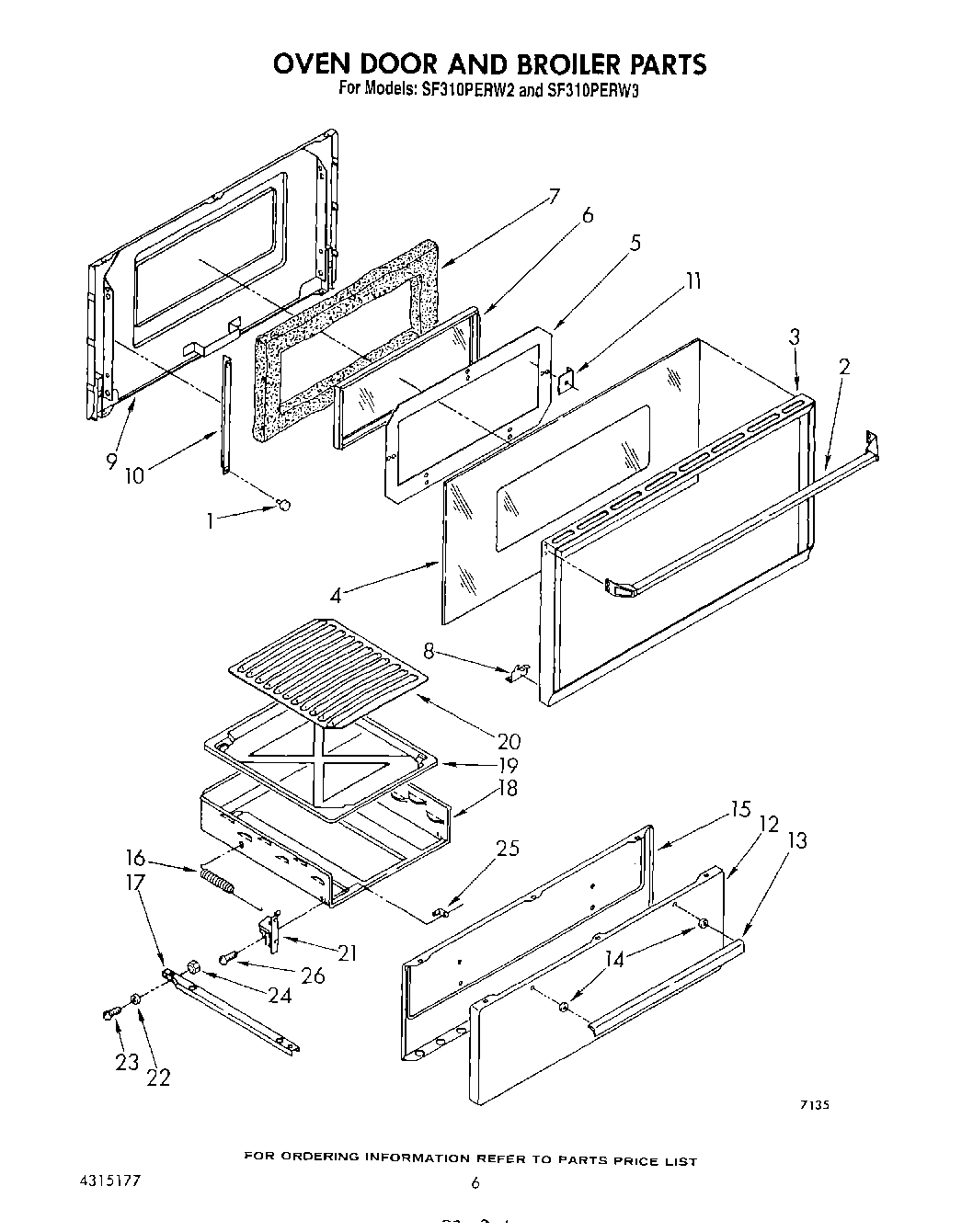

SF310PERW3 05 – OVEN DOOR AND BROILER

SF310PERW3 05 – OVEN DOOR AND BROILER

Written by

in

SF310PERW3 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Handle, Door
2Screw, 8-18 X 3/8 (4)
3Frame, Door
4Glass
5Baffle
6Window Assy
7Insulation
8SCREW
8Speed Clip (4)
8Support, Glass (Right Hand)
8Support, Glass
9Liner, Door
10Support, Glass (2)
11Plate (2)
12Panel, Broiler (White)
12Panel, Broiler (Almond)
13Handle
13Screw, 10-12 X 5/8 (2)
13Washer (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21W10080180 Whirlpool Nut
21WP308685 Whirlpool Microwave Screw
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
22Roller (2)
23Pin, Roller (2)
25Plate (2)
26Screw (2)
